Description

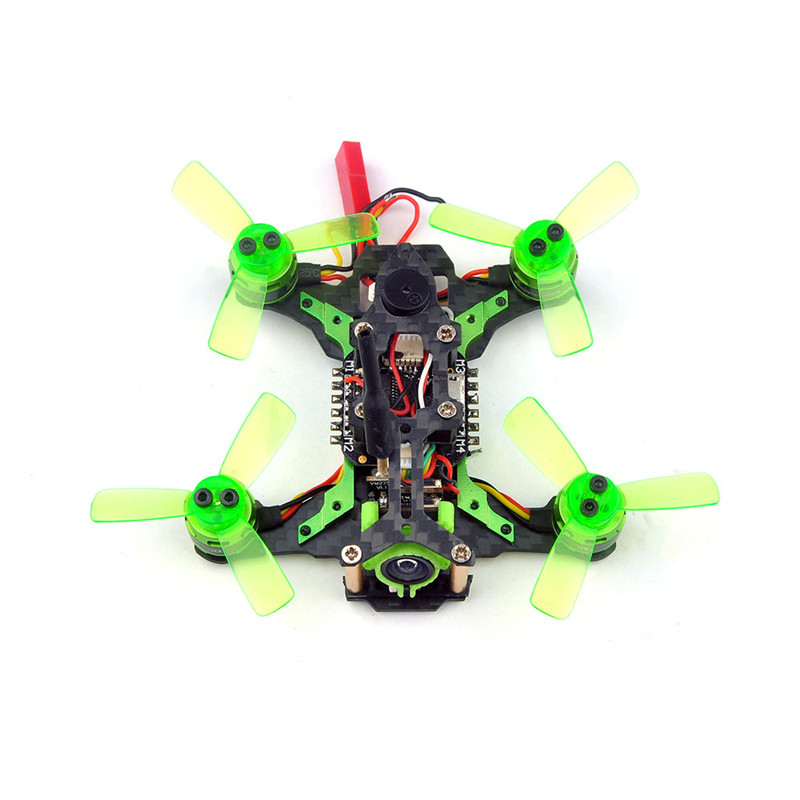

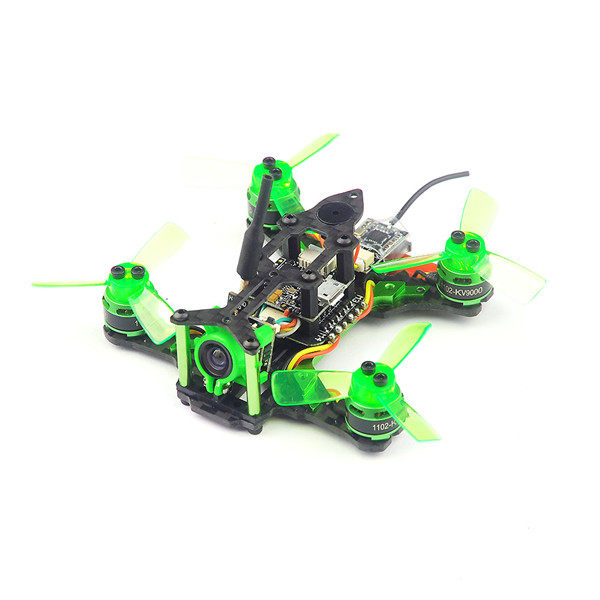

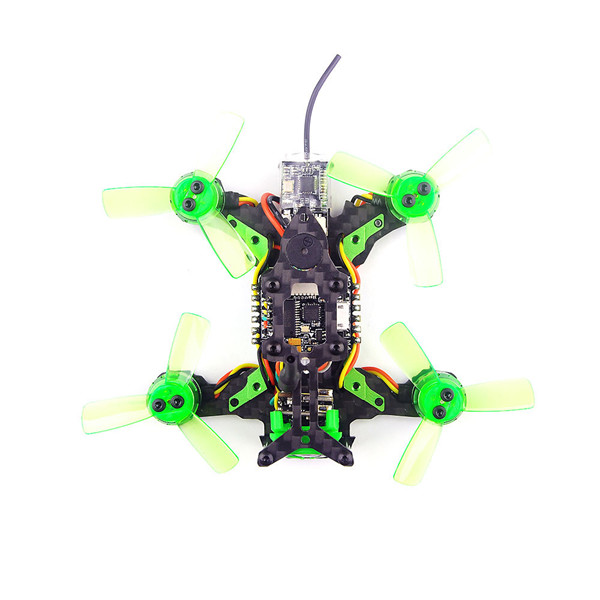

Happymodel Mantis85 85mm FPV Racing Drone RTF w/ Supers_F4 6A BLHELI_S 5.8G 25MW 48CH 600TVL
Notes: the RTF version comes with Flysky FS-I6 remote controller MODE2 left throttle.
Specification(user manual):
Brand name: Happymode
Item name: Mantis85 85mm FPV Racing Drone
Wheelbase: 85mm
Size:100mm*100mm*25mm
Weight: 49g( battery not include)
Flight controller: Supers_F4 Flight controller built-in OSD
Motor: Happymodel SE1102 KV9000
Propeller: 48mm 3-blade propeller
Camera: 600TVL HD CMOS 1/4inch
VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter
Remote controller: Flysky FS-I6, MODE2 left throttle
Battery: 7.4V 400mah 30C lipo battery
OSD: Betaflight OSD
Firmware of Flight controller: Betaflight 3.1.7
Flight time : 4minutes
Buzzer Ready
Flight controller:
Size: 20mm*20mm
Mount hole: 16mm*16mm
Processor: STM32F405RGT6 MCU
Sensor: SPI Sensor MPU6000
Built-in Betaflight OSD ( Batt voltage, RSSI, Fly mode , Flytime, Craft name etz.)
Firmware version: Betaflight 3.1.7 Dshot600 ready
Target: OmnibusF4SD
ESC:
Size:25mm*29mm
Mount hole: 16mm*16mm
Firmware version: BLHELI_S 16.5
BB2, 48MHZ Chip
Lipo Battery: 1-2S
Con. Current: 6A
Pea.k Current: 10A (5S)
Programming: YES
Betaflight passtrough ready
Dshot600 ready(Default)
Support oneshot42 oneshot125 Multishot Dshot

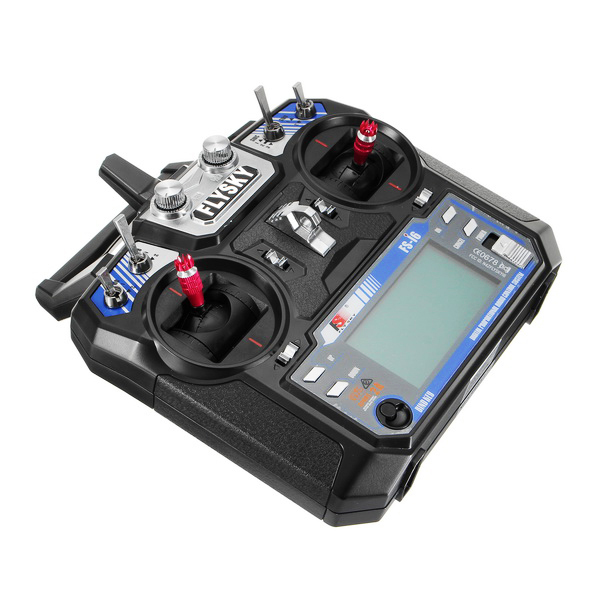

Flysky FS-I6:
Channels: 6 Channels
Model Type: Glider/Heli/Airplane
RF Rang.e: 2.40-2.48GHz
Bandwidth: 500KHz
Band: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: Less than 4.2V
DSC Port: PS2
Output: PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Transmitter Weight: 392g
Package Weight: 628g
Transmitter Size: 174x89x190mm
Package Size: 23.5×21.2×10.6cm
Power: 6V 1.5AA*4 (Not Included)
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
On-line update: Yes
Color: Black
Certificate: CE0678,FCC
Model Memories: 20
Control Rang.e: 500m
Features:
-Full carbon fiber glass and CNC aluminum alloy structure
-Extremely light and Solid Frame
-More powerful SE1102 motor
-More powerful STM32F4 MCU + BLHELI_S ESC make your Operating feel more stability and silky

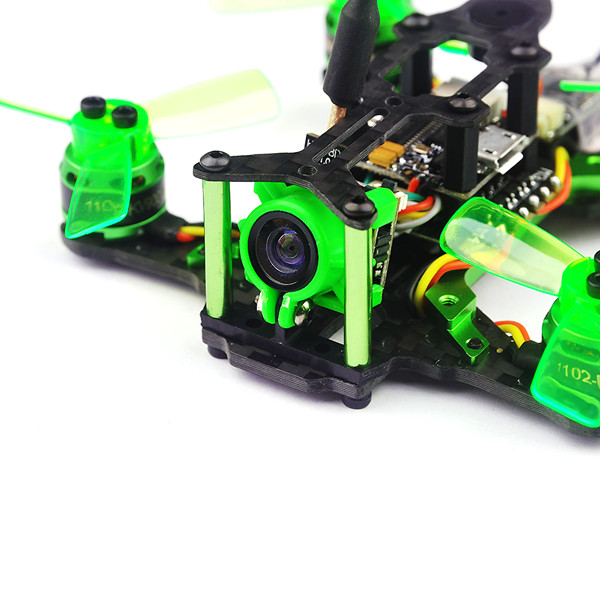

-Adjustable Angle of Camera
-Jaw-dropping flight performance
-Betaflight support
-Ac.ro mode / Air mode /Angle mode support
-Built-in OSD(Using F4 MCU controls OSD over SPI bus in DMA mode)
-OSD Configuration has been include in BETAFLIGHT GUI
-Radio Stick to control PID Tunes
-BLEHELI_S pass-through ready
-Frsky Mode :Telemetry RSSI Output ready
Package included:
,
,
,
,
,
,
,
,
,
