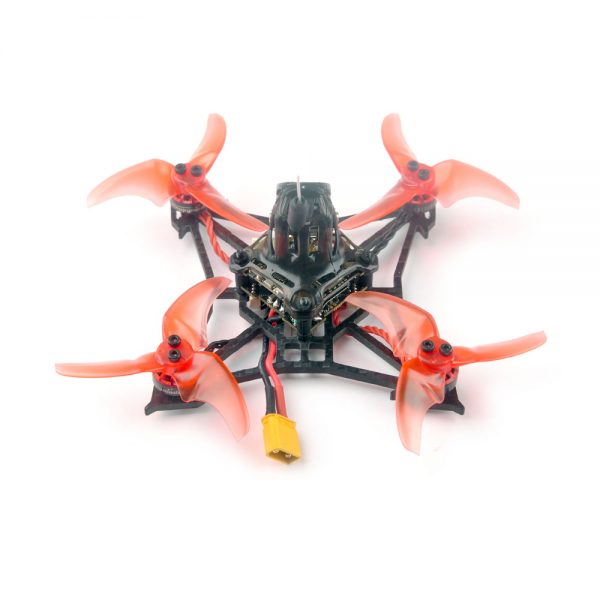

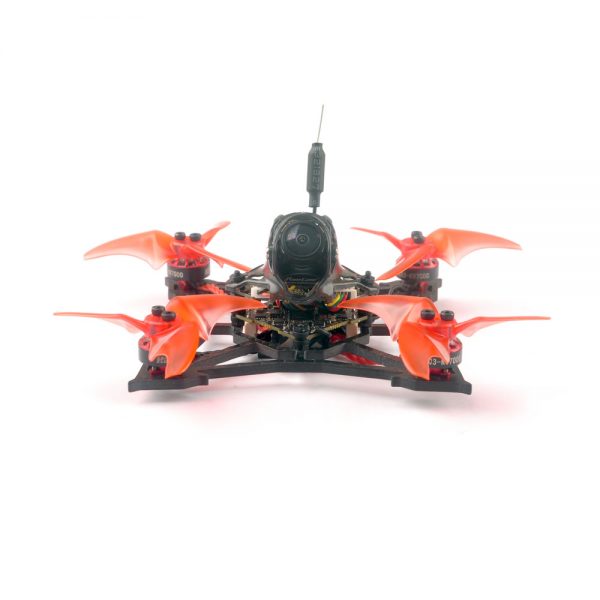

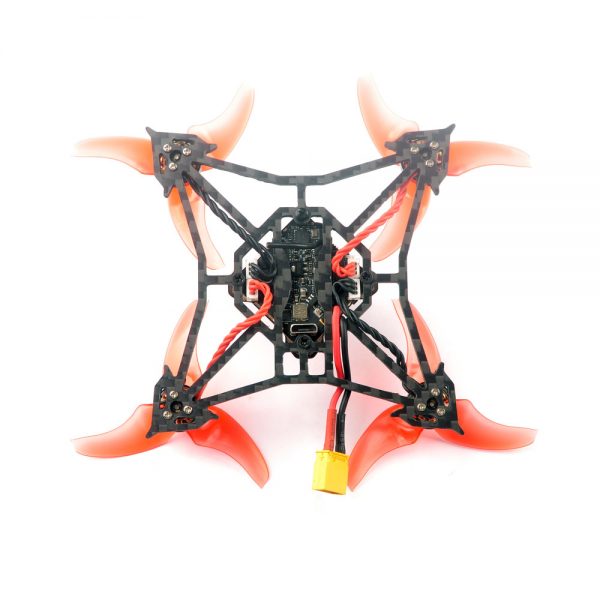

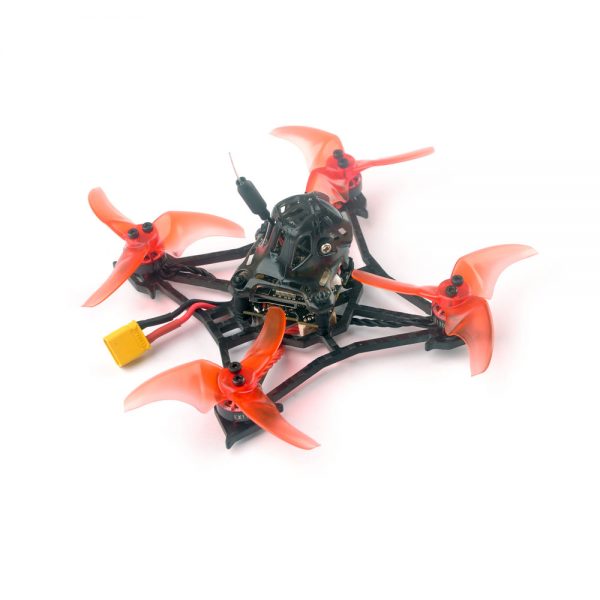

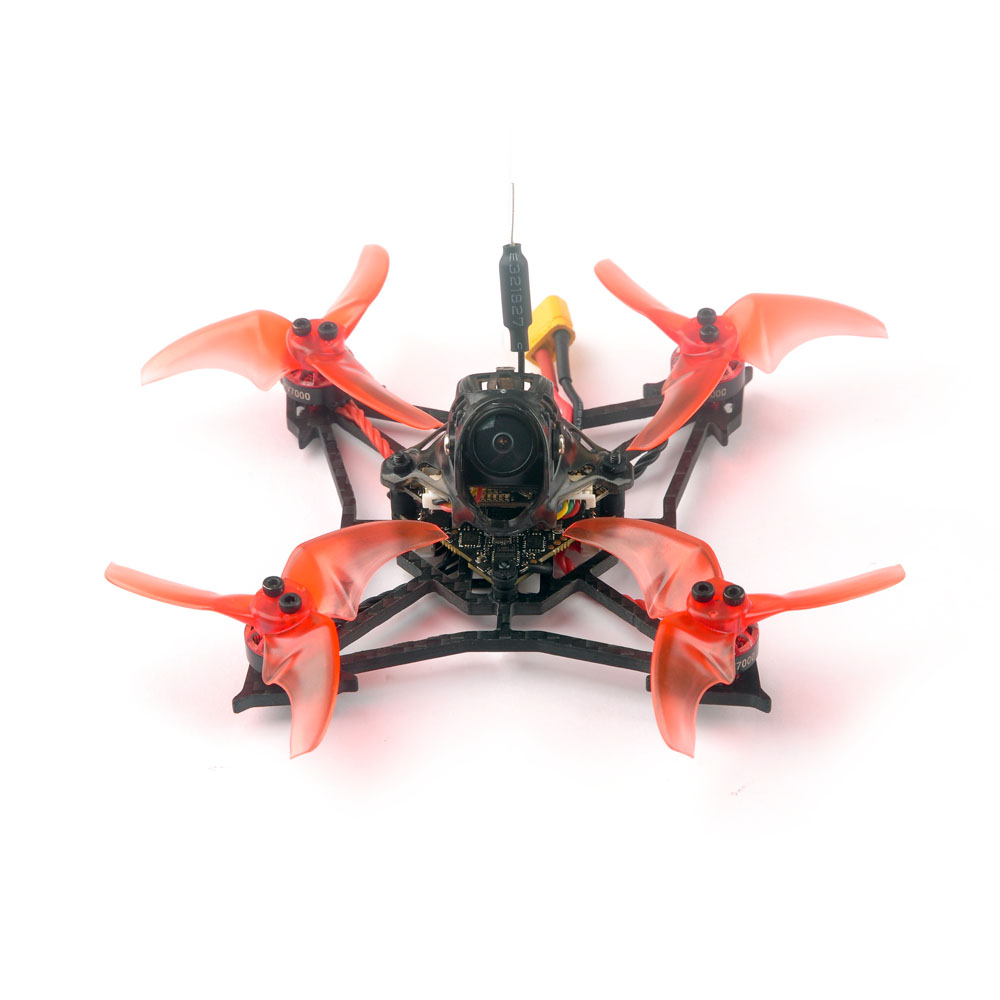

Happymodel Larva X 100mm Crazybee F4 PRO 2-3S 2.5 Inch FPV Racing Drone BNF w/ Runcam Nano2 Camera
Notices: Because Emax can’t provide Avan rush propellers in time,
so will send it w/ HQPROP T2.5*2.5*3 propellers and EMAX Avan rush propellers randomly .
so will send it w/ HQPROP T2.5*2.5*3 propellers and EMAX Avan rush propellers randomly .
Click here to buy spare parts togther.
Specification:
Brand Name: Happymodel
Model: Larva X
Item Name: 100mm 2-3S 2.5 Inch FPV Racing Drone
Wheelbase: 100mm
Size: 88x88x45mm (without propellers)
Weight: 50g (without battery)
Drone Version: BNF ( With Receiver & Without Battery)
| Happymodel EX1103 7000KV Motor |
Mode: EX1103
KV options: KV7000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5x16mm
Weight:3.7g
|
| Crazybee F4 Pro V3 Flight Controller |
(Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS
(No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI connection)
Board Size: 28.5x 28.5mm
Power Supply: 2-4S battery input (DC 7-17V)
Built-in 10A (each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection
|
| Onboard 10A 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Con. Current: 10A
Burst Current: 12A (5S) Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600
|
| Onboard Frsky D8 Receiver Version ( Internal Frsky NON-EU receiver Version) |
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
|
| Internal Flysky Receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
| External TBS Crossfire Receiver version | CRSF Protocol , Official TBS transmitter compatible |
| External DSMX Receiver version |
Frequency range: 2.403-2.479Ghz
Input power: 3.3V — 5V
Response time: 22ms / 11ms
Resolution: 1024/2048
Display method: LED
Operating voltage: 3.3V
Working current: 60MA
Size: 18mm*13mm*5mm
Weight: 0.9 g
Antenna length: 30mm
Data format: Serial port
Protocol: DSM2/DSMX
Distance: no ground interference (1 m from the ground ) more than 300m
|
| External Frsky RXSR Receiver version |
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 3.5V~10V
Operating Current:70mA@5V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode
Could support Frsky New ACCST Protocol ( Upgrade firmware)
|
| Happymodel Diamond_VTX |
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna
U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g without antenna
Video Output Size: VGA (640×480)
Video Output format: NTSC
Record video size : 1280×720 @25FPS
TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera
JST SH1.0 5pin for Connect with F3/F4 Flight controller
Compress Format: AVI
|
| Runcam NANO2 FPV Camera |
Model: Nano 2
Image Sensor: 1/3" CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC / PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current : 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: 14x14x16mm ( LxWxH)
|
| Recommend Lipo Battery ( All Version Don't Include) |
Recommend 2S 450mAh Lipo / 3S 300mAh/350mAh/ 450mAh Lipo Battery |
Features:
– New Crazybee F4 PRO V3.0 AIO Flight controller 2-4s Lipo Compatible
– Powerful and smoothly
– Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles
– Camera Angle adjustable
– VTX power switchable 25mw~200mw
– Smartaudio ready , change VTX bands, powers, channels via OSD
– Receiver option: Frsky D8/ Flysky / DSMX / Frsky RXSR/ TBS CRSF
– Diamond VTX Ready
– Compatible both for 2-3S Lipo/LIHV

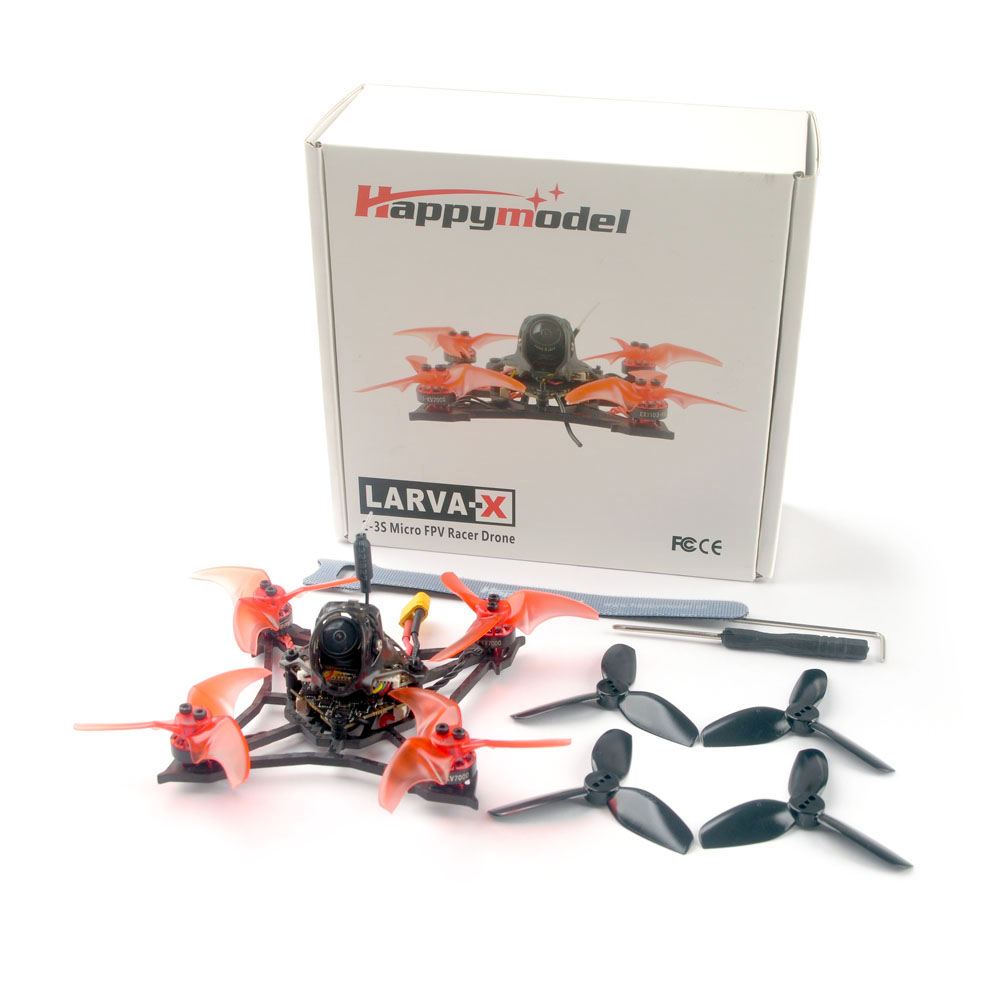

Package Included:
1X Larva X frame
1X Option1: Crazybee F4FR V3.0 PRO FC built-in Frsky NON-EU RX
Option2: Crazybee F4FS V3.0 PRO FC built-in Flysky RX
Option3: Crazybee F4FS V3.0 PRO FC with DSM2/DSMX RX
Option4: Crazybee F4 V3.0 with external Frsky RXSR receiver
Option5: Crazybee F4 V3.0 with external TBS Crossfire Nano RX
4X 1103 KV7000 motor
4X Micro Avan Rush Propeller 2.5 Inch ( 4 CW & 4 CCW)
1X Runcam Nano2 Camera
1X 5.8G 25-200mW VTX
1X Propeller disassemble tool
1X Screwdriver
