Description

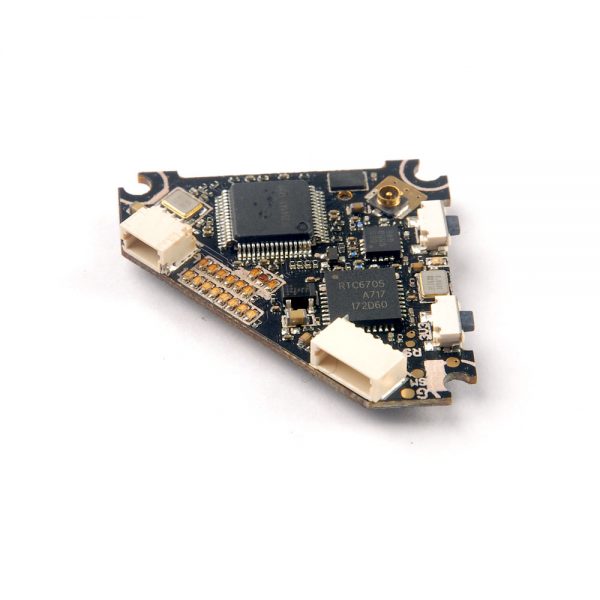

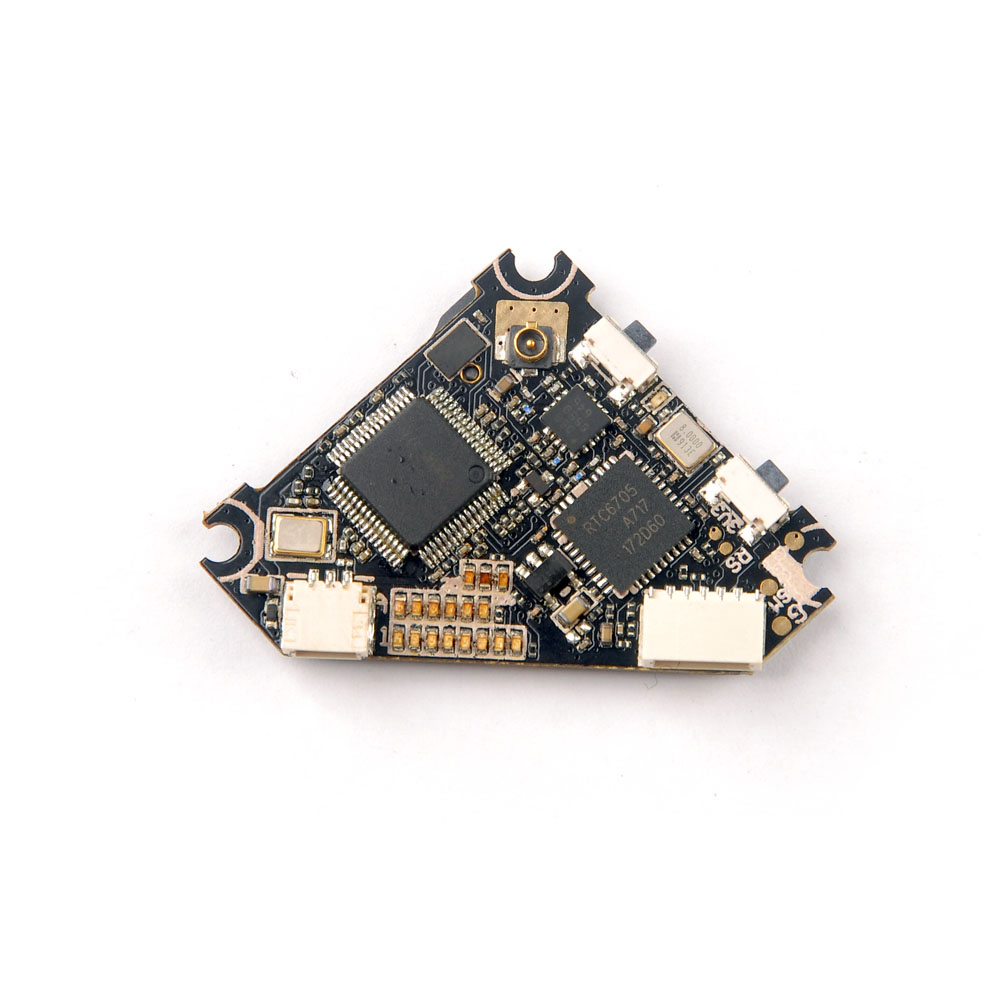

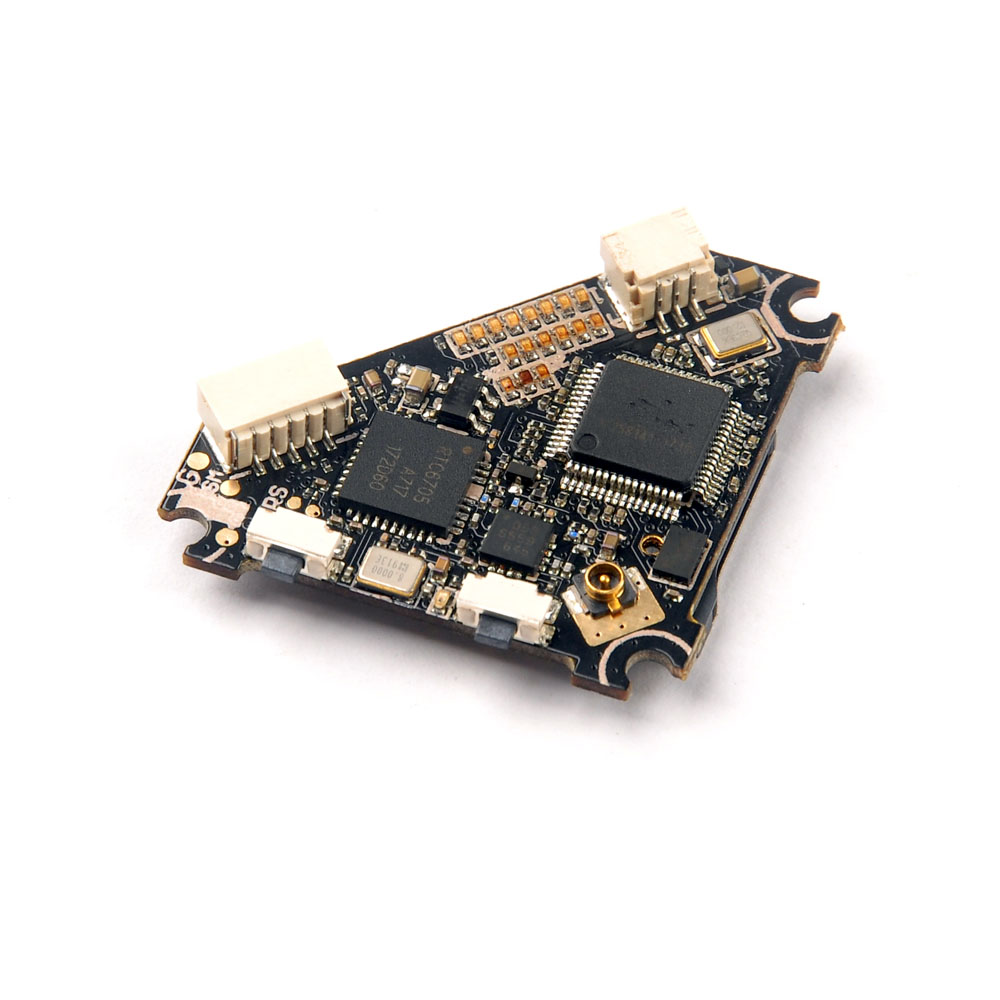

Happymodel Diamond 5.8Ghz 40CH 25/100/200mW Switchable VTX FPV Transmitter with DVR
Specifications:
Brand Name: Happymodel
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna
U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g without antenna
Video Output Size: VGA (640×480)
Video Output format: NTSC
Record video size : 1280×720 @25FPS

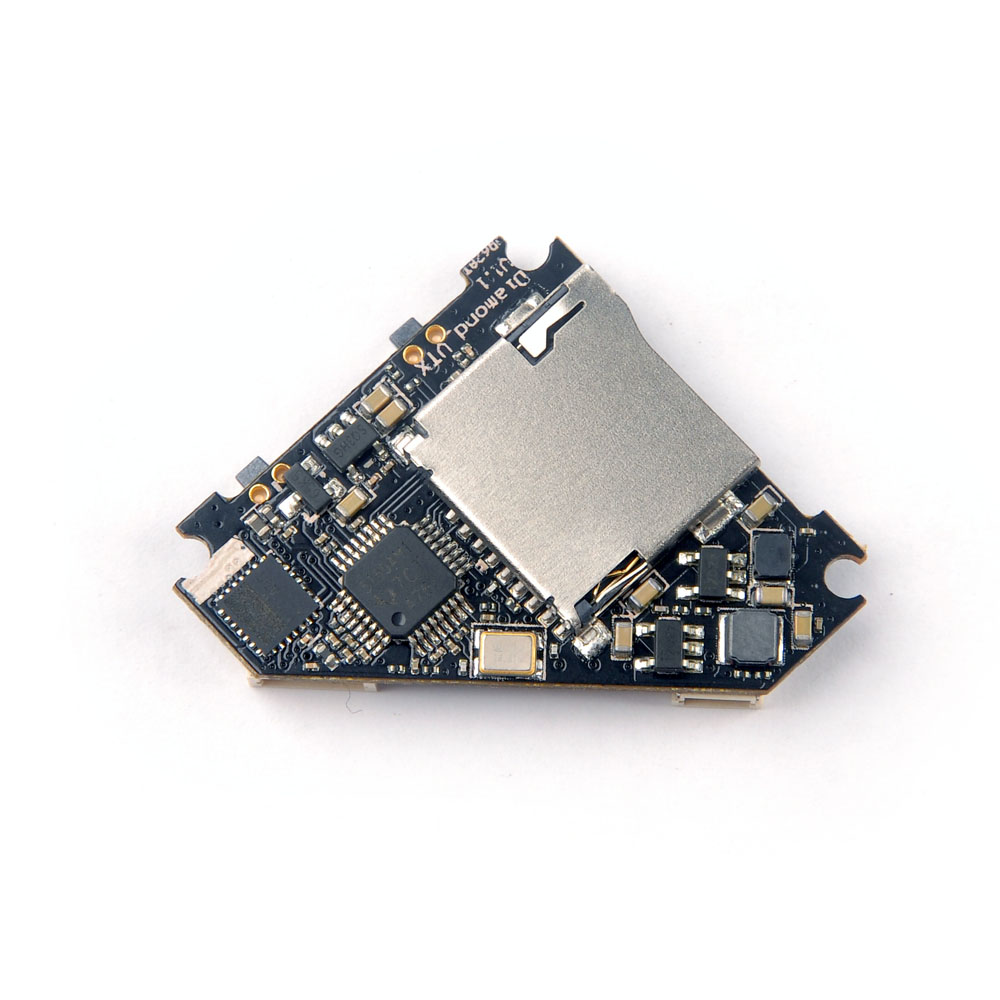

TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera
JST SH1.0 5pin for Connect with F3/F4 Flight controller
Compress Format: AVI
Features:
Short touch the button to Start/Stop Video recorder
The video will split to 2 minutes automatically
Best for upgrade Mobula7 / Eachine Trashcan
Small size , lighter only 3gram and easy to mount in a regular whoop
Built-in DVR(Video size 1280×720)
Auto start when power on
Note: Auto-save when Power off is not support, please remember to press the stop button after landing
Recommended parts to fit the Diamond VTX
Happymodel Mobula7 V2 canopy
CADDX EOS2 camera
Runcam Nano2 camera

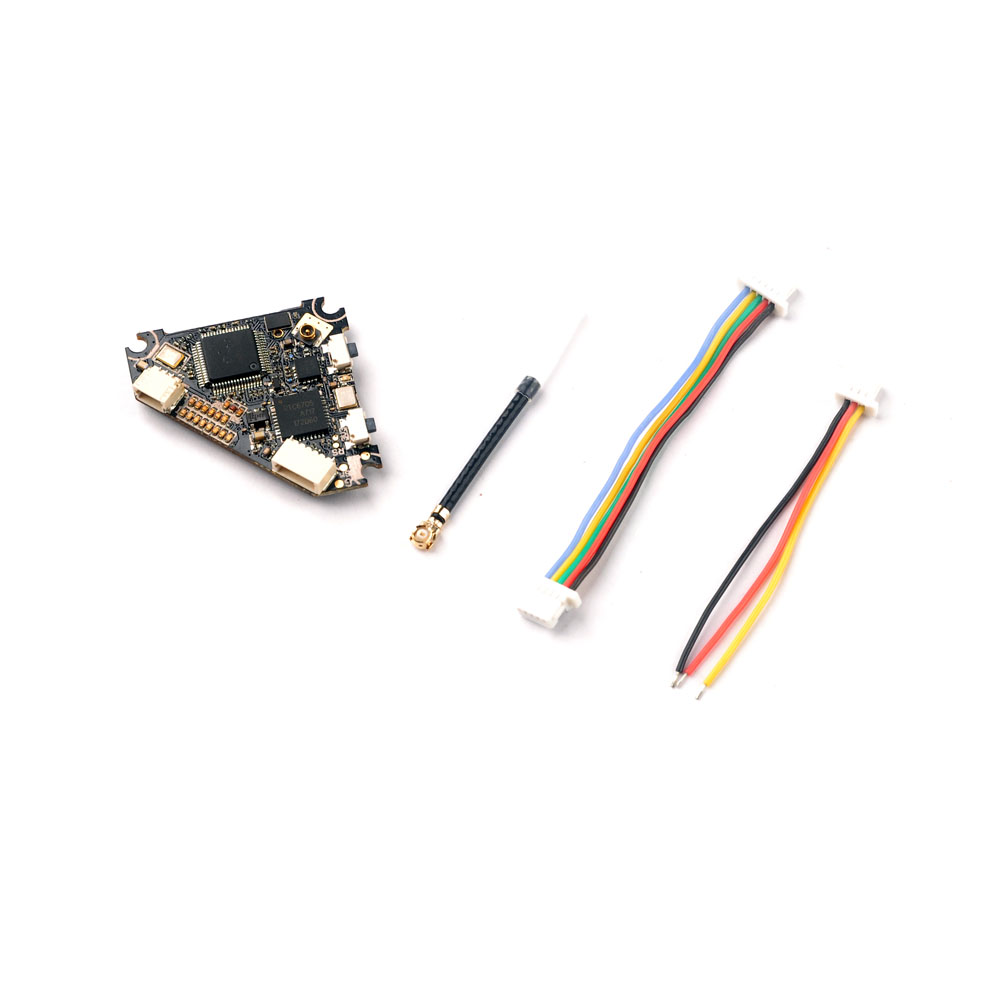

Package included:
1 x Diamond_VTX
1 x JST SH1.0 3Pin wire for camera
1 x JST SH1.0 5Pin wire for flight controller
