Description

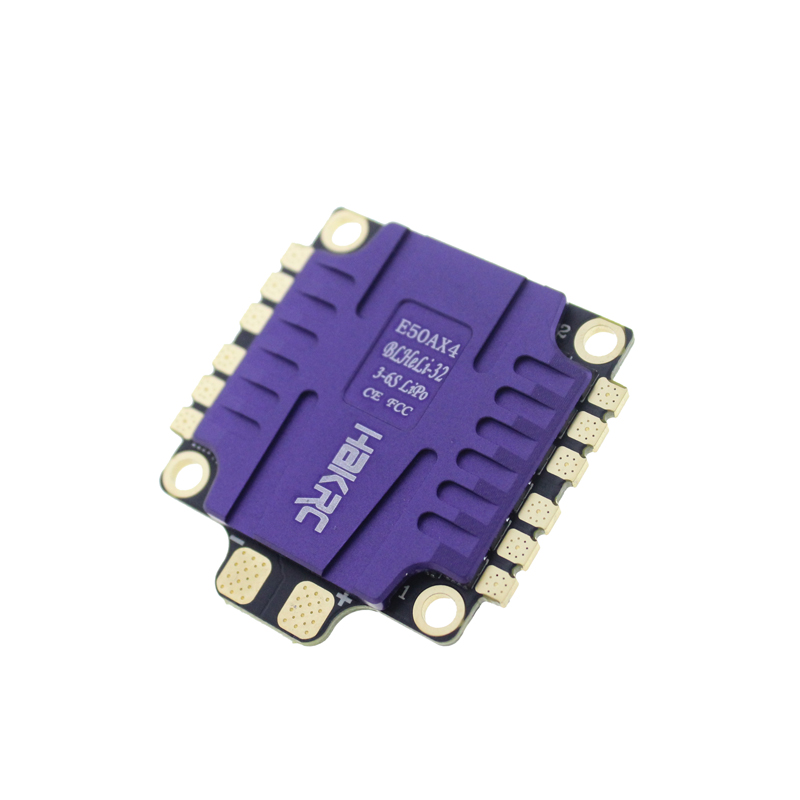

HAKRC E50AX4 50A Blheli_32 3-6S Dshot1200 5V/3A BEC Brushless ESC 30.5×30.5mm
Specification:
Brand name: HAKRC
Item name: E50AX4 50A Brushless ESC
Continuous current : 50A
Maximum current : 65A (sustainable 10S)
Input voltage : 3–6S
Fixed hole distance : 30.5*30.5mm/Φ3mm
Size: 36*36*6mm
Package Size: 62*58*17mm
Weight: 16g
Package weight: 40g
Feature:
– The HAKRC 50A ESC uses the STSPIN32F0A 32-bit high performance processor.
– The original imported MOS tube is used, and the double MOS is connected in parallel to make the heat generation lower.
– PCB board adopts 3OZ copper thick multi-layer board for stronger overcurrent
– 5V/3A BEC output, support voltage return and current data transmission
– Drive signal support: Dshot150/300/600/1200, Multishot, PWM, Oneshot.

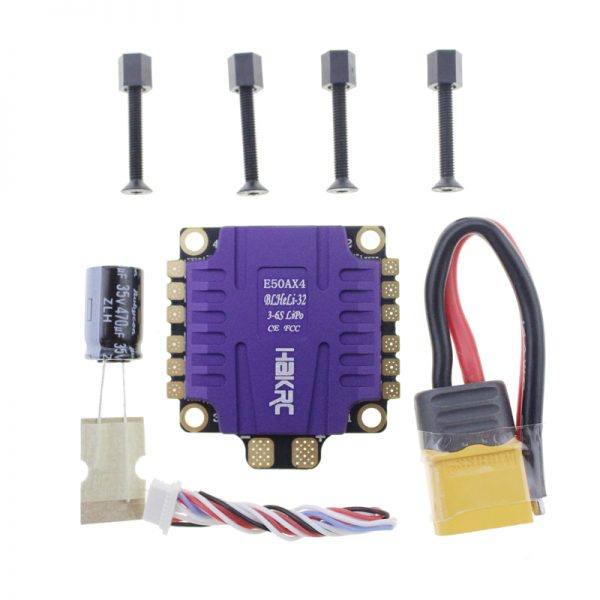

Pacakge Included:
1 x E50AX4 50A Brushless ESC
