Description
Introduction:
The Vapor-X is a robust and agile FPV designed for freestyle flying. The name “Vapor-X” is inspired by the pursuit of freestyle flying and the distinctive wide X-shaped design.
It features the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance. The CNC aluminum alloy camera protection side plates enhance both durability and aesthetics.

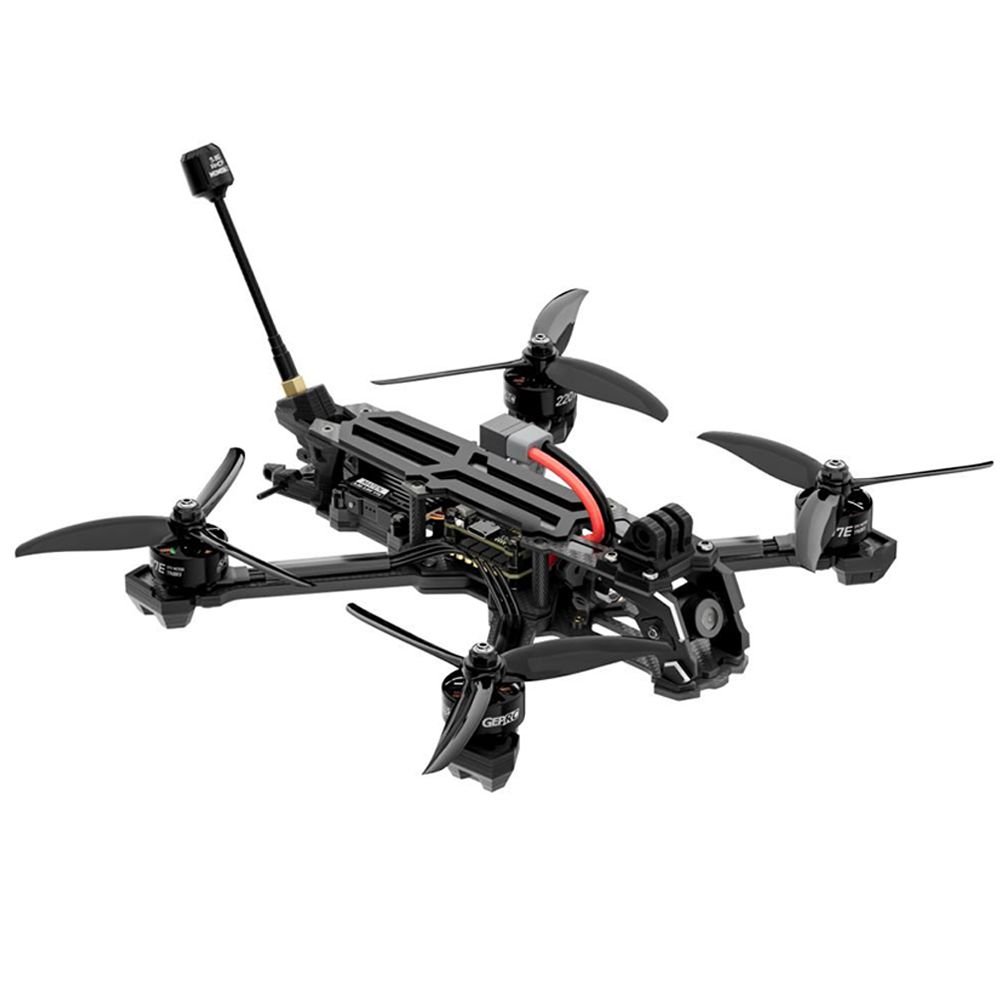

Available in 5 Inch and 6 Inch models, catering to various flying preferences, the Vapor-X offers an unparalleled flying experience for every pilot.The product you are looking at now is the Vapor-X5, a 5 Inch FPV Racing Drone.
Specifications：
Brand: GEPRCModel: Vapor-X5GPS: Geprc GEP M10 GPS
|
Model |
GEPRC Vapor-X5 |
||
|
Version |
Vapor-X5 DJI O3 Air Unit |
Vapor-X5 Wasp |
Vapor-X5 Analog |
|
VTX |
DJI O3 Air Unit |
Link |
MATEN 5.8G 1.6W VTX |
|
Camera |
DJI O3 Camera |
Wasp |
Caddx H1 |
|
Antenna |
5.8G&2.4G |
Momoda2 5.8G Antenna LHCP SMA 90mm |
Momoda2 5.8G Antenna RHCP SMA 90mm |
|
Weight |
419.5g±5g |
410g±5g |
409g±5g |
|
Motor |
GEPRC SPEEDX2 2207E 1960 KV |
||
|
Propellers |
GEMFAN 5136 |
||
|
Frame |
Vapor-X5 frame |
||
|
Wheelbase |
230 mm |
||
|
Flight Time |
14-19 min |
||
|
Top Plate |
2.0 mm |
||
|
Middle Plate |
2.0mm |
||
|
Bottom Plate |
2.5 mm |
||
|
Arm Thickness |
5.0 mm |
||
|
FC |
GEP-F722-HD v2 |
||
|
MCU |
STM32F722 |
||
|
Gyro |
ICM42688-P(SPI) |
||
|
OSD |
Betaflight OSD w/AT7456E |
||
|
ESC |
TAKER H60_BLS 60A 4IN1 ESC |
||
|
Connector |
XT60 |
||
|
Receiver |
PNP/GEPRC ELRS 2.4G/TBS Nano RX |
||
|
Recommended Battery |
LiPo 1550mAh – 2200mAh |
||
Recommended Battery: ( NOT Included):
