Description
Feature:

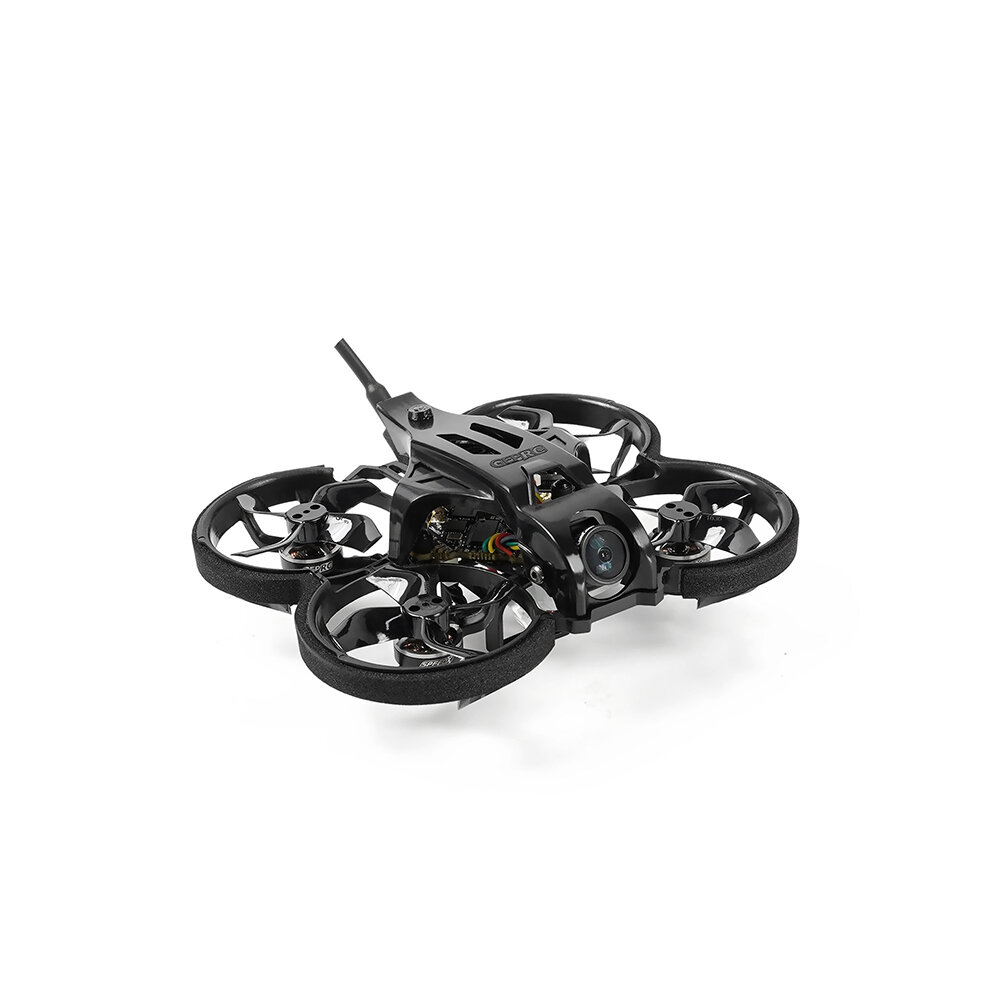

lTinyGO is very suitable for indoor flight, More than 6 minutes of flight time
lUsing TAKER F411 8Bit 12A FC system, reliable and stable
lNo Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture
lThe Newly Developed TinyRadio GR8 Remote Controller is specially designed for Novice and indoor flight
lHigh-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver
lReady To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight.
lThere are Two versions: The normal version is suitable for daily practice, The 4K version can Record 4K 60fps Video.
Configuration
lBrand: GEPRC
lModel: TinyGO V1.3
lFrame: GEP-TG16
lMotor to Motor: 79mm
lFC: TAKER F411 8Bit 12A
lMCU: STM32F411
lIMU: 42688-P
lBlackbox: 16Mb
lOSD: BetaFlight OSD w/ AT7456E chip
lESC: 8Bit 12A
lVTX: RAD Whoop 5.8G 25~400mw VTX
lCamera: Runcam Nano2/Caddx Loris 4K 60fps
lPropeller: GEMFAN 1636*4 (4 pairs)
lMotors: GR1102 10000Kv
lReceiver: Integrated ELRS SPI receiver
lTinyGO Racing Weight: 48 Grams
Remote Controller
lTinyRadio ELRS 2.4G Remote Controller
lRadio Frequency: 2.4GHz
lRadio Frequency: 2.4GHz
lRange: 1000+ meter
lChannel: 8
lTransmit Power:<500mW
lAntenna interface : SMA
lLow Voltage alarm: <6.6v
lBatteries: 2 x 18650 Batteries (not included)
lTinyRadio ELRS Remote Controller
lRadio Frequency: 2.4GHz
lRadio Protocol: FHSS
lChannel: 8
lTransmit Power: < 20 dBm
lAntenna interface: SMA
lLow Voltage alarm: <6.6v
lBatteries: two 18650 batteries or a 2S battery.(not included)
FPV Goggle：
lResolution: 800*480px
lSize of Screen: 4.3 inch
lWhole Size: 155mmx144mmx113mm
lIn-built batteries: 3.7v/2000mAh
lWorking Hours: 2.5 Hours
lWeight: 314.6 Grams
FPV Batteries：
lBatteries Capacity: 530mAh
lVoltage: 4.35v 1S1P
lDischarge rate: 90C
lSize:（61mmx16.7mmx7mm）
lWeight: 12.7 Grams
lInterface: PH2.0
Charger：
lInput power:5v（USB & Type C）
lFull charged Voltage:4.35v
lOutput current : 500mAh
lCharging:It can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time
Package Include:
l1x TinyGO TinyWhoop
l1x TinyRadio GR8 Transmitter
l1x GEPRC FPV RG1 Goggle
l4x GEPRC LiHV 4.35v 90C Battery
l1x Battery strap
l4x Gemfan 1636*4 Props(pairs)
l1x GEPRC Fly bag
l1x Screwdriver
