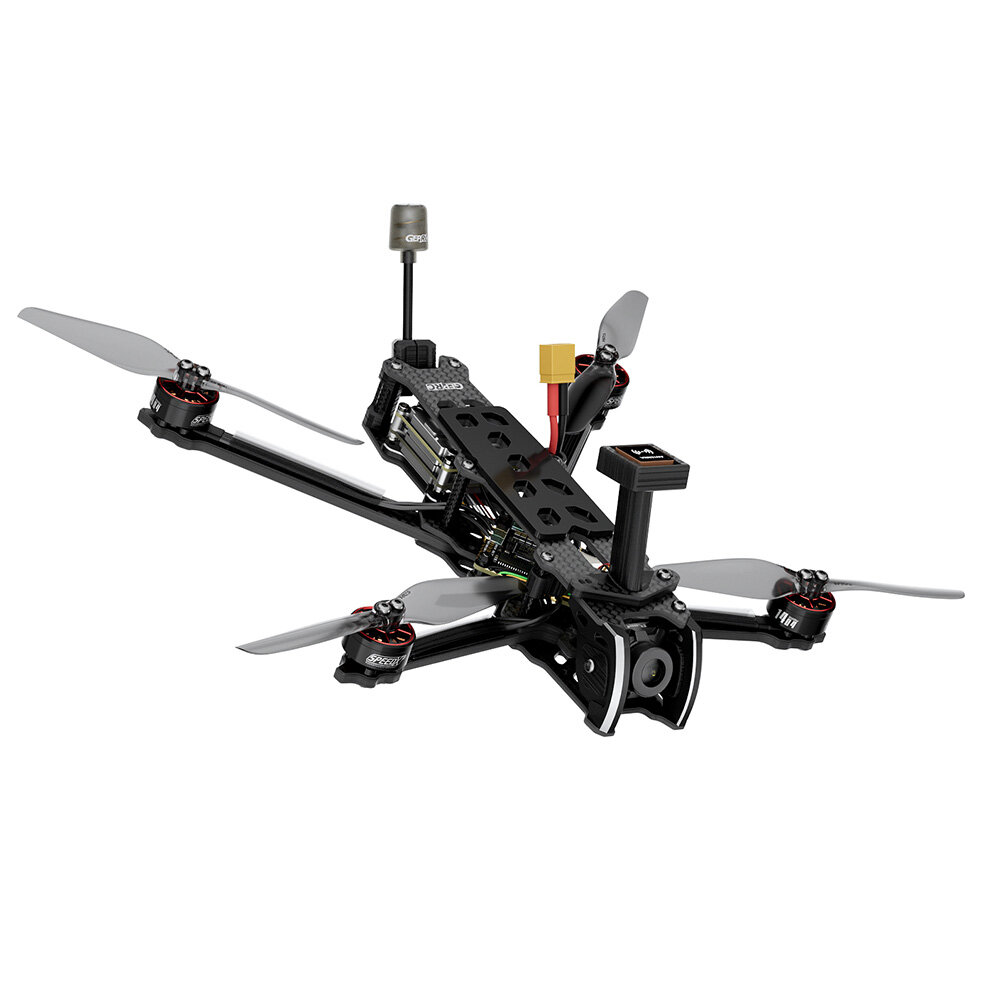

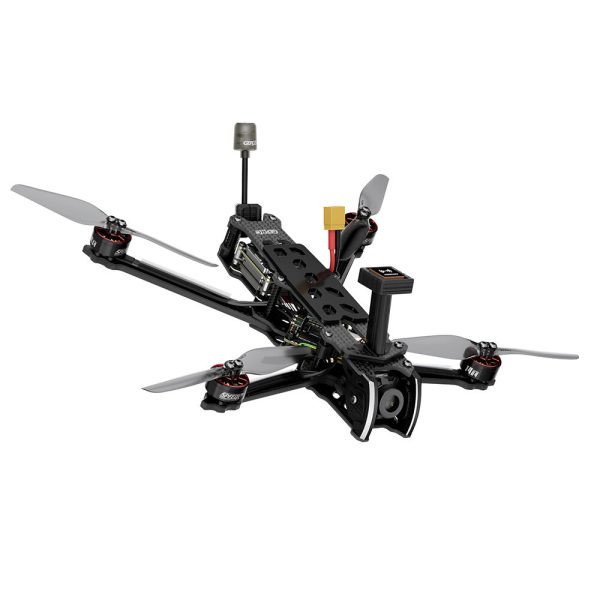

GEPRC Tern LR40 HD Wasp 4 Inch 4S Long Range FPV Racing Drone PNP BNF with GPS Taker G4 45A AIO Link WASP Digital System

Description

Summary:

-In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.

-Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.

-The Tern-LR40 is like a bird with spread wings, flying freely through the sky without being restrained. Choosing it is not only a high-quality flight, but also an artistc journey.

Features:
-New lightweight design, weight under 249g.
-Expand interference GPS fixation method and stay away from interference sources
-DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
-Install BB ring to set the battery low voltage alarm
-Using GEP-M10nano GPS, the satellit search speed is faster and the rescue mode is more stable.
-Compatible gopro mount installation, expandable shooting creation.

Specifications:
Brand: Geprc

Model: Tern LR40 HD ( WASP)
Frame: Tern LR40 Frame
Wheelbase size: 180mm
Top plate: 1.5mm
Middle plate: 2.0mm
Bottom plate: 1.5mm
Arm thickness: 3.5mm
FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E
ESC: 32Bit 45A
VTX: Link
Camera: Wasp
Antenna: GEPRC Peano 5.8G LHCP UFL
Connector：XT30
Motors: GEP-SPEEDX2 1404 3000KV
Propellers: HQProp T4X2.5Grey (2CW+2CCW)
Tern-LR40 Wasp PNP version weight: 171g±5g
Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX

Recommended battery: ( NOT Included)

LiPo 4S 660mah-850mah/18650 3000mah
Flight time: 10-25min

Includes:
1 x Tern-LR40
2x HQProp T4X2.5Grey (2CW+2CCW)
2 x battery anti-slip mat
1 x screw pack
4 x Battery strap M15*170mm
1 x L-shaped screwdriver 1.5mm
1 x camera mount holder for GoPro
1 x T-type Antenna mount
1 x RC Printed
