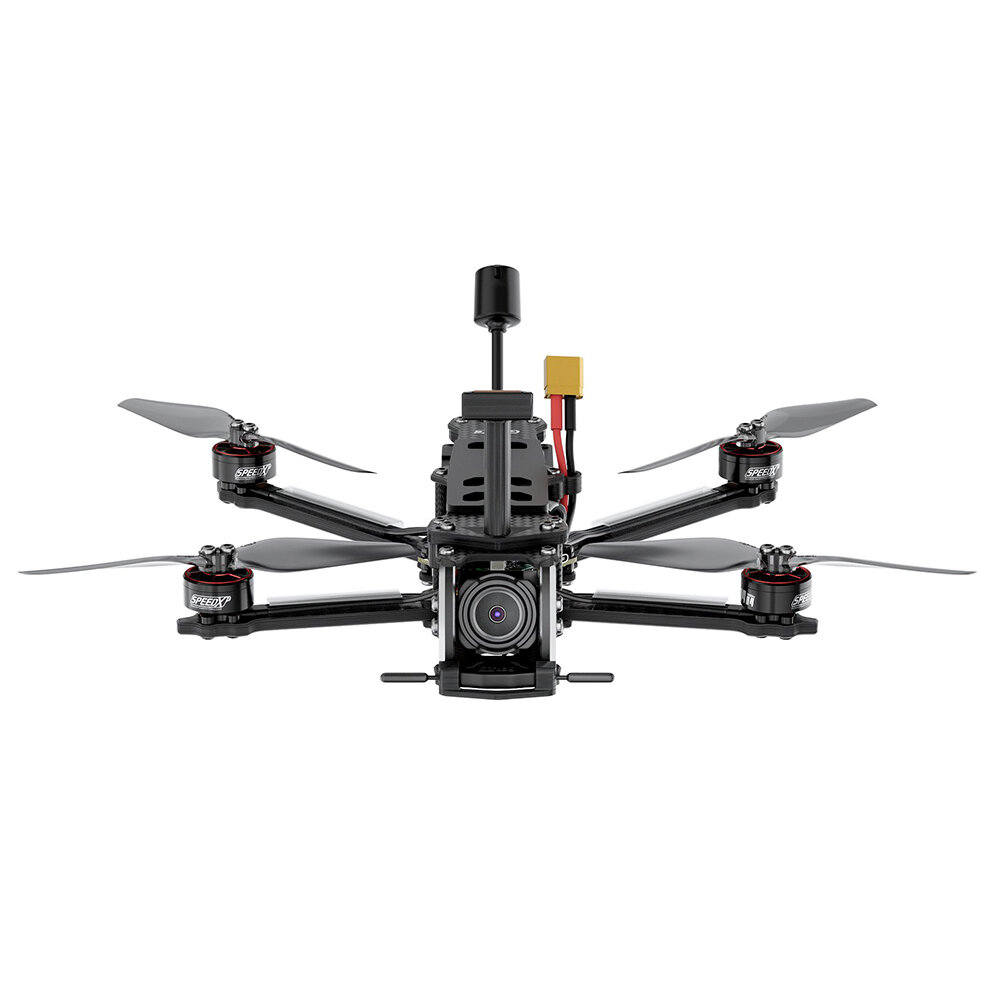

GEPRC Tern LR40 HD DJI O3 4 Inch 4S Long Range RC FPV Racing Drone BNF with Taker G4 45A AIO FC M10 Nano GPS

Description

Summary:

-In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.

-Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jelly from DJI O3 camera.

-The Tern-LR40 is like a bird with spread wings, flying freely through the sky without being restrained. Choosing it is not only a high-quality flight, but also an artistc journey.

Features:
-New lightweight design, weight under 249g.

-Expand interference GPS fixation method and stay away from interference sources.

-DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.

-Install BB ring to set the battery low voltage alarm.

-Using GEP-M10nano GPS, the satellit search speed is faster and the rescue mode is more stable.

-Compatible gopro mount installation, expandable shooting creation.

Specifications:
Model: Tern-LR40
Frame: Tern-LR40 Frame
Wheelbase: 180mm
Top plate: 1.5mm
Mid plate: 2.0mm
Bottom plate: 1.5mm
Arm thickness: 3.5mm
FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E
ESC: 32Bit 45A
VTX: DJI O3 Air Unit
Camera: DJI O3 camera
Antenna: 5.8G&2.4G
Motors: GEP-SPEEDX2 1404 3000KV
Propellers: HQProp T4X2.5Grey (2CW+2CCW)
Tern-LR40 PNP version weight: 180g±5g
Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
Recommended battery: LiPo 4S 660mah-850mah
Flight time: 10-25min

Includes:
1 x Tern-LR40
2 x HQProp T4X2.5Grey (2CW+2CCW)
2 x battery anti-slip mat
1 x screw pack
4 x Battery strap M15*170mm
1 x L-shaped screwdriver 1.5mm
1 x camera mount holder for  GoPro
1 x T-type Antenna mount
1 x RC Printed
