Description

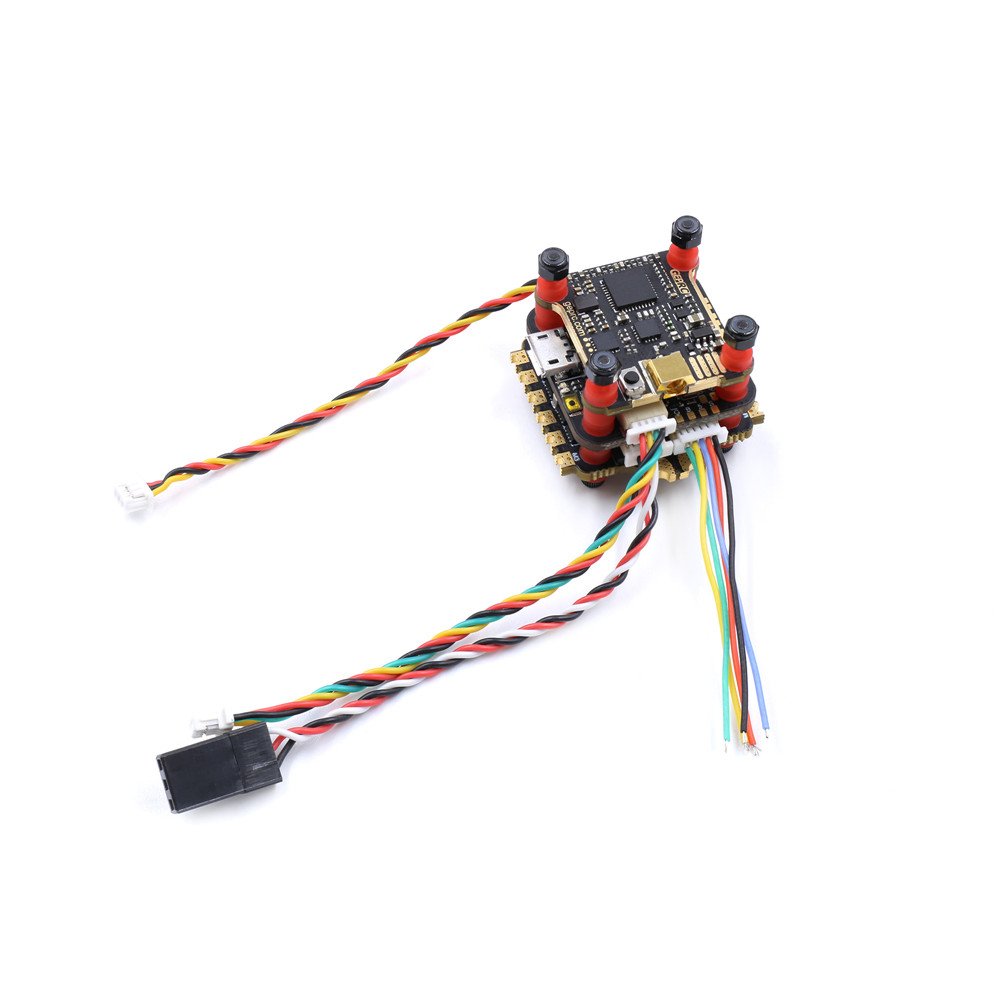

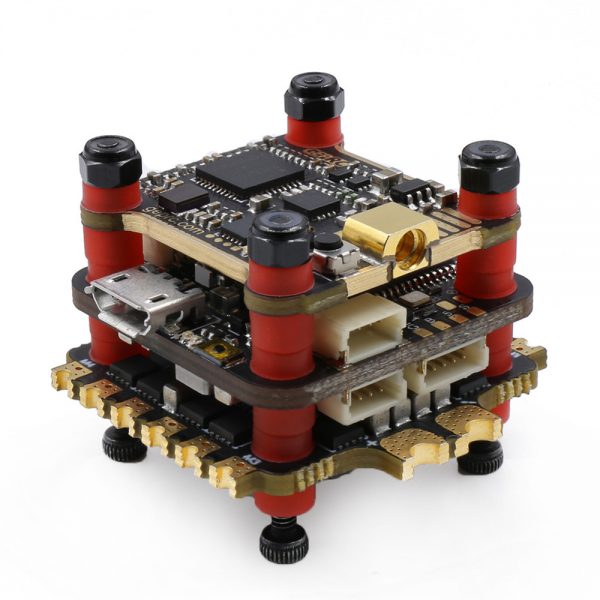

Geprc Stable Pro F7 Stack Dual Gyro F7 Flight Controller & 35A BLheli_32 4in1 ESC & 5.8G 500mW VTX
Specification:
Brand Name: Geprc
Model: Stable Pro F7
Item Name: Dual Gyro F7 Flight Controller & 35A BLheli_32 4in1 ESC & 5.8G 500mW VTX Stack

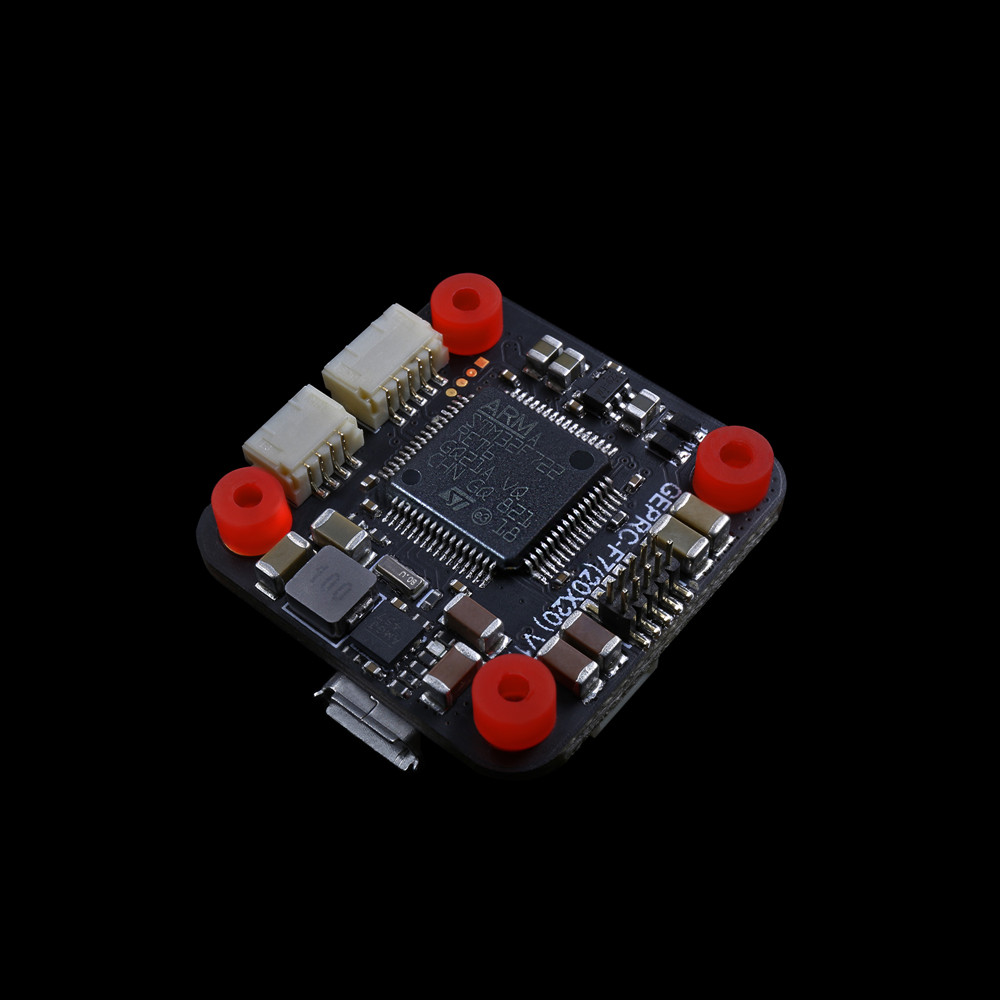

F7 Flight Controller
Model:STABLE PRO F7
MCU: STM32F722RET6
IMU: 2x ICM20689(SPI)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V@3A
Integrated LC Filter
Input Voltage: 2-6S Lipo
Firmware target: EXF722DUAL
Size: 26x26mm board, 20mm mounting holes (M2)

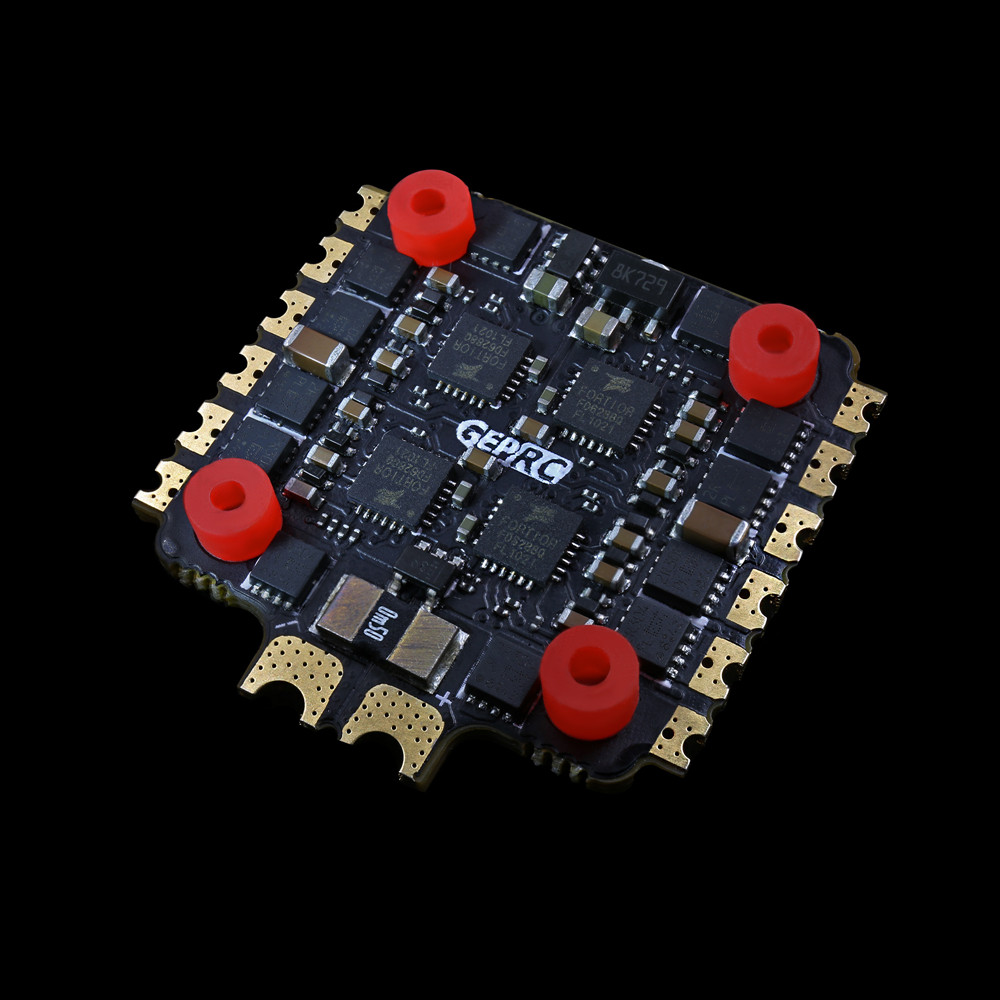

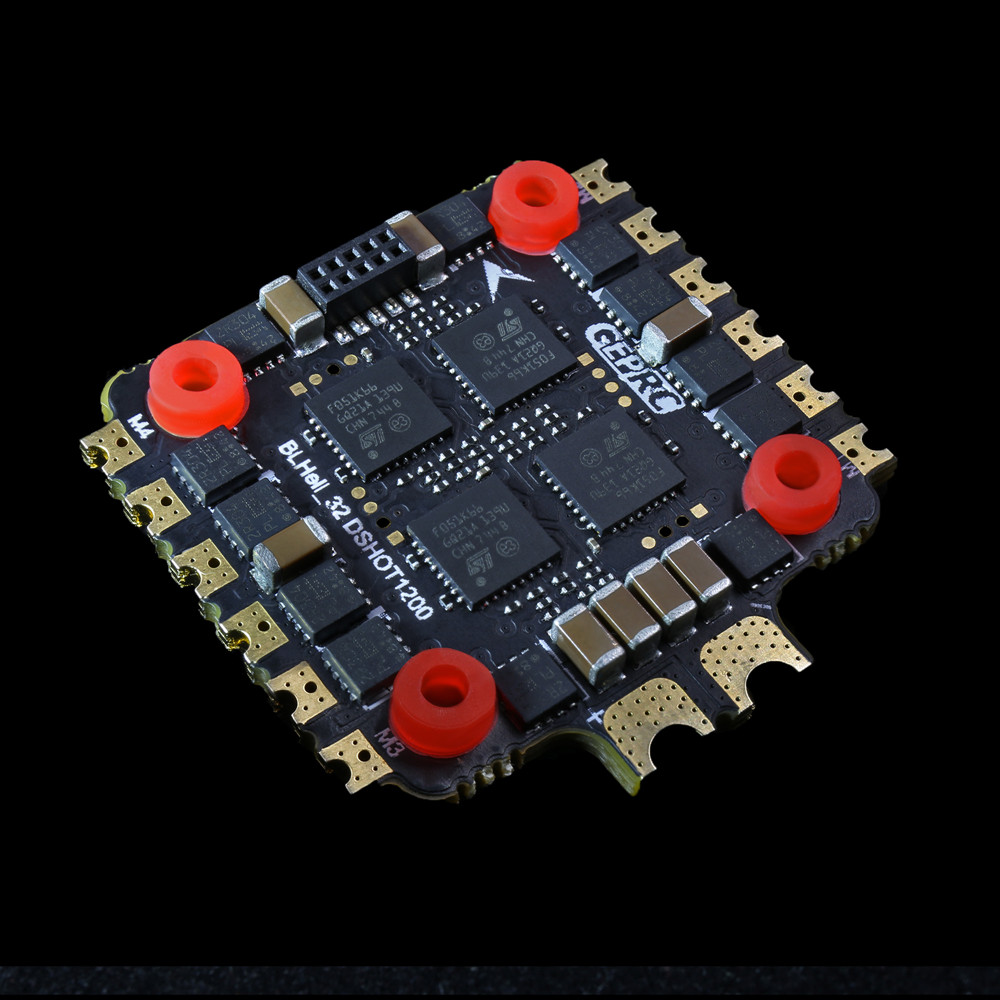

35A BLheli_32 4in1 ESC
MCU:STM32F051
Input:2-6s lipo
Constant:35Amps
Burst:45Amps
Dimensions:31*31mm(including the power pads)
Mounting Holes:20*20mm,M2
Supports Dshot1200,Proshot,Oneshot,Multishot
Current meter: Yes
Target: GEPRC-BL32-4IN1

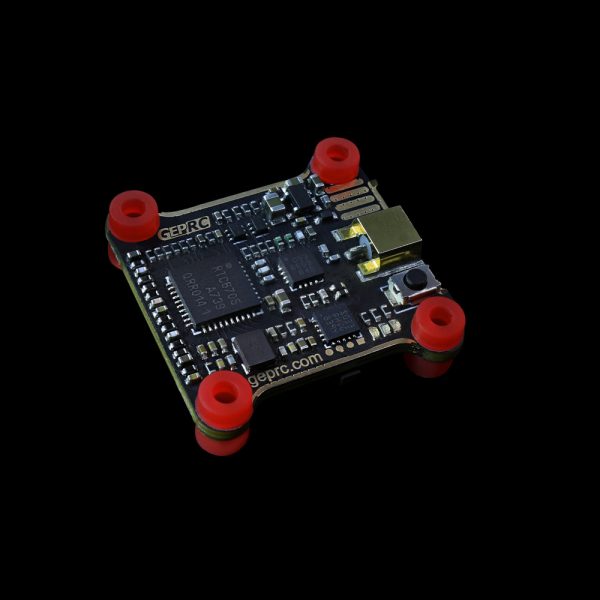

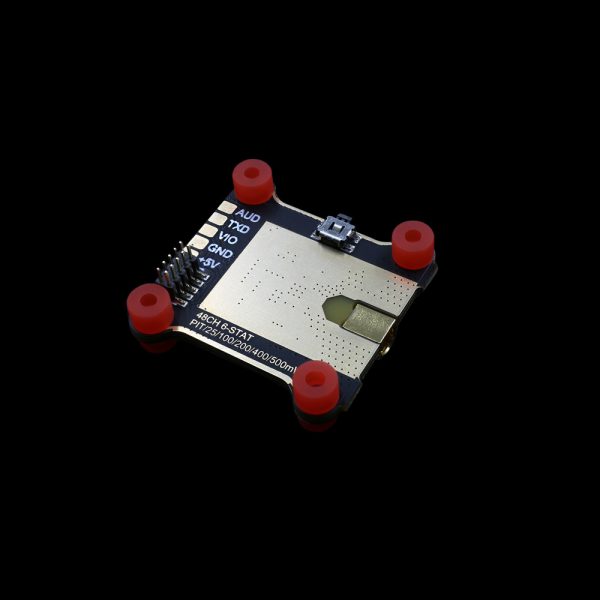

5.8G 48CH 500mW VTX
Input voltage: 5V
Channel: 48
Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
Size: 24 * 26 mm
Mounting Holes Dimension: 20mm x 20mm
Connector type: MMCX Connector
BEC Output: 5V/1A for Camera of FC
Weight: 2.3g
– Traditional button
– IRC Tramp protocol

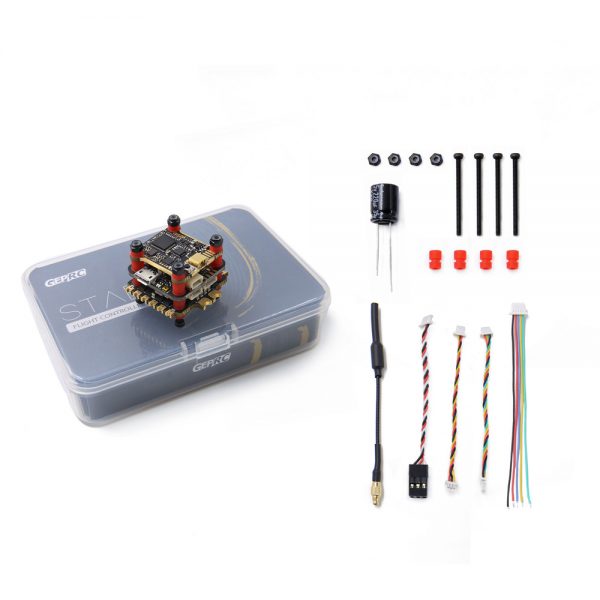

Package Included:
1x F7 Flight Controller
1x 35A ESC
1x FPV Transmitter Module
1x Antenna
1x Capacitor
1x bag of Cables
1x bag of Screws
