Description

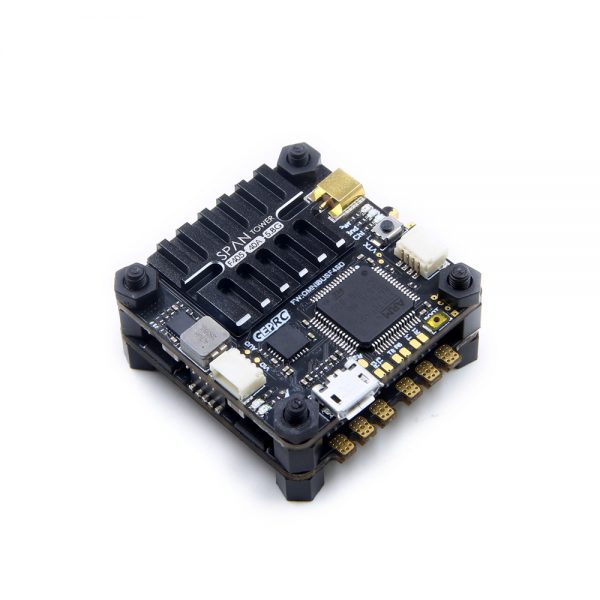

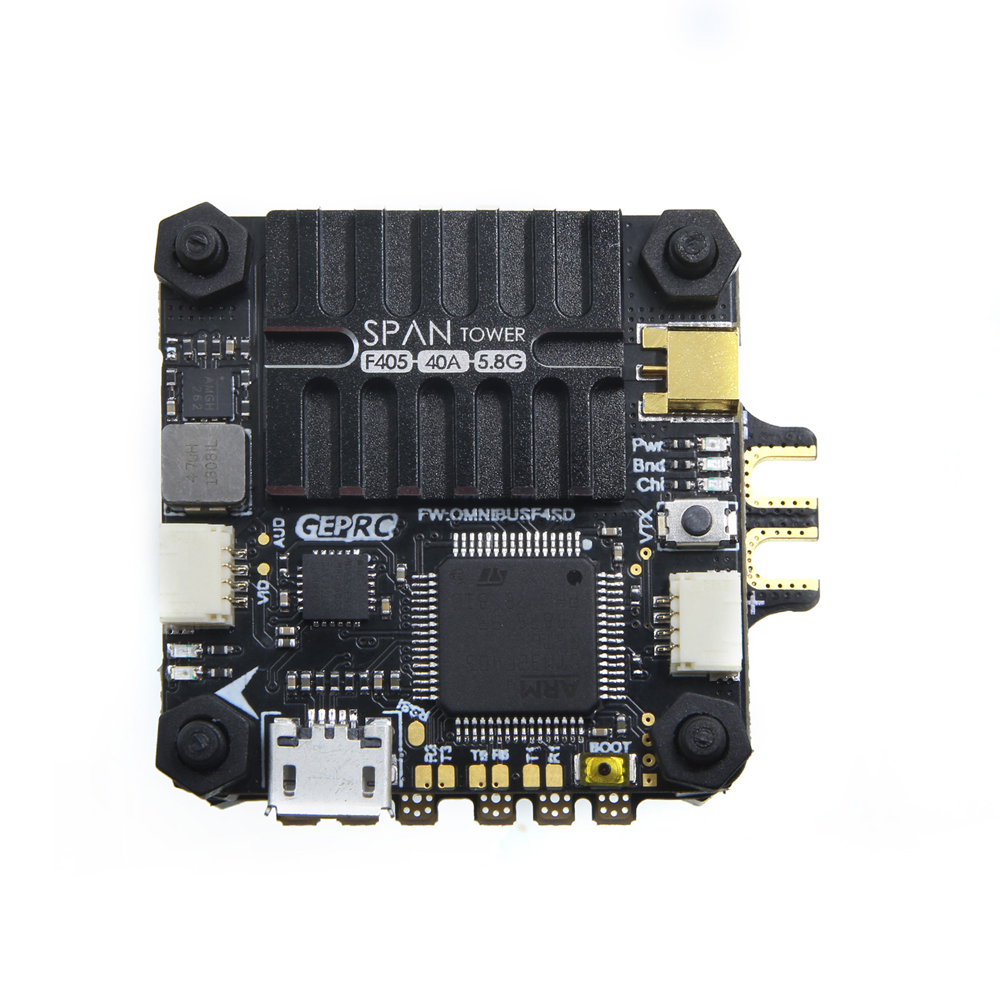

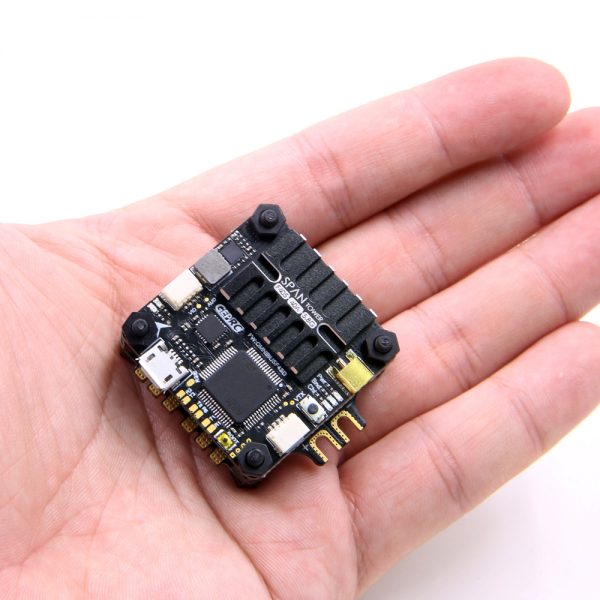

GEPRC SPAN F4 Tower F4 Flight Controller & 48CH 25/200/600mw VTX & 40A 4 IN 1 BLHeli_S ESC 2-5S
Description:
Brand name: GEPRC
Model: SPAN F4 Tower
Size: 36x36x14mm
Mounting holes: 30.5mm
Installation height: 14mm
MCU: STM32F405
Use MPU6000 as Acc & gyro over SPI Bus
Toal weight: 21g(FC+ESC)
Cont.Current: 4*40A
Firmware version: OMNIBUSF4SD
High precision CNC heat sink.
On-Board LC Filter for clear video images
Oneshot125/Oneshot42/Multishot modes, the latest Dshot 150/300/600.
Practical – Easy to access connectors
Configurable – Choose to use connectors
Professional – Symmetrical, Neat and Tidy and Easy to install in Most of Farme.
Micro USB socket

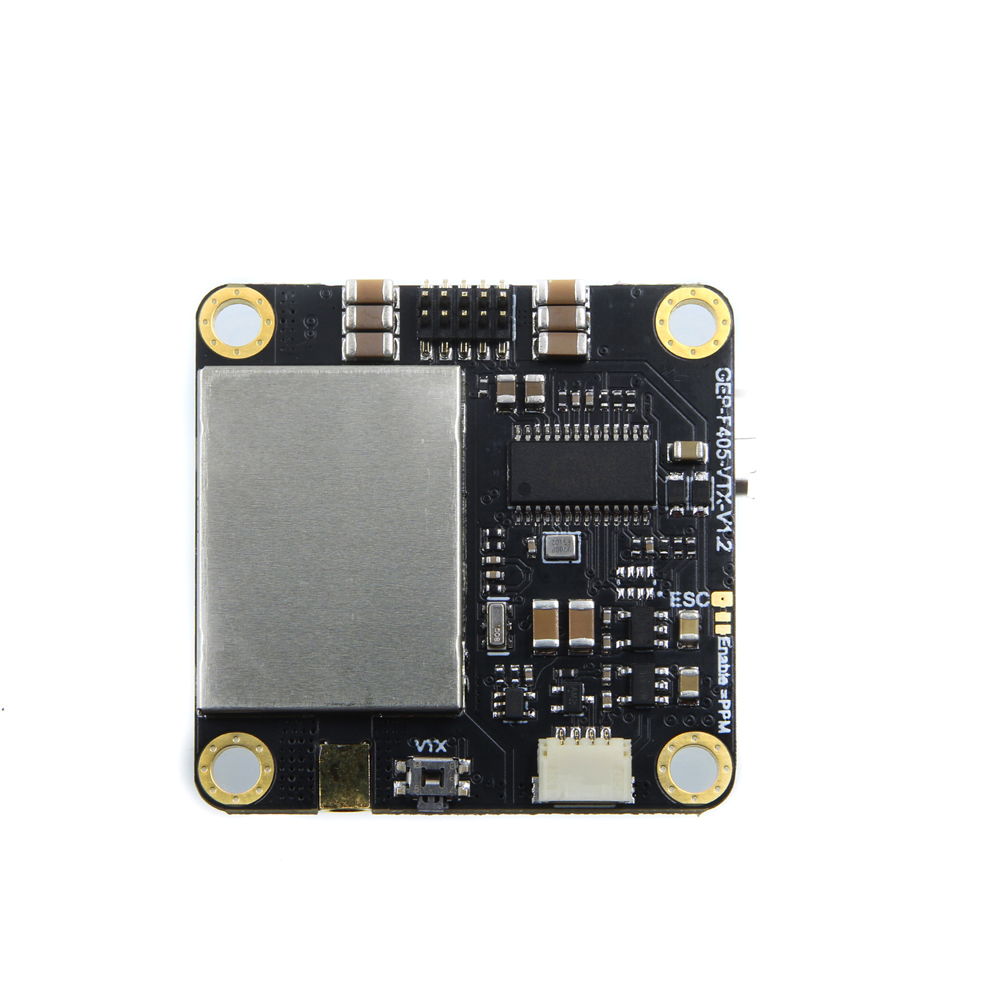

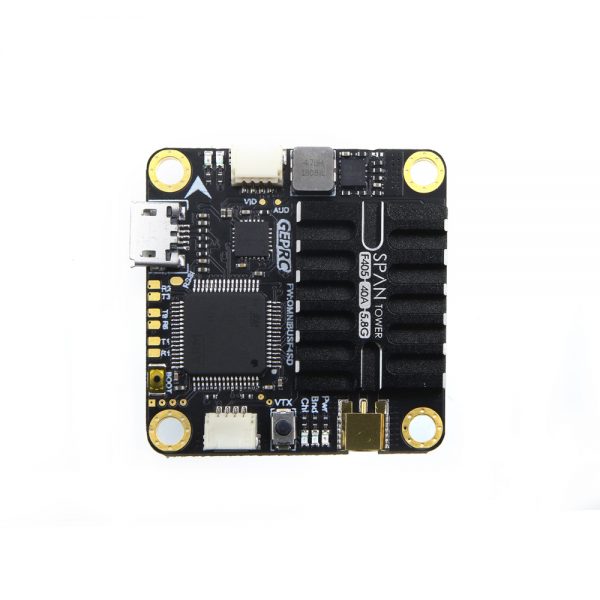

F4 Flight Controller & 48CH 25/200/600mw VTX Board:
Model: GEP-F405-VTX58600
MCU: STM32F405 MCU
Firmware version: OMNIBUSF4SD
Use MPU6000 as Acc & gyro over SPI Bus
Integrated VTX with audio (48CH) (OFF/25/200/600mW adjustable power video transmission)
STM32 controls OSD chip over SPI in DMA mode, less CPU using, faster rate
TX control ready via Furious FPV / IRC Tramp peripheral protocol
Integrated 5V/3A BEC
Integrated LC Filter
40A 4 IN 1 ESC Board:
Model: GEP-BS40A-4IN1
PDB: Integrated
Battery monitoring: Integrated
FC power: Integrated
Input voltage: 2~5S Lipo
Maximum continuous operating current: 4*40A
Maximum instantaneous operating current: (4*45A(5 Seconds))
Oneshot125/Oneshot42/Multishot modes, the latest Dshot 150/300/600
Firmware version: BLHeli_S/Dshot 150/300/600 16.6(G_H_30)
Size: 36*36mm
Weight: 8.8g
Package included:
1 x FC board integrated
1 x ESC board
1 x Antenna
1 x Capacitor

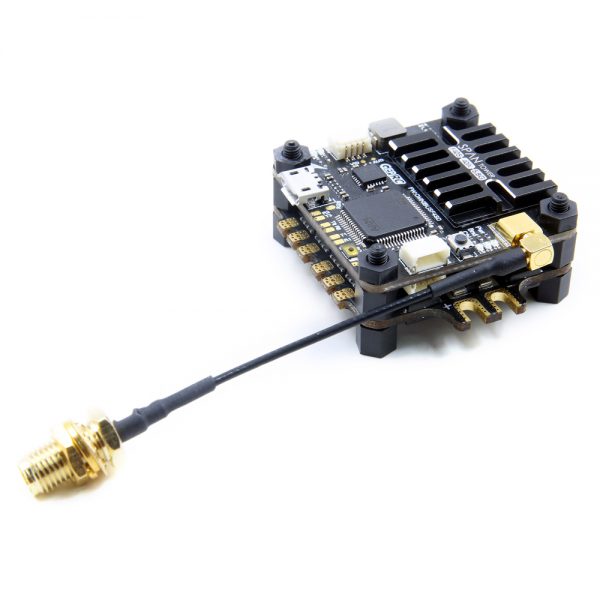

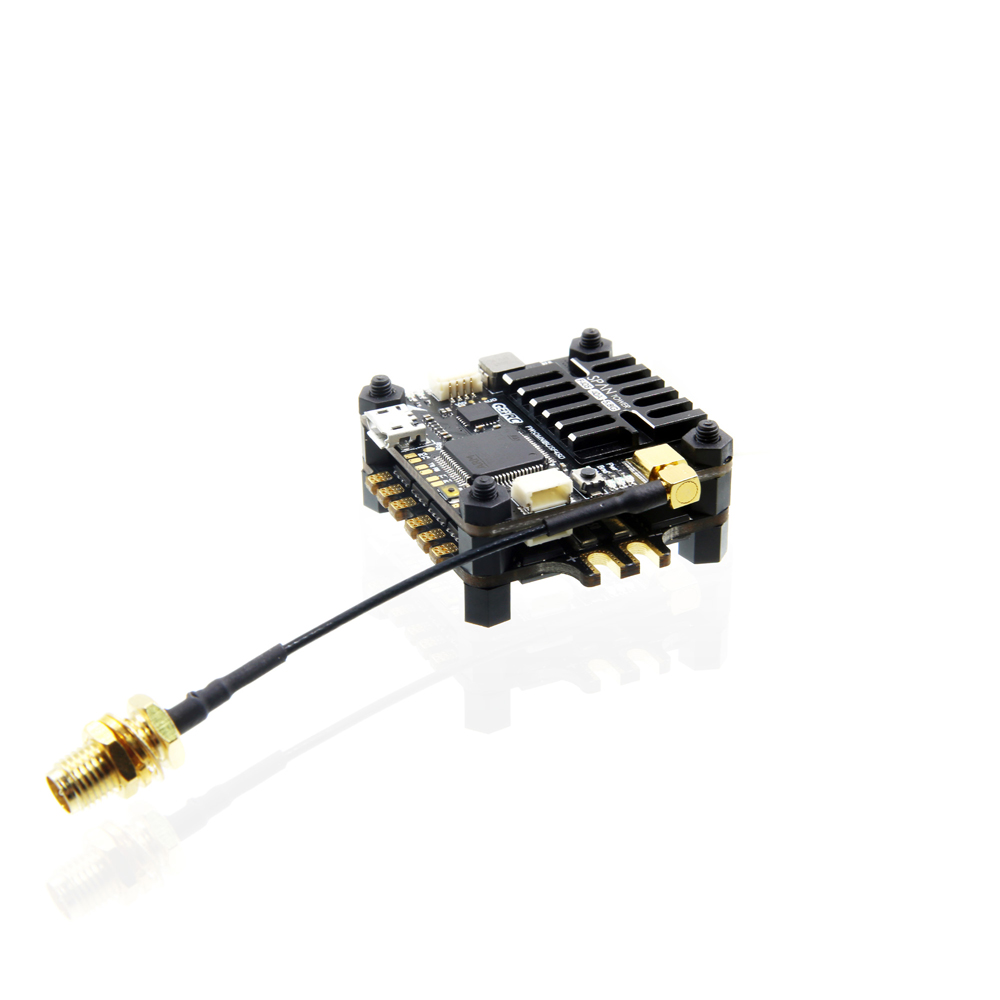

1 x MMCX Antenna for easy replacement and upgrades
1 x 4pins JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
1 x 4pins JST-SH sockets with BUZZER & WS2811 RGB LED
1 x 4pins JST-SH socket for Video and Audio transmission
1 x Power wire XT60
