Description

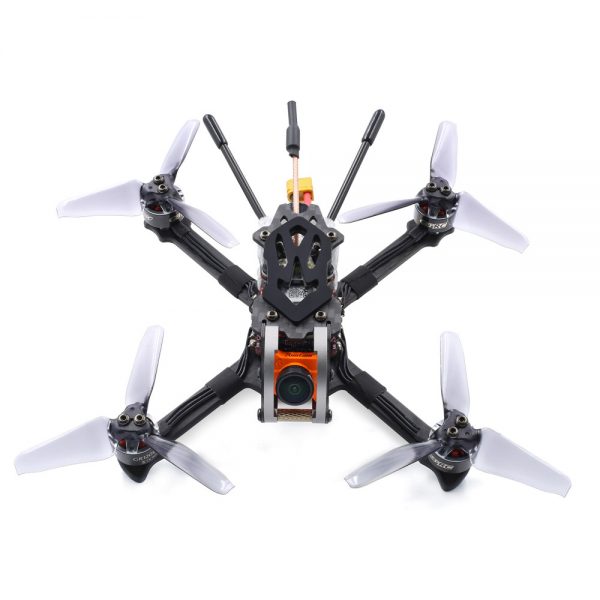

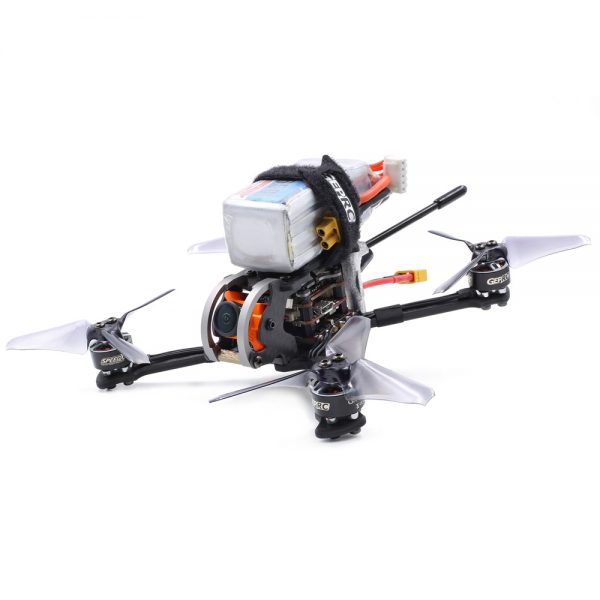

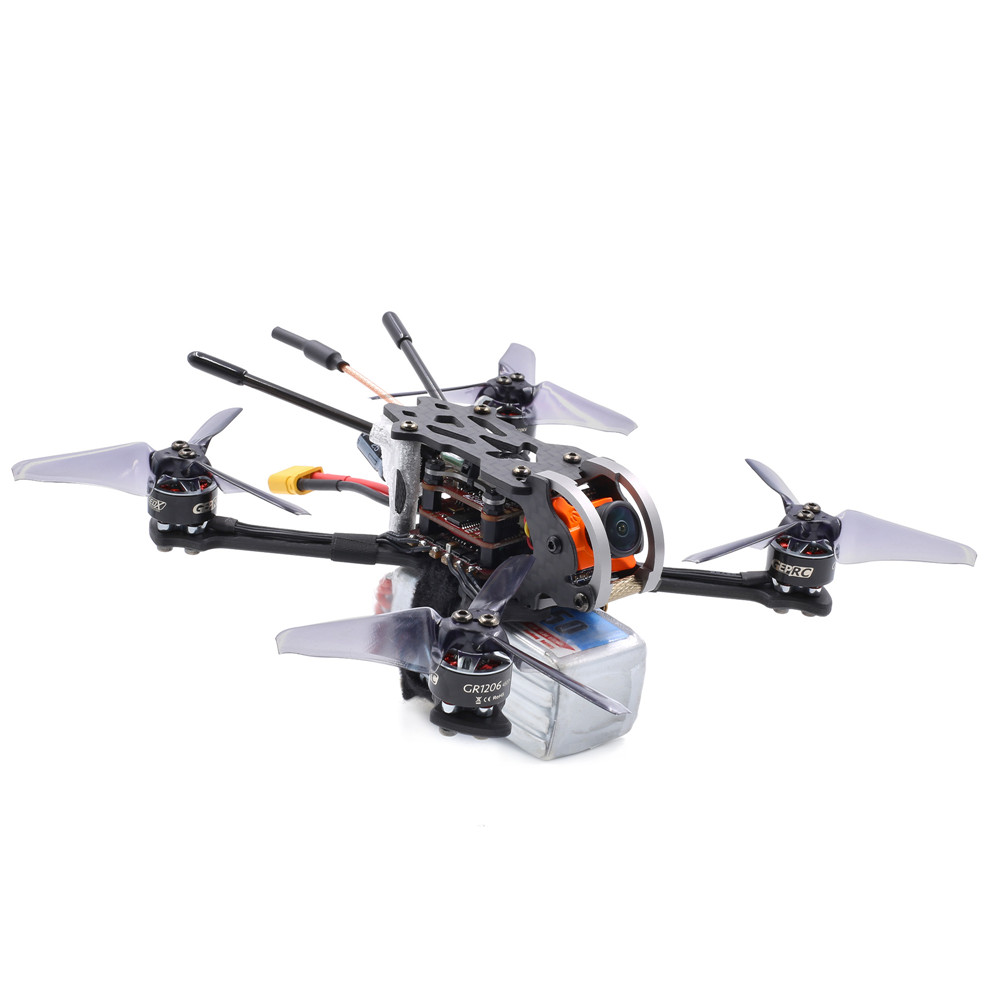

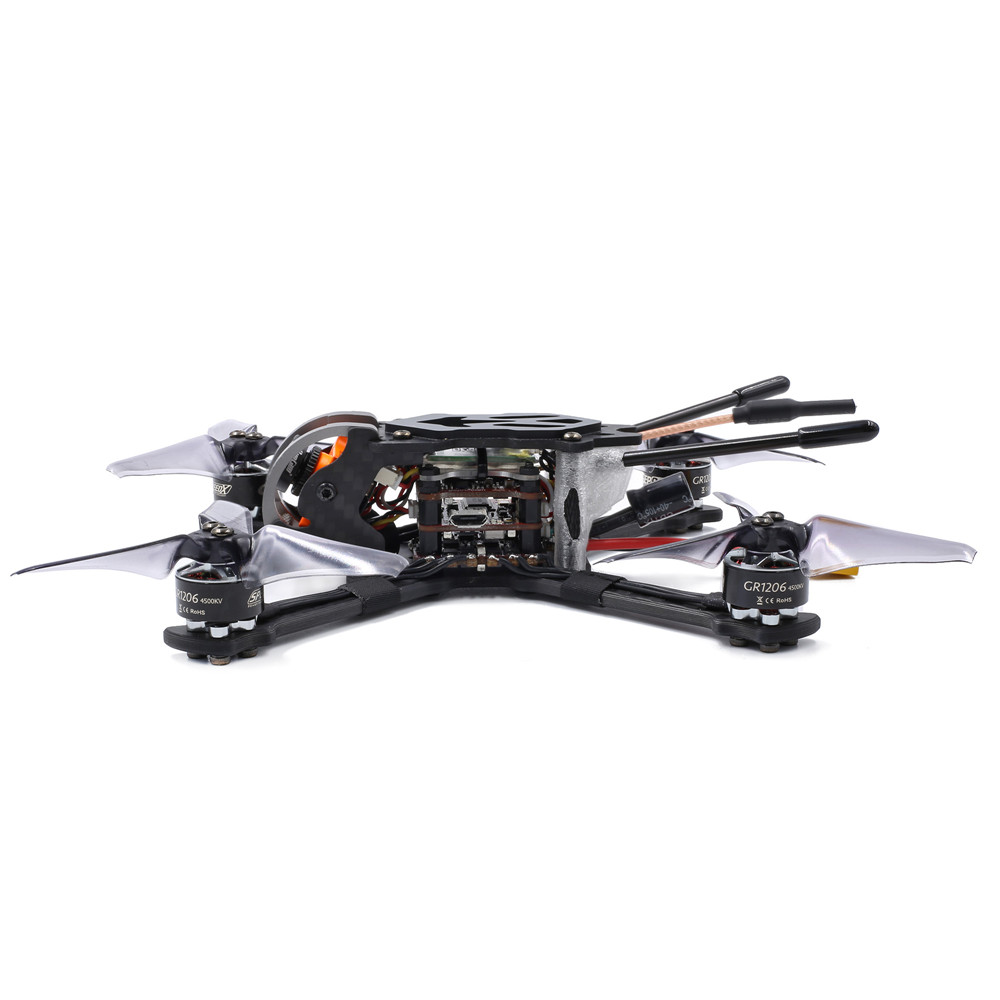

Geprc Phoenix3 PX3 140mm Stable F4 3 Inch FPV Racing Drone PNP BNF w/ RunCam Micro Swift
Specification:
Brand Name: Geprc
Model: Phoenix3
Item Name: 140mm 3 Inch FPV Racing Drone
Version: BNF ( With Frsky XM+ Receiver) / PNP ( Without Receiver)
Drone Wheelbase: 140mm
Material: 3K Carbon Fiber & 7075 Aluminum Alloy
Bottom Plate: 3mm
Top Plate: 2mm
Side Plate: 1mm
Drone Weight: 104.2g
Drone Weight: 104.2g
| F4 Flight Controller ( Stable F4 Tower Manual ) |
Brand Name: Geprc Model: Stable F4 Tower Item Name: Omnibus F4 Flight Controller Firmware: betaflight 3.2.1 (OMNIBUSF4SD)
OSD Firmware: Betaflight OSD
Video Camera Voltage: 5V only
Support Voltage monitor, buzzer and LED
Support DSMX, SBUS and PPM Receiver
Board Size: 25×25mm ( 20x20mm Mounting Hole)
Weight: 2.3g
|
| 48CH 25/100/200mw VTX ( Stable F4 Tower ) |
VTX Power: OFF/25/100/200mW
CH: 48CH
VTX Power input: 2-6S (using VTX layer alone)
Video Camera Voltage: 5V
|
| 20A BLheli_S 4in1 ESC ( Stable F4 Tower ) |
Input Voltage: 2-4S (12A)
Con. Current: 20A
Peak Current: 30A (5s)
Oneshot 125/42 : YES
Dshot 150/300/600: YES
BlheliSuite Configurable: YES
Firmware Version: BLHeli_S/Dshot 150/300/600 16.6(G_H_30/L_H_0)
Board Size: 27×27mm
Weight: 3.3g
PDB: Integrated
Battery Monitoring:Integrated
FC Power: Integrated
|
| GR1206 4500KV Motor |
Model: GR1206
KV: 4500KV
Configuration: 9N12P Stator Diamter: 12mm
Stator Length: 6mm
Shaft Diameter: 2mm
Motor (Dimension(Dia.*Len)): Φ 15.8*17mm
No.of Cells(Lipo): 2~4S
Internal Resistance: 180mΩ
Max Current(180S): 15A
Rotor: N52H arc magnets
Bearings: NMB 520
Base casing: Al 7075
Wire AWG: 28AWG
Weight(g): 8.3g
|
| EMAX AVAN Mini Propeller | Brand Name: EMAX Model: AVAN Mini Item Name: 3024 3 Inch 3-Blade Propeller Quantity: 2 CW + 2 CCW |
| Runcam Micro Swift Camera |
RunCam Micro Swift 1/3" 600TVL FPV Camera 2.1mm Lens CCD
|
| Receiver ( Only BNF Version) |
PNP: Without Receiver BNF: With Frsky XM+ Receiver |
| Recommend Lipo Battery ( NOT Included) |
3S 450mah-550mah Lipo Battery |
Package Included:
1x Phoenix3 FPV Drone
2x EMAX AVAN Mini Propeller
2x 10*150mm Battery Strap
1x XT30
2x Battery silicone pad
1x Frsky XM PLUS Receiver (ONLY BNF)
