Description
Features:
1. Upgraded lens aluminum alloy side plate, durabl and more visual impact
2. Built-in Bluetooth, support mobile phone wireless connection for parameter tuning
3. Developed specifically for freestyle with squashed X arm design.
4. The HD version uses New DJI O3 VTX, clear image, stable signal, low-latency, long-distance, and supports up to 4K/60fps recording
5. SPAN G50A BLHeli_32 4in1 50A ESC with the latest GEPRC 2107.5 motor, with strong power, quick response speed, precise throttle control, and smooth flight experience
6. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment
7. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter
8. Two kinds of 3D printing camera mounts are designed, which can be mounted with Gobro 8 Naked, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear
10. The DC structure is suitable for DJI O3 Air unit internal recording when no propeller is visible during flight, while the X structure is more suitable for freestyle when the propeller is slightly visible during dji o3 internal recording.
Specifications:

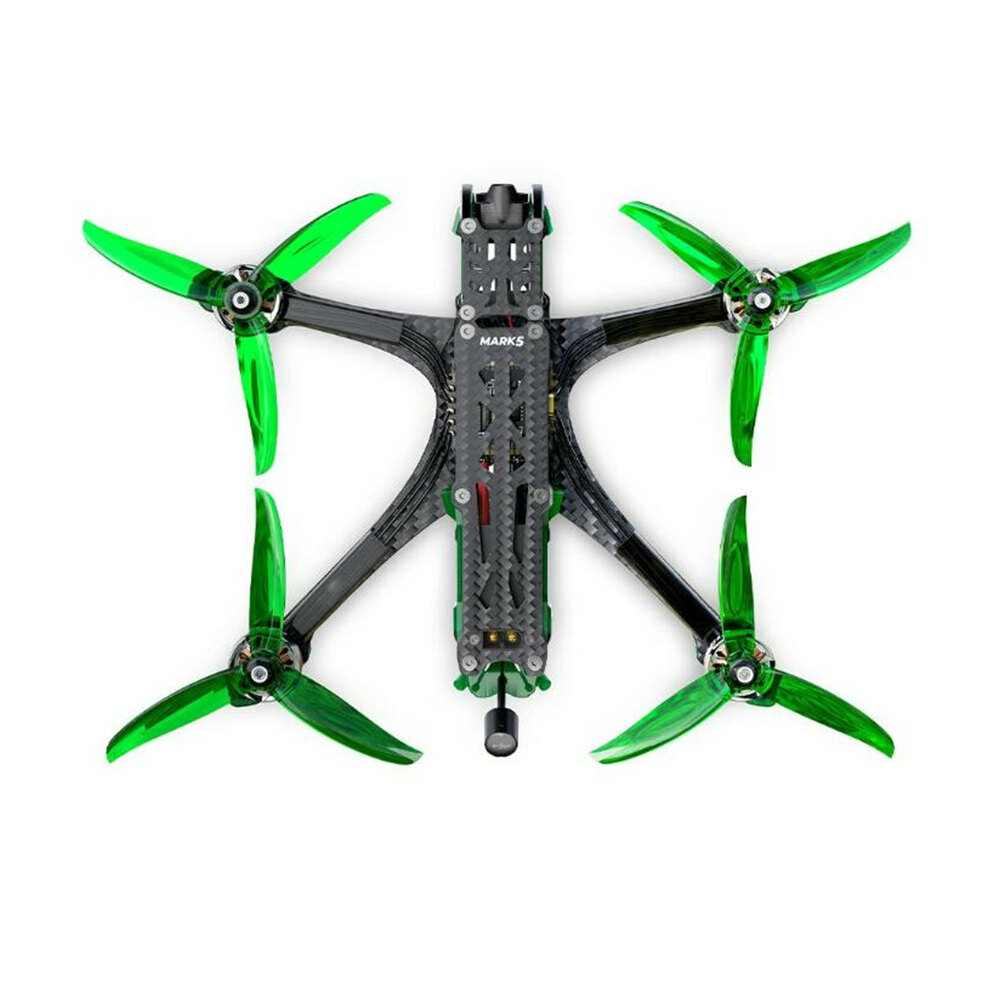

Model: MARK5 DC HD ( DJI O3 Air Unit Version)
Brand: GEPRC
Frame: GEP-MK5D (Deadcat type, Support DJI O3 Version)
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
Gyro: 42688-P(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: DJI O3 Air Unit
Camera: DJI O3
Propeller: Gemfan 5136
Antenna: DJI O3 antenna
Motor: SPEEDX2 2107.5-1960KV 6S Version
Weight: 426.0g ( including 3D printed parts)
Package Included:
1 x MARK5 DC HD Quadcopter ( DJI O3 Air Unit Version)
4 x Gemfan 5136 propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
2 x Battery Silicone Pads
1 x 3D printed parts
1 x Action cam mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
