Description

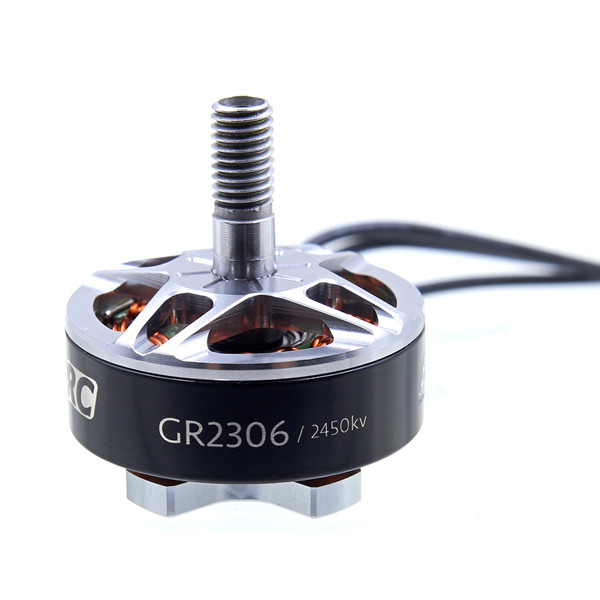

Geprc GR2306 2306 2450KV 2750KV 3-5S Brushless Motor for RC Drone FPV Racing
Specification:
Brand Name: Geprc
Model: GR2306
Item Name: 2306 2450KV 2750KV 3-5 Brushless Motor
KV: 2450KV / 2750KV ( Optional)
Screw Thread: CW Screw Thread
Lipo Input: Support 3-5S Lipo ( 2450KV)
2-4S Lipo ( 2750KV )
Configuration:12N14P
Stator Diamter:23mm
Stator Length:6mm
Shaft Diameter:4mm(Hollow)
Motor (Dimension(Dia.*Len)):Φ 28.49*30mm
Idle current(10)@10V(A):2.1 (2450KV) ; 2.6 (2750KV)
of Cells(Lipo):3~5S
Max Continuous (Power(W)15S):950
Internal Resistance:33mΩ (2450KV) ; 26mΩ (2750KV)
Max Current(15S):45A
Effciency Current:(4-8A)>81%
Rotor: N52H arc magnets
Bearings:NSK
Base casing: Al 7075
Wire AWG: 20AWG
Weight(g):32
Features:
– Super light base design and strong power take-off
– Elegant appearance design, strong airstream, stout structure and anti-impact
– The whole fuselage is high-precision CNC processing; the aviation aluminum alloy is 7075 aluminum materials, which is high precision and high intensity
– The maximum pull with 2750kv breaks through 1800g+
Package Included:
1x GR2306 Motor
,
,
