Description

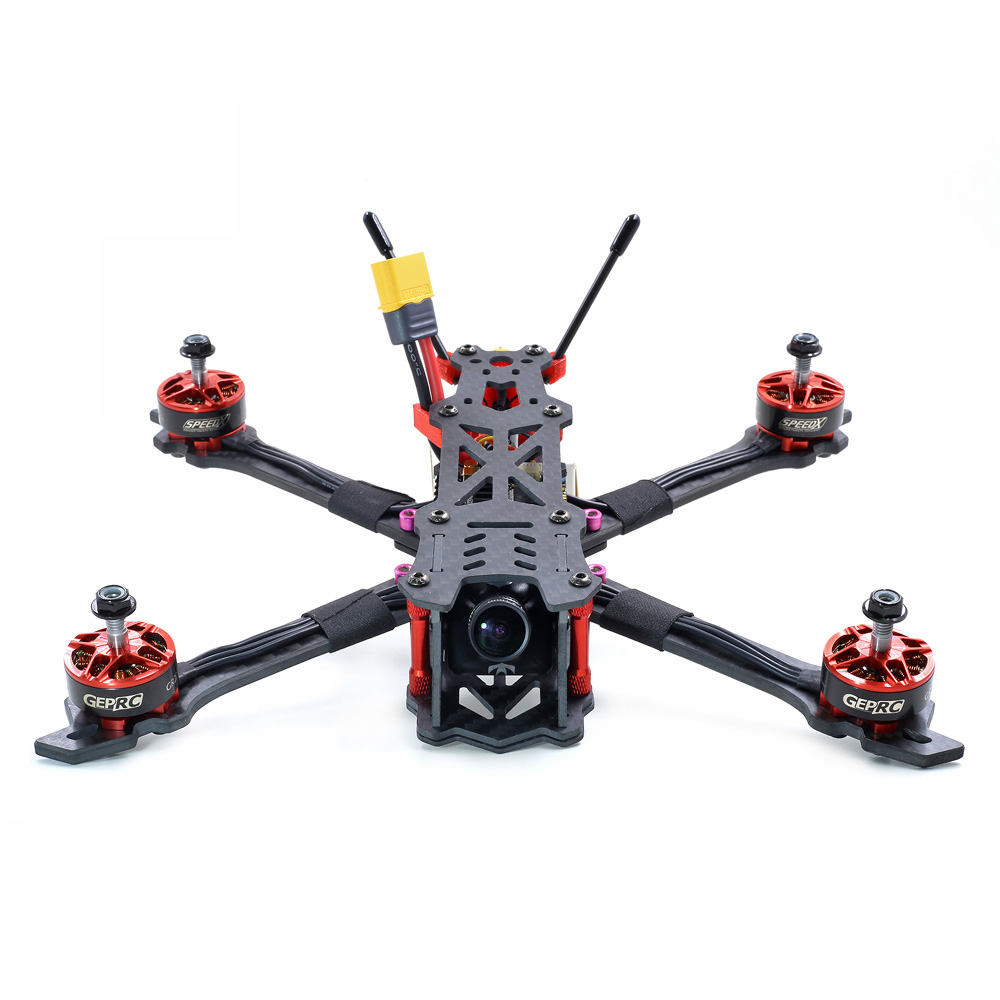

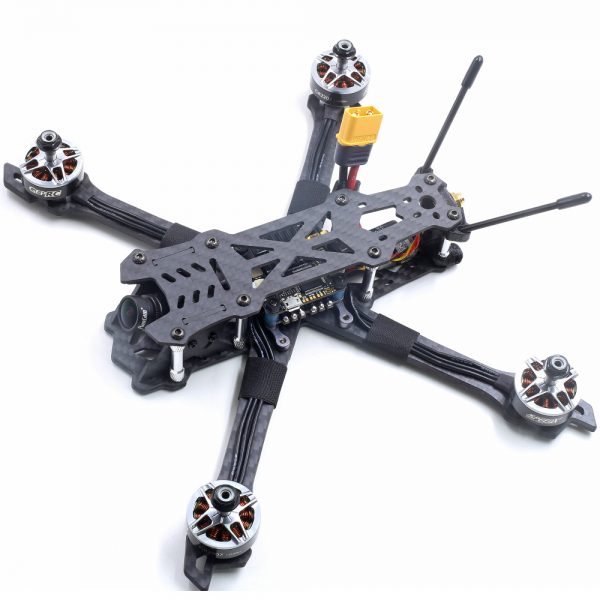

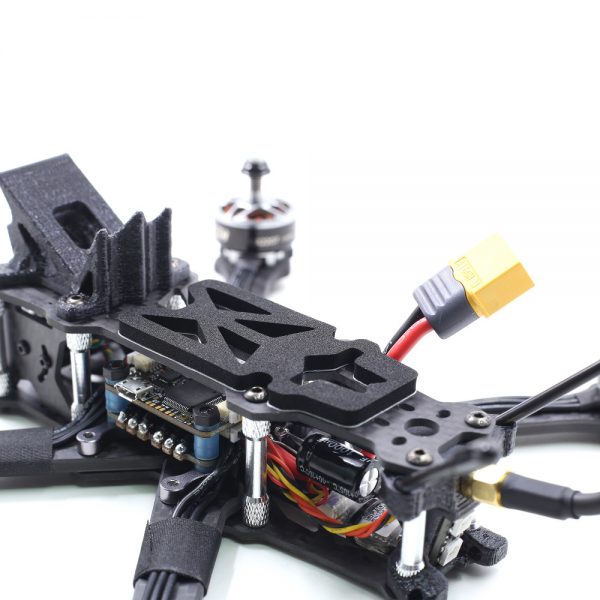

GEPRC Gep-Mark2 230mm FPV Racing Drone PNP/BNF F4 40A BLHeli_S Dshot600 5.8G 25/200/600mW VTX
Specifications:
Brand Name: GEPRC
Item Name: Gep-Mark2 FPV Racing Drone
Wheelbase: 230mm
Firmware: Betaflight_3.2.5_OMNIBUSF4SD
Input Voltage: Support 2-5S Lipo
Motor: GR2207 2400kv
Propeller: GEP5040*3 (10 pairs)
Weight: 330 grams without battery or props
Receiver: Frsky R-XSR (ONLY BNF INCLUDE)
Frame: GEPRC GEP-Mark2
Carbon: Full 3K carbon fiber Twill
CNC: High precision CNC 7075
Wheelbase: 230mm
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of lens plate: 2mm
Thickness of arms plate: 4mm
Flight Controller: SPAN F4 Tower AIO
MCU: STM32F405
MPU: MPU6000
ESC: 40A * 4 BLHeli_s (Dshot 150/300/600) support 2~5S LiPo
VTX: 5.8GHz (48 Channel) (OFF/25/200/600mW)
Features:
– GEP-Mark2 Frame All 3k carbon fiber board, sturdy and durableUse mature and stable
– Mainstream Freestyle frame, mechanical appearance design
– Use SPAN F4 Tower AIO fly Tower latest version, function is more optimized
1. F405 flight controller
2. ESC BLHeli_s 40A
3. VTX 5.8Ghz 0/25/200/600mW
– The GEPRC team carefully calibrated the PID to ensure reliability and stability, and the binding flew
– High efficiency GR-2207 2400kv motor, with GEP-5040 propeller, achieve perfect output
– Use the Pagoda2 antenna to determine the image quality
RunCam Swift 2 lens for clarity
Package Included:
1 x Mark2 BNF/PNP Quad
10 x GEP5040-3 Propeller
5 x Battery strap
1 x Spare Arms
2 x Carbon fiber A side plate (with video mount)
1 x 3D printing a mount (Red or black)
4 x 3D Arm Guards (Red or black)
2 x Pagoda2 RHCP SMA Antenna(1pcs installed)
1 x Frsky R-XSR Receiver(ONLY BNF)
