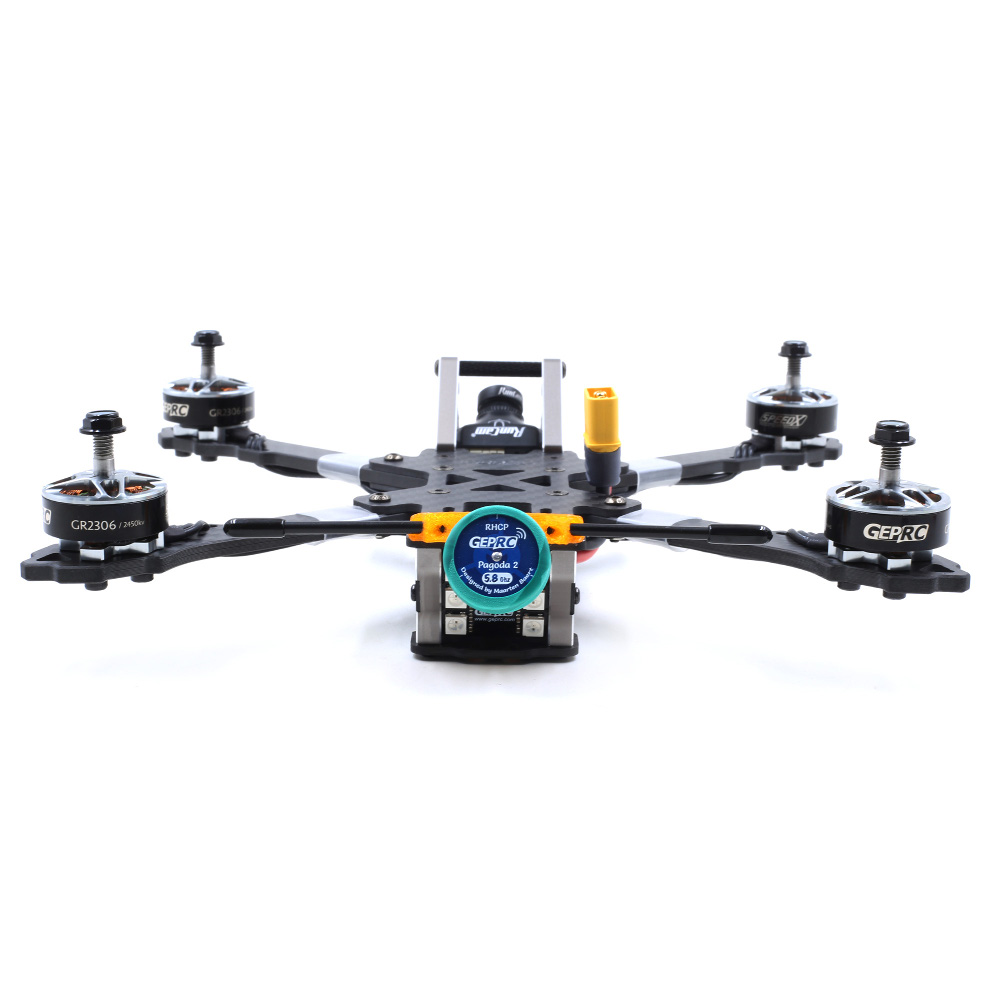

GEPRC GEP KHX5 Elegant 230mm RC FPV Racing Drone F4 5.8G 48CH 40A BLHeli_S Dshot600 PNP/BNF
Specifications:
Brand Name: GEPRC
Model: Elegant
Wheelbase: 230mm
Firmware: betaflight_3.2.5_OMNIBUSF4SD
Input Voltage: support 2-5S Lipo
Motor: GR2306 2450KV
Propeller: GEP5040*3 (10 pairs)
Weight: 348 grams without battery or props
Receiver: R-XSR (ONLY BNF INCLUDE)

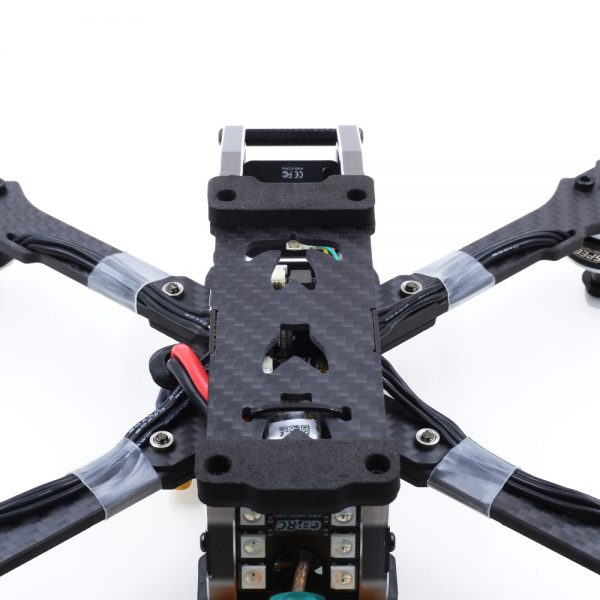

Frame: GEPRC GEP-KHX5
Carbon: Full 3K carbon fiber Twill
CNC:High precision CNC 7075
Wheelbase: 230mm
Thickness of bottom plate: 2mm
Thickness of side plate: 1.5mm
Thickness of arms plate: 4mm
Flight Controller: SPAN F4 Tower AIO
MCU: STM32F405
MPU: MPU6000
ESC: 40A * 4 BLHeli_S (Dshot 150/300/600) support 2~5S LiPo
VTX: 5.8GHz (48 Channel) (OFF/25/200/600mW)
Features:
Frame layout is reasonable, center of gravity center, reduce energy waste
Use mature and stable GEP-KHX5 frame, strong and fall – resistant, all 3k carbon plate
Use SPAN F4 Tower, stable and simple
The GEPRC team carefully calibrated the PID to ensure reliability and stability, and the binding flew
High efficiency GR2306 2450kv motor, with GEP5040 propeller, achieve perfect output
Use the Pagoda2 antenna to determine the image quality
Runcam Swift 2 lens for clarity
Package Included:
1X GEPRC Elegant BNF/PNP Quad
10X GEP5040 Propeller CW
10X GEP5040 Propeller CCW
3X Battery Strap
1X Spare Arms
2X Pagoda2 RHCP MMCX Antenna(1pcs installed)
1X Frsky R-XSR Receiver ( BNF Only)
