GEPRC GEP-KHX4 KHX5 KHX6 Elegant 200mm 230mm 260mm Wheelbase Carbon Fiber FPV Racing Frame Kit
| Specifications | ||
| Brand name | GEPRC | |
| Item name | GEP-KHX4 / GEP-KHX5 / GEP-KHX6 Elegant | |
| GEP-KHX4 | Arms board: 4mm Base board: 2mm Side board: 1.0mm Props Size: 4 inch Size Weight |
Motors ESC Propeller Battery: 3S 1300mAh ~ 4S 1500mAh |
| GEP-KHX5 | Wheelbase:230mm Arms board:4mm Base board:2mm Props Size: 5 inch Size Weight |
Motors: 2204/2205/2206/2305/2306 ESC: 20A-50A Propeller: 5 inch Battery: 3S 1300mAh ~ 4S 1500mAh |
| GEP-KHX6 | Wheelbase: 260mm Arms board:4mm Base board:2mm Props Size: 6 inch Size Weight |
Motors: 2204/2205/2206/2305/2306 ESC: 20A-50A Propeller: 6inch Battery: 3S 1300mAh ~ 5S 1500mAh |
Features:
– The weight of the battery is above the arm, the overall center is balanced, and each motor output is balanced and efficient.

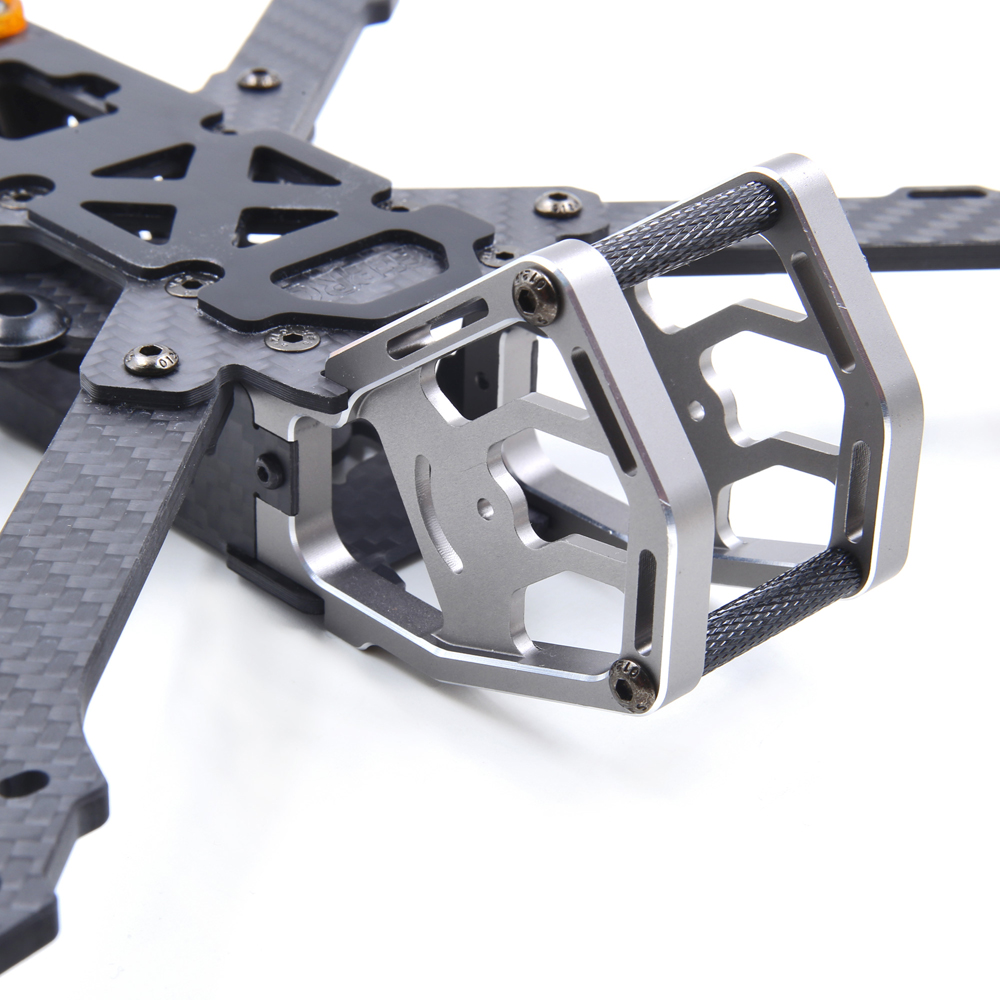

– The camera position USES 7075 aviation aluminum alloy, high precision, very strong. And it forms a 33-degree gopro position.
– All 3k Japanese carbon plate, 14mm narrow arm structure, reduce air resistance.
– Hybrid X structure, shortening wheelbase, flexibility and stability.
– Integrated LED lights, buzzer.
– Side panel design to effectively protect the electronic equipment inside the fuselage.
– YFS screw, 12.9 level hardness.
Package Included:
1 x Frame Kit
