Description

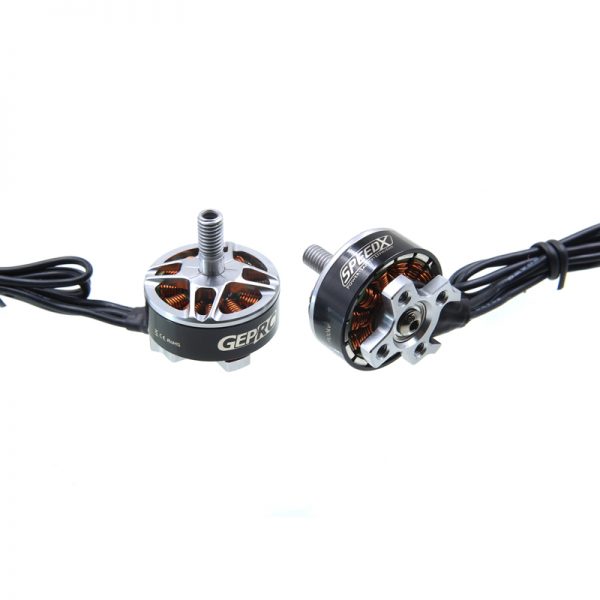

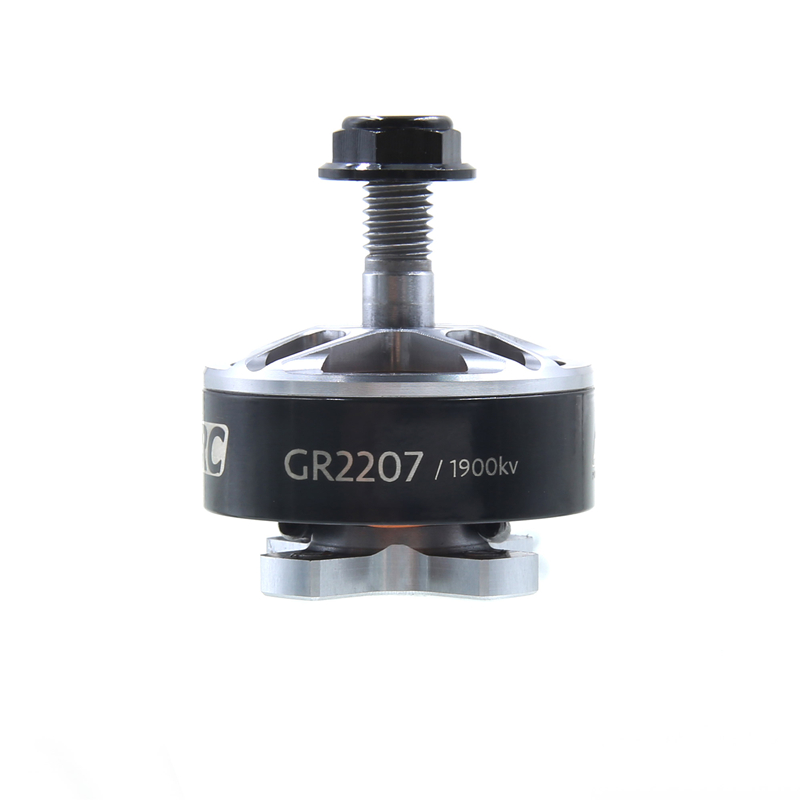

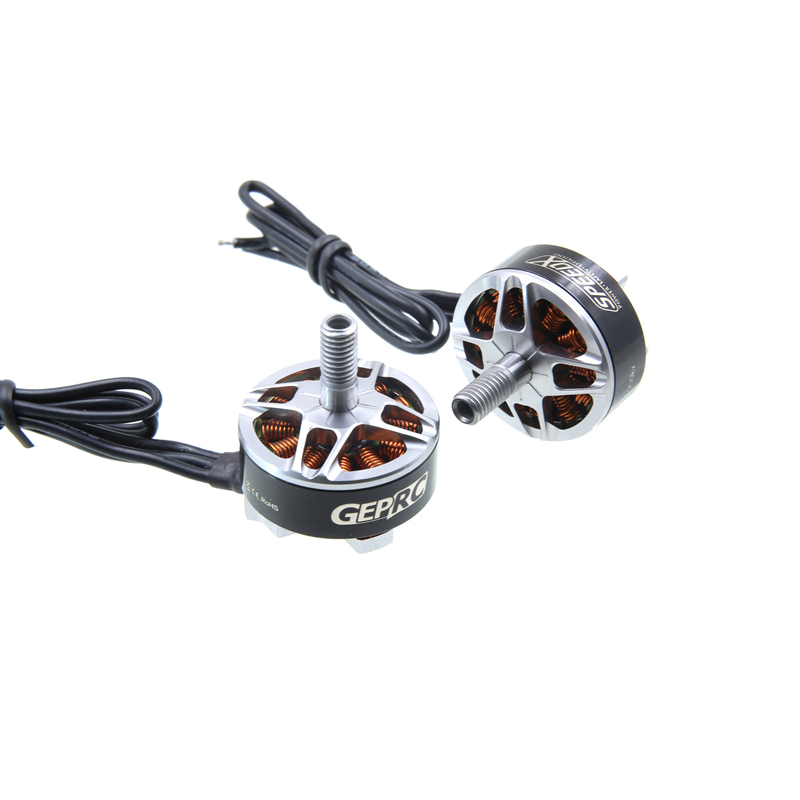

GEPRC GEP-GR2207 2207 1900KV 2400KV 2700KV Brushless Motor For RC Drone FPV Racing Multi Rotor
Summary:

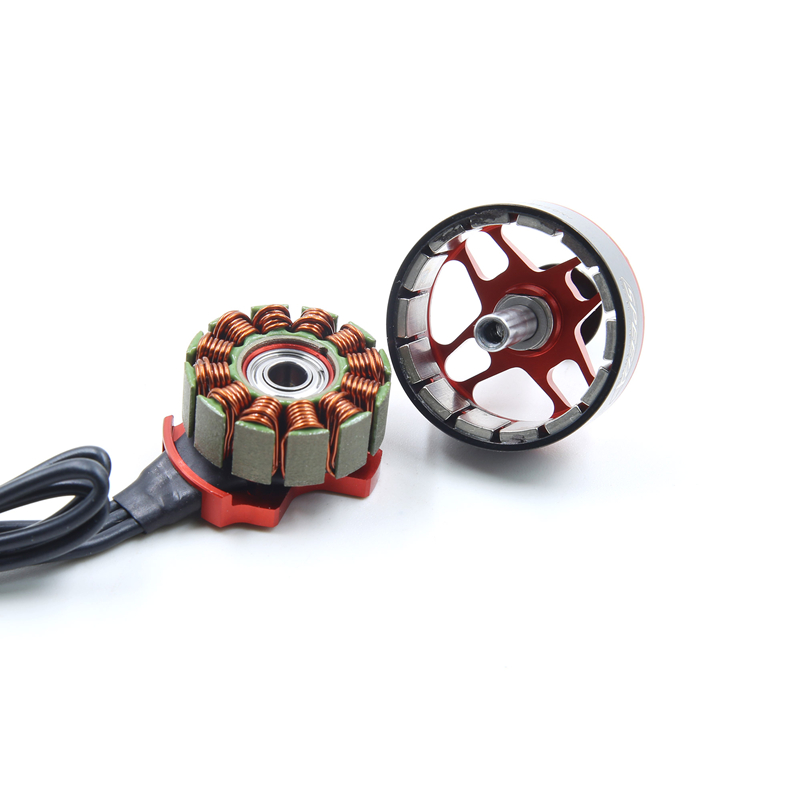

The exterior of GEP-GR2207 still USES the four-sided structure of GR2306, which is durable and beautiful.
GR2207 is made of advanced materials, including NSK bearings, 7075 aluminum, high precision CNC, N52H arc magnets, etc. GR2207 provides 3 kv, which is 1900kv, 2400kv and 2700kv respectively. Each kv can meet different needs. 1900kv is efficient for long range flight. The 2400kv is suitable for Freestyle flight, efficient and powerful. 2700kv is more suitable for racing. In addition, GR2207 also provides two colors, Chinese red and titanium.
Description:
Brand name: GEPRC
Item name: GEP-GR2207
Configuration: 12N14P
Stator diamter: 22mm
Stator length: 7mm
Shaft diameter: 4mm (Hollow)
Motor (dimension(Dia.*Len)): Φ26.7*30.5mm
Rotor: N52H arc magnets
Bearings: NSK
Base casing: Al 7075
Wire AWG: 20AWG
Weight(g): 31
KV: 1900kv
Idle current(10)@10V(A): 1.8
No.of cells(Lipo): 4~6S
Max continuous (power(W)15S): 900
Internal resistance: 48mΩ
Max current(30S):40A
Max.effciency current:(3-6A)>83%
KV: 2400kv
Idle current(10)@10V(A): 2.4
No.of cells(Lipo): 4~5S
Max continuous (power(W)15S): 950
Internal resistance: 39mΩ
Max current(30S): 45A
Max.effciency current: (3-7A)>82%
KV: 2700kv
Idle current(10)@10V(A): 2.8
No.of Cells(Lipo): 4~5S
Max continuous (power(W)15S): 1000
Internal resistance: 29mΩ
Max current(30S): 48A
Max.effciency current: (4-8A)>81%
Features:
1. NSK high-efficiency bearings
2. 0.15mm silicon steel laminations
3. N52H arc magnets
4. Al 7075 CNC
5. 3 KV 1900/2400/2700kv
6. The weight is 32g only
Package included:
1 x GEPRC GR2207 motor
1 x GEPRC M5 aluminum lock nut
4 x M3x6 button head screws
4 x M3x7 button head screws
4 x M3x8 button head screws
,
,
,
,
,
,
,
,
,
,
