Description

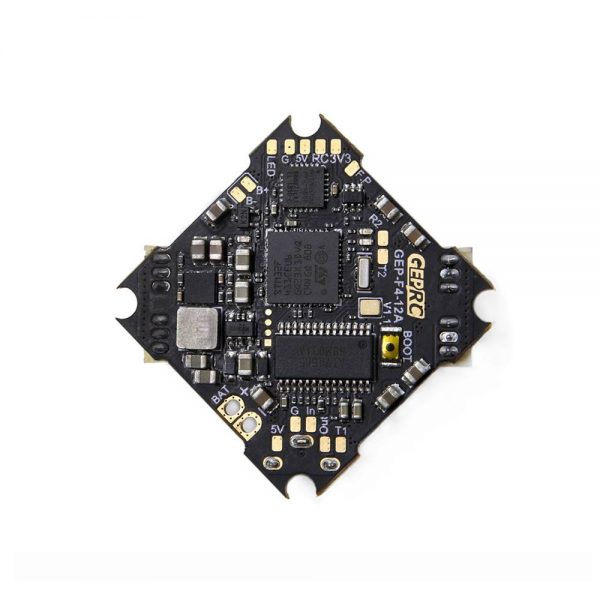

GEPRC GEP-12A-F4 V1.1 F411 Flight Controller AIO OSD BEC & 12A BL_S 4In1 ESC for RC Drone
Specification:
Brand Name: Geprc
Model: GEP-12A-F4 V1.1
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V@1A
Integrated LC Filter
Firmware target: MATEKF411
ESC MCU: BB21F16G
Continuous current: 12A
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Current meter: 210
Target: G_H_30
Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
Installing Hole: 25.5×25.5mm, M2
Weight: 5.6g
Features:
– BLheli_S 12A ESC GEP-12A-F4 the largest support 4S Lipo battery, with Current meter
– Silica gel shock absorption, solve the problem of vibration
– F411 Flight Controller
– MPU6000 Gyro
– Include Buzzer pad
Package Included:
1 x GEPRC F4 FC Built-in 12A ESC Board
1 x Power cable
8 x Screw
8 x Screw
4 x Soft Silicone
