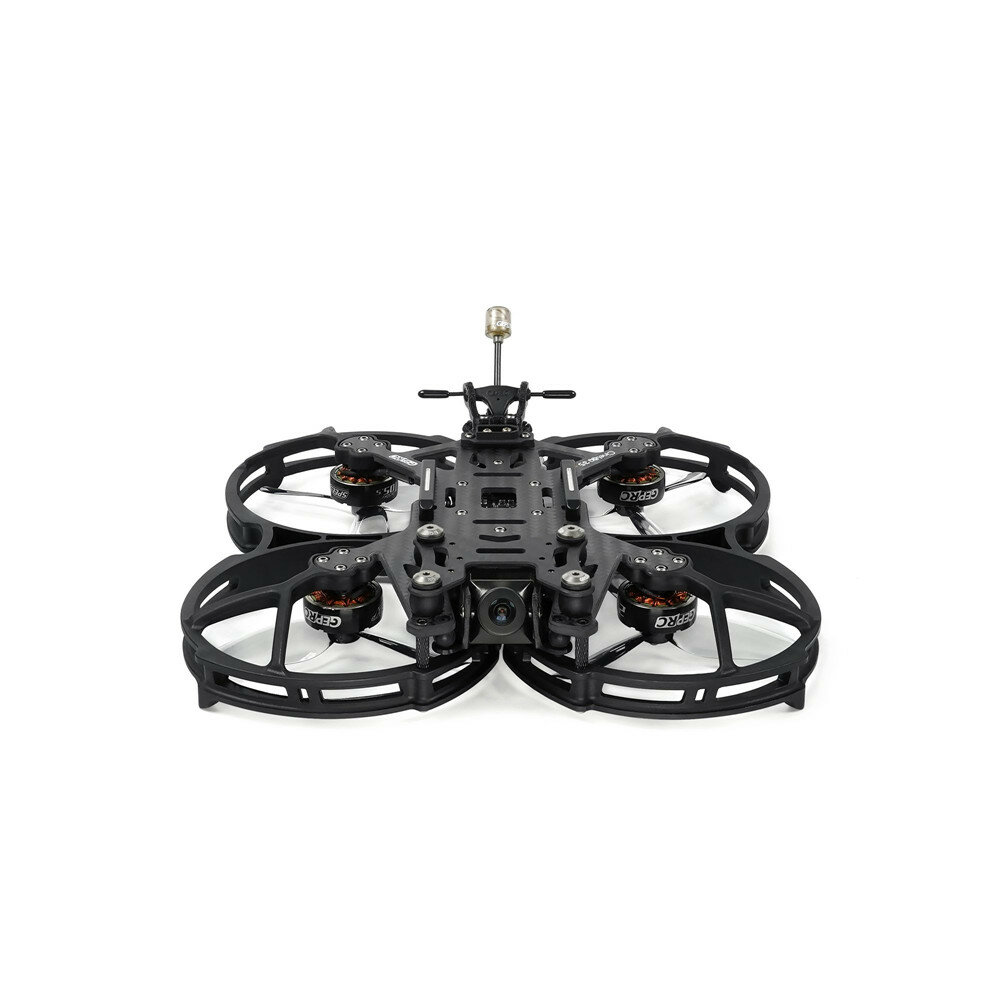

Geprc Cinelog35 V2 Analog 142mm Wheelbase F722 45A AIO V2 6S 3.5 Inch Cinewhoop FPV Racing Drone PNP BNF with 1W VTX Caddx Ratel2 FPV Camera
$342.99
Description
Notice:
Changelog
May 8, 2023: CineLog35 V2 motor changed from SPEEDX2 2105.5 2150KV(6S) to SPEEDX2 2105.5 2650KV (6S).
Feature
New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
Adopts the GEP F722-45A AIO V2 high performance flight controller.
SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.
Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
Specification:
Model: Cinelog35 V2 Analog
Frame: GEP-CL35 V2
Wheelbase: 142mm
Gimbal Plate: 2.0mm
Top Plate: 3.5mm
Bottom Plate: 1.5mm
FC system:GEP-F722-45A AIO V2
MCU: STM32F722RET6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 45A
VTX: GEPRC 1W(UFL)
Camera: Caddx Ratel2
Antenna:GEPRC Peano 5.8 RHCP UFL
Motor: SPEEDX2 2105.5-2150KV(6S)
Propeller: HQProp D-T90MM
GPS: GEP-M8U ( Optional)
CineLog35 V2 Analog TBSNanoRX weight: 263.8g
Receiver: PNP, GEPRC ELRS2.4G, TBS Nano RX
Recommended battery:LiPo 1050mah-1300mah ( NOT Included)
Flight time:5′00″ -8′ 30″
Package Included:
1 x Cinelog35 V2 Analog
2 x HQProp D-T90MM(2 pairs)
2x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
1 x plastic tweezers
1 x Antenna fixed tube (pair)
1 x Keychain
1 x Mounting Base for GoPro
1 x Mounting Base for Naked Gobro
1 x Antenna Mounting Base
Additional information
Weight | 0.3 kg |
---|
