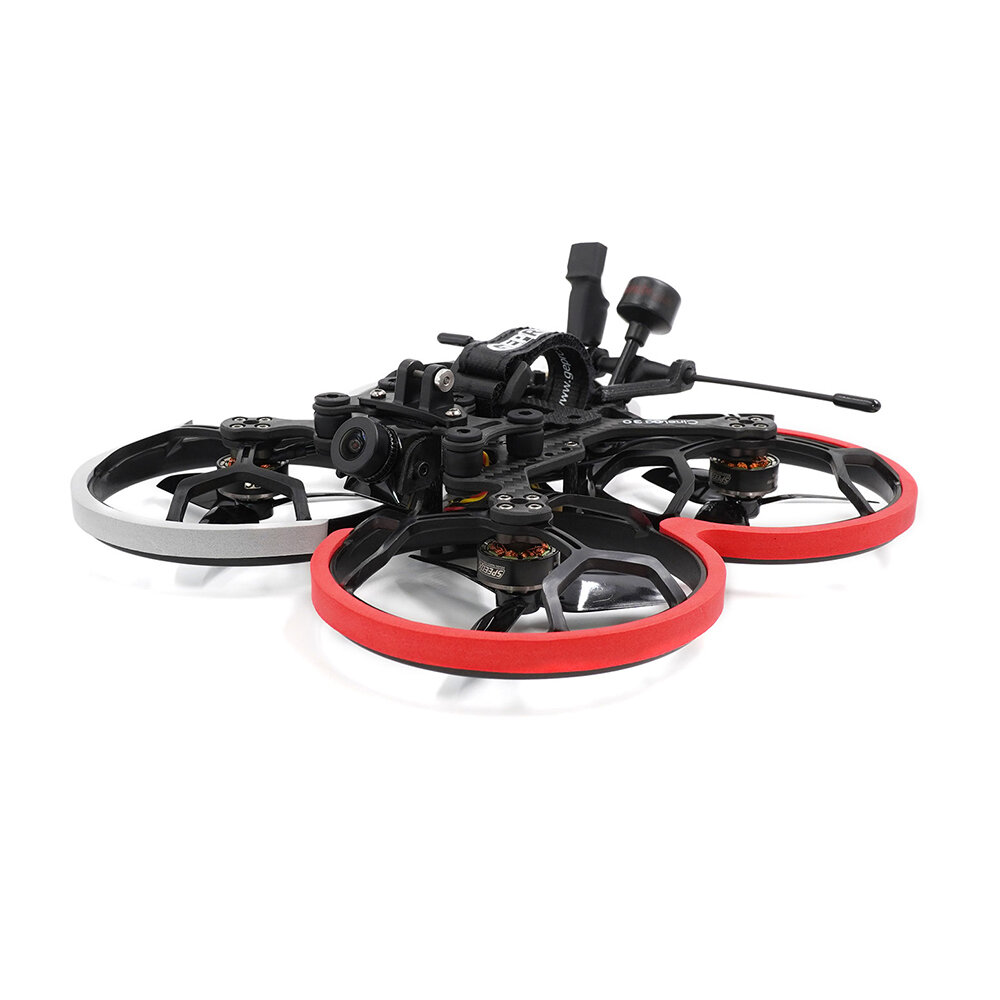

GEPRC CineLog30 Analog 126mm 3 Inch 4S FPV Racing Drone PNP BNF w/ F4 AIO 35A ESC 600mW VTX Caddx Ratel 2 1200TVL Camera

Description

Introduction:

CineLog30 is developed on the basis of cinglog25. It has a stronger power output with 1404-3850kv motor and T3 x 3 x 3 propellers.Ultra light fuselage weight, and CineLog30 Analog equipped with 4s660mah battery take-off weight is only 204g.The duration of the flight is 7.5 minutes.The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed,with the mounting base.

We pursue lighter weight, better flying feel and more extended functions of the Quadcopter.

Features:

Small size, light weight, with GEPRC 4S 660mAh battery, take-off weight is only 204g.

The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed, with the mounting base.

Continue the unique design damping pan tilt ， and adjust the number of damping balls according to the scene.

1404-3850KV motor with T3x3x3 propellers, strong power output.The duration of the flight is 7.5 minutes by 4S660mAh LIPO Battery.

Description:

Brand: GEPRC

Model: CineLog30 Analog

Item Name: 126mm F4 3 Inch FPV Racing Drone

Receiver: PNP(Without Receiver)/Frsky RXSR /TBS Nano RX (Optional)

Antenna: GEPRC Momoda 5.8g MMCX RHCP 100mm

CineLog30 Analog weight: 140g

126mm Frame Kit	Frame: GEP-CL30 Motor to Motor: 126mm Top plate: 2.0mm Bottom plate: 2.0mm Arm plate:3.0mm
F4 Flight Controller AIO 35A ESC	Model: GEP-F411-35A AIO FC MCU: STM32F411 IMU: MPU6000 gyro/accelerometer(SPI) Target: GEPRC_F411_AIO OSD: Betaflight OSD w/ AT7456Ev UART Ports: T1 R1 / T2 R2 Beep: YES LED: YES USB Connector: micro USB
Onboard 35A BL_S 4in1 ESC	ESC MCU: 8BB21F16G Intergrated LC Filter Continue Current: 35A Burst Current: 40A(10s) Input Voltage: 2~6S (LIPO Battery) ESC Protocol: Dshot300/600,Oneshot42/125,Multishot Current meter: 210 Blackbox:16Mb ESC Target: G_H_30 BLS Size: 32x32mm Board Mount Holes: 26.5×26.5mm,M2 Weight: 8.3g
GR1404 3850KV Brushless Motor	Configuration: 9N12P Stator Diamter: 14mm Stator Length: 4mm Shaft Diameter: 1.5mm Motor Dimensions: Φ18.3 * 14.5mm The hole position of motor: 9mm
T3X3X3 3030 3 Inch 3-Blade Propeller	Quantity: 2 CW & 2 CCW
GEP-600mW-VTX	GEP-600mW-VTX
Caddx Ratel 2 1200TVL FPV Camera	Input Power:DC 5-40V Dimensions:19mm*19mm*20mm

Remmended Lipo Battery: ( NOT Included)

Battery: GEPRC 4S 660mAh

Flight Time: With naked GoPro8(sub250g): 4S 660mAh 7-8min

Package Included:

1 x CineLog30 Analog Quadcopter

1 x Battery straps 20x200mm

2 x T3x3x3 propellers (pair)

2 x Propeller guards

2 x EVA damping rings of guard

2 x EVA landing pads

2 x Battery Silicone Pads

1 x OSD parameter adjusting board

1 x Antenna fixed tube

1 x Screw package

1 x TBS receiver mount（PNP）

1 x TBS receiver antenna mount (PNP)
