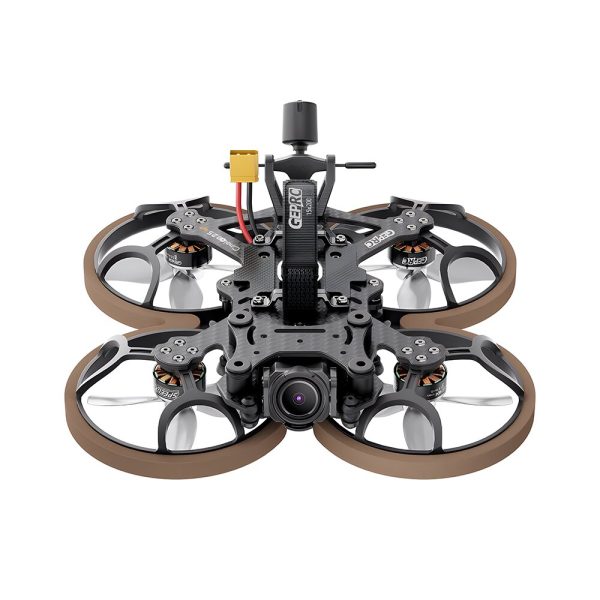

GEPRC Cinelog25 Cinelog 25 V2 HD DJI O3 2.5 Inch 4S RC FPV Racing Drone with TAKER G4 35A AIO ESC Digital HD System

Description

Summary

From progress to evolutin, a comprehensive reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.

This upgrade of Cinelog25 V2 has launched three video transmission versions, the most important of which is the DJI O3 Air Unit video transmission version. Based on the DJI O3 Air Unit’s built-in anti-shake requirements for fuselage shock, the Cinelog25 V2 can achieve excellent anti-shake effects by matching the camera damping ball.

It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance.Install the propeller guard which can effectively prevent people from being injured due to flight mistakes.Equipped with GPS M10 chip, quickly search for satellites.

Cinelog25 V2 is a 2.5-inch high-definition FPV that integrates indoor and outdoor flying. Developed by the GEPRC team,the flight feels delicate and the experience is good.

Feature:

1. Add DJI O3 Air Unit image transmission version,ultralight weight within 250g.Fit with FAA flight standards.

2. The DJI  O3 cemera design is independently attached to the shock-absorbing gimbal to solve the camera IMU resonance problems and achieve the best video anti-shake effect.

3. Designed aluminum parts with cable ties to facilitate the change of batteries.

4. Use the new TAKER G4 35A AIO, has better computing power.ESC over-current protection makes it stable and reliable.

5. Design propeller guard, which can effectively prevent people from flight mistakes.

6. The fuselage is small and compact, suitable for indoor and outdoorMounting Naked GoPro8 to shoot beautiful videos.

Specifications:

· Model: Cinelog25 V2 HD ( DJI O3)

· Frame: GEP-CL25 V2

· Wheelbase: 114mm

· Gimbal plate: 2.0mm

· Top plate: 2.5mm

· Bottom plate: 2.0mm

· FC system: TAKER G4 35A AIO

· MCU：SMT32G473CEU6

· Gyro: ICM 42688-P

· OSD: Betaflight OSD w/AT7456E

· ESC: 8Bit 35A

· VTX: DJI O3 Air Unit

· Camera: DJI O3 Camera

· Antenna: DJI O3 Original Antenna

· Motor: SPEEDX 1404 4500KV

· Propeller: HQProp DT63mm*4

· PNP Version weight: 174g±5g

· Receiver: PNP(built-in DJI O3 Air Unit receiver) / GEPRC ELRS 2.4G / TBS Nano RX

· Recommended battery ( NOT Included):

4S 660mah-850mah LiPo XT30

· Flight time: 4′00″ -6′ 00″

Package List:

1 x Cinelog25 V2 HD Quadcopter ( DJI O3)

2 x HQProp DT63mm*4（2pairs）

1 x  Battery strap M15*200mm

1 x  Battery strap M15*150mm

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver 1.5MM

1 x Keychain

1 x Naked Camera GP8 base

1 x T-type Antenna mount
