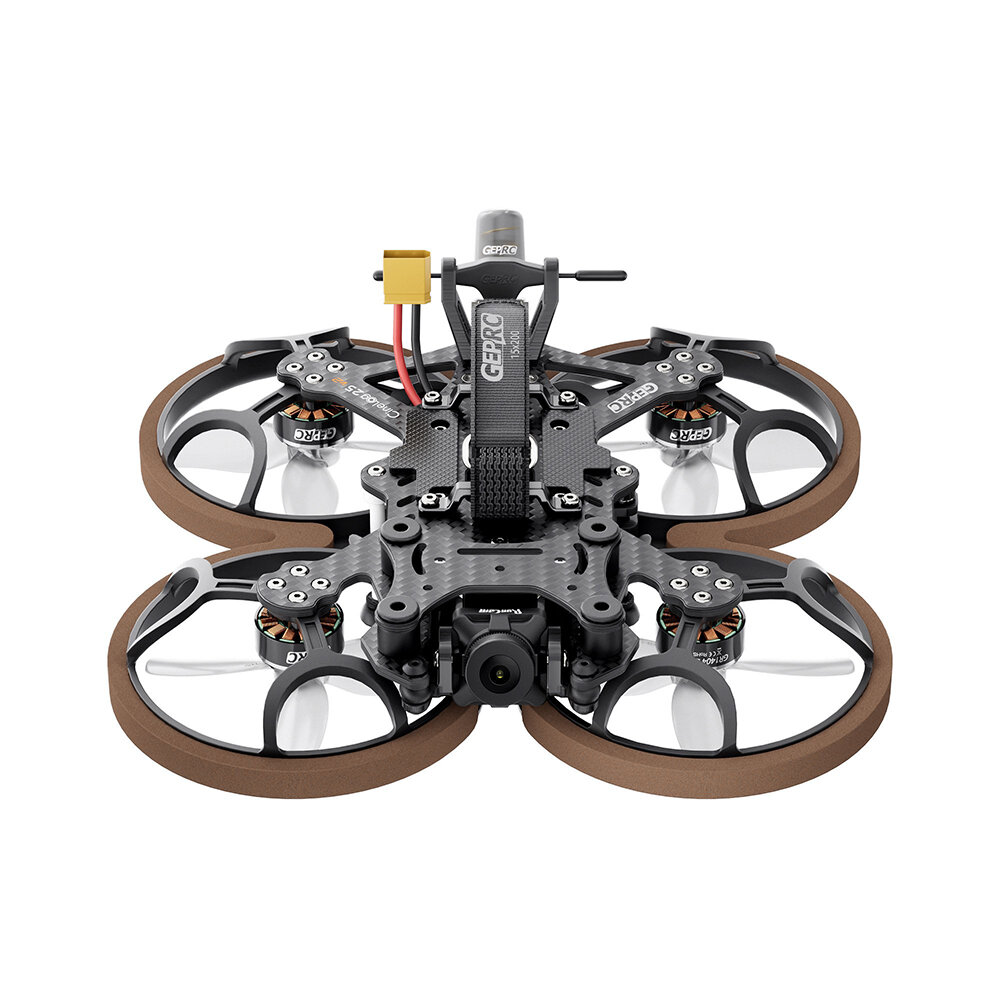

GEPRC Cinelog25 Cinelog 25 V2 HD 2.5 Inch 4S RC FPV Racing Drone PNP BNF with TAKER G4 35A AIO ESC Runcam Link WASP Digital System

Description

Summary

From progress to evolutin, a comprehensive reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.

It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance.Install the propeller guard which can effectively prevent people from being injured due to flight mistakes.Equipped with GPS M10 chip, quickly search for satellites.

Cinelog25 V2 is a 2.5-inch high-definition FPV that integrates indoor and outdoor flying. Developed by the GEPRC team,the flight feels delicate and the experience is good.

Feature

1. Designed aluminum parts with cable ties to facilitate the change of batteries.

2. Use the new TAKER G4 35A AIO, has better computing power.ESC over-current protection makes it stable and reliable.

3. Design propeller guard, which can effectively prevent people from flight mistakes.

4. The fuselage is small and compact, suitable for indoor and outdoorMounting Naked GoPro8 to shoot beautiful videos.

Specifications

· Model:Cinelog25 V2 HD Wasp Quadcopter

· Frame: GEP-CL25 V2

· Wheelbase: 114mm

· Gimbal plate: 2.0mm

· Top plate: 2.5mm

· Bottom plate: 2.0mm

· FC system: TAKER G4 35A AIO

· MCU：SMT32G473CEU6

· Gyro: ICM 42688-P

· OSD: Betaflight OSD w/AT7456E

· ESC: 8Bit 35A

· VTX: Runcam Link

· Camera: Runcam Wasp

· Antenna: GEPRC Peano 5.8G LHCP UFL

· Motor: SPEEDX 1404 4500KV

· Propeller: HQProp DT63mm*4

· Cinelog25 V2  HD Wasp PNP weight: 167g±5g

· Receiver: PNP(built-in Link receiver) / GEPRC ELRS24 / TBS Nano RX

· Recommended battery( NOT Included):

4S 660mah-850mah LiPo XT30

· Flight time: 4′00″ -6′ 00″

Pacakge Includes:

1 x Cinelog25 V2 HD Wasp Quadcopter

2 x HQProp DT63mm*4（2pairs）

1 x  Battery strap M15*200mm

1 x  Battery strap M15*150mm

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver 1.5MM

1 x Keychain

1 x Naked Camera GP8 base

1 x T-type Antenna mount
