Description
Feature:
– Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.
– Equipped with Runcam Link Wasp HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.
– 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
– SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
Continuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when compatible with GoPro Naked mounted.
The GEPRC Team sblendid tuning and the overall flight feel are delicate and flexible.
Specification:
Brand: Geprc

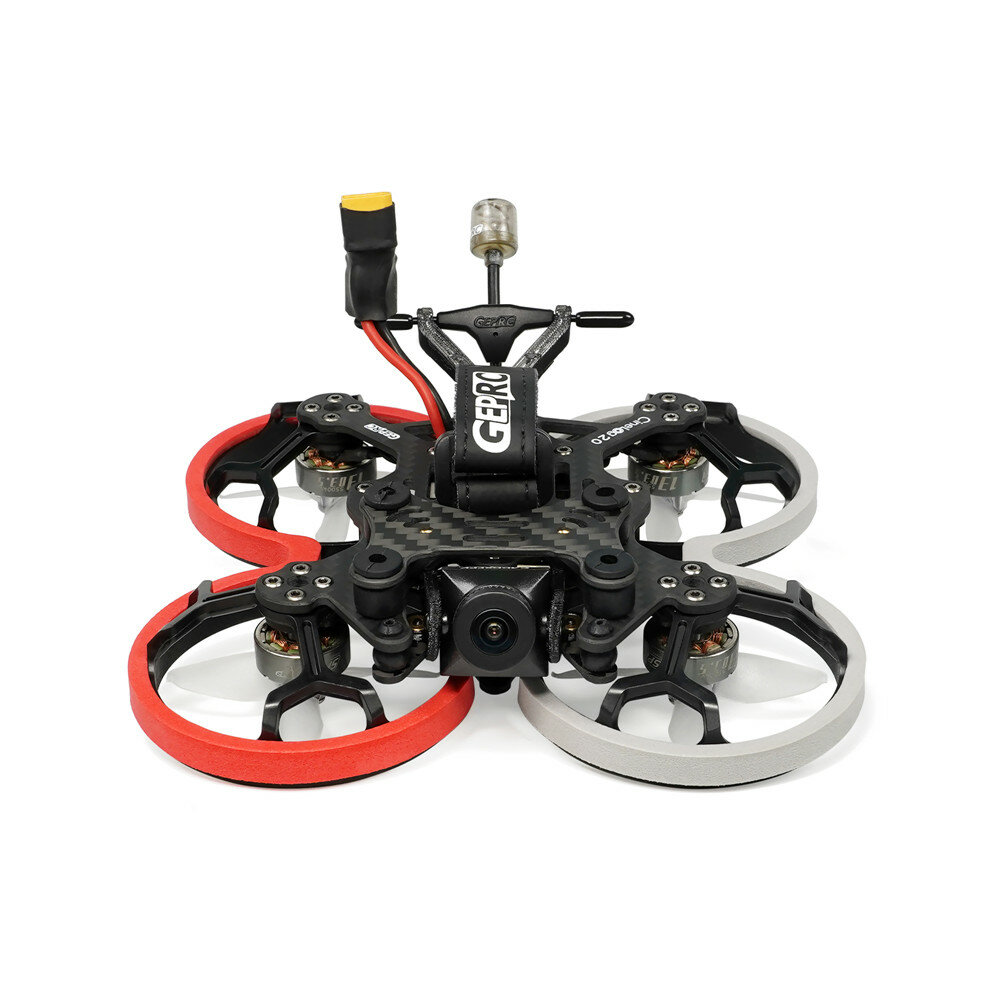

Model: Cinelog20 Analog
Frame: GEP-CL20
Wheelbase: 100mm
Gimbal plate: 2.0mm
Top plate: 2.5mm
Bottom plate: 1.5mm
FC system: GEP-F411-35A AIO
MCU: STM32F411CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: 8Bit 35A
VTX: GEPRC 5.8G@600mw
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP MMCX
Motor: GR1303.5 5500KV
Propeller: EMAX Avan Micro 2×2.4×4
TBSNanoRX weight: 116g
Recommended Lipo Battery: ( NOT Included)
LiHv 4S 450-660mah Lipo, Flight time:4-6min
Package Included:
1x Cinelog20 Analog FPV Drone (Analog)
