Description
Summary:

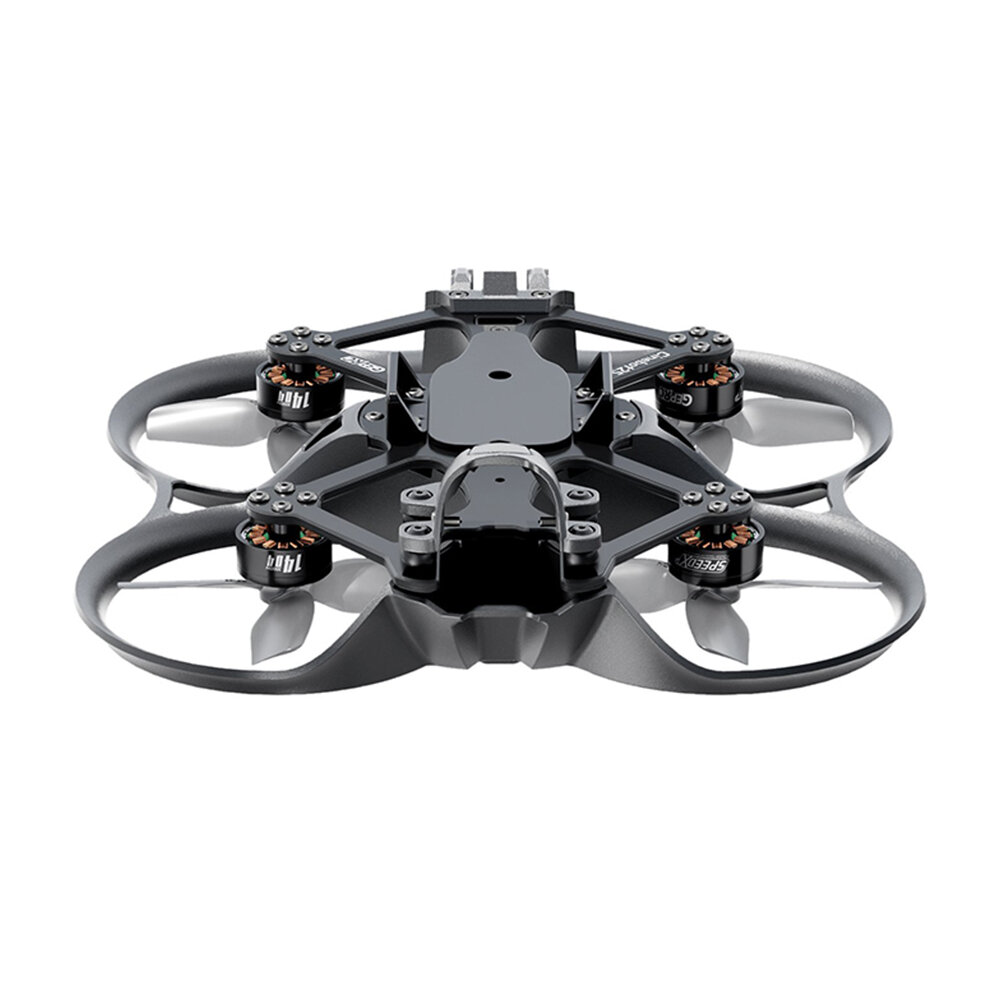

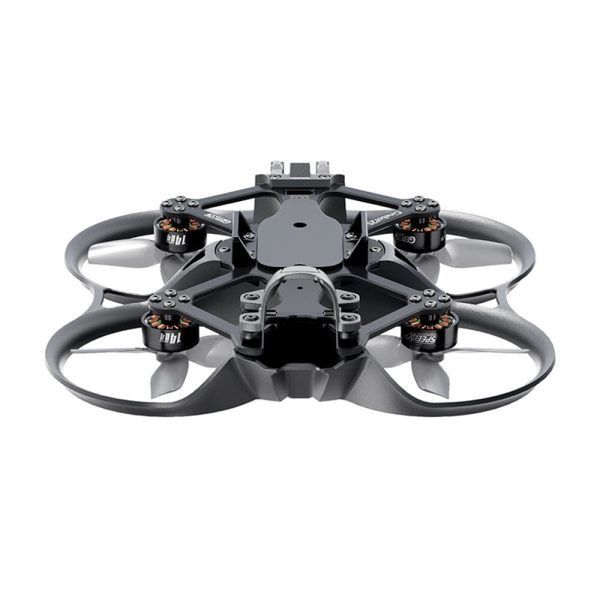

Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.
Cinebot 25 comes with two different options for the power version. They are the standard version with the SPEEDX2 1404 motor and the S(sport) version with the SPEEDX2 1505 motor.
After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A AIO FC that will breathe new life into the footage-shooting experience.
Feature:
1. Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.
2. The shock-absorbing protection cover of the camera provides better stability for footage shooting.
3. Two power versions are available: the regular one with SPEEDX2 1404 motor and the superior one with SPEEDX2 1505 motor.
4. The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.
5. Optimized silicone T-shaped antenna fixing component.
6. Cinebot25 Lite quadcopter eqquiped with a LiHV 4S 720mAh battery that weighs less than 250g. ( not included battery in package)
7. Equipped with the new TAKER G4 45A AIO, the G4 FC has a stable flight computing capability. An integrated 45A BL32 ESC possesses strong discharge capability that supports a refresh rate of up to 128K PWM.
8.The compatibility between DJI O3 VTX and Cabinet makes the installation of memory cards and footage loading easier.
9.The customized fixing stand of the receiver simplifies the internal space.
10.Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.
Specifications:
Brand: Geprc
Model: Cinebot25 WTFPV / Cinebot25 S WTFPV
Item Name: 2.5 Inch 4S RC FPV Racing Drone NO VTX NO Camera
| Optional Version | Standard | Sport Version |
| Model | Cinebot25 WTFPV | Cinebot25 S WTFPV |
| Brushless Motor | SPEEDX2 1404 4600KV | SPEEDX2 1505 4300KV |
Frame: GEP-CT25 Grey
Wheelbase: 115mm
FC: TAKER G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
FC firmware: TAKERG4AIO
ESC: BLHeli 32Bit 45A
Propellers: HQprop DT63mm x4
Connector: XT30
VTX: None
Camera: None
Antenna: None
Weight: 138g±1g ( Standard PNP Version) / 145g±1g ( Sport PNP Version)
Recommended battery: ( NOT Included)
LiHV 4S 660mAh-720mAh
Flight Time：5′-8’（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）
Recommend VTX & Camera: ( NOT Included)
Support Analog VTX & FPV Camera
Also support Digital HD Syestem: DJI O3 Air Unit / Runcam LINK WASP
Includes:
1x Drone
1x HQprop DT63mmx4 propeller（pack）
2x Battery anti-slip pads
1x 15*150mm battery strap
1x 15*180mm battery strap
1x Naked Gobro base
1x heat sink for DJI O3
1x 19*19mm lens cover
2x extension cords for DJI O3 antenna
1x Reserved screw pack
1x L-shaped screwdriver 1.5mm
1x Frequency paring pointer
1x Damping ball puncher
Reserved screw pack includes:
2 x Camera damping balls
4 x M2 nuts
6 x M2*6 button head screws
4 x M2*18 button head screws
4 x M1.6*8 round Head screws with collar
4 x M2*5 button head screws
4 x M1.6*10 allen screws
2 x M2*12 button head screws
2 x M2 self-clinching nuts
2 x T-shaped antenna fixing silicones
