Description
Geprc 20x20mm Stable Flytower 20A BL_S ESC & Omnibus F4 Flight Controller & 48CH 25/100/200mW VTX for RC Drone
Specifciation: ( Manual)
Brand Name: Geprc
Model: Stable Mini Flytower F4-20
Item Name: 20x20mm 20A BL_S ESC & Omnibus F4 Flight Controller & 48CH 25/100/200mW VTX Flytower
Size:27×27mm
Installation height:20mm
Screws:M2×25mm
Mounting Hole: 20x20mm
Recommended the plate thickness: 2-4mm
Weight: 9.5g
48CH Off/25/100/200mW Switchable VTX (Top Level)
VTX Power: OFF/25/100/200mW
CH: 48CH
VTX Power input: 2-6S (using VTX layer alone)
Video Camera Voltage: 5V
Frequency Table:
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |
| Band A | 5865 | 5845 | 5825 | 5805 | 5875 | 5865 | 5845 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band C |
5705
|
5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band D |
5740
|
5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band E |
5362
|
5400 | 5436 | 5473 | 5510 | 5547 | 5584 | 5620 |
| Band F | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |

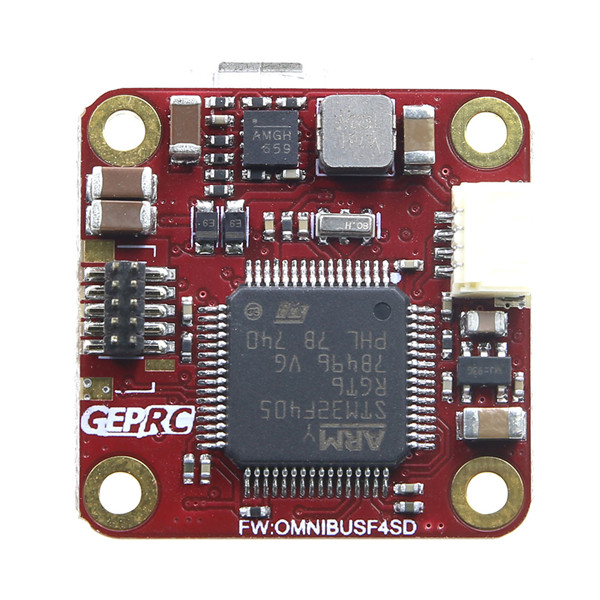

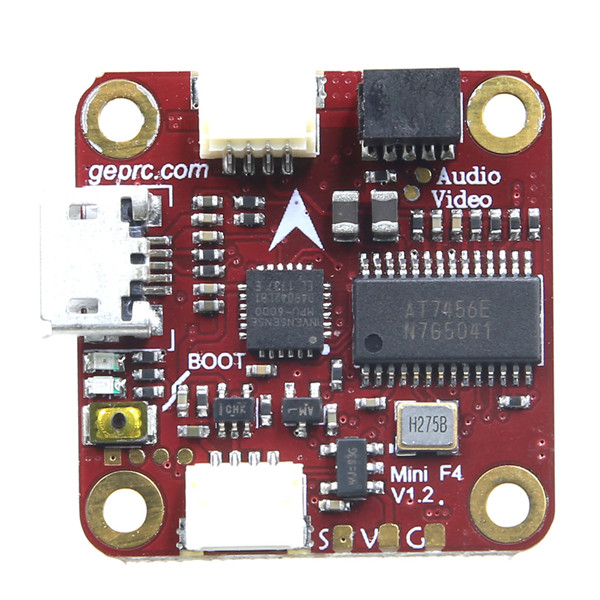

Omnibus F4 Flight Controller ( Middle Level)
Firmware: betaflight 3.2.1 (OMNIBUSF4SD)
OSD Firmware: Betaflight OSD
Video Camera Voltage: 5V only
Support Voltage monitor, buzzer and LED
Support DSMX, SBUS and PPM Receiver
Board Size: 25×25mm ( 20x20mm Mounting Hole)
Weight: 2.3g
20A BLheli_S 4 In 1 Brushless ESC ( Bottom Level)
Input Voltage: 2-4S (12A)
Con. Current: 20A
Peak Current: 30A (5s)
Oneshot 125/42 : YES
Dshot 150/300/600: YES
BlheliSuite Configurable: YES
Firmware Version: BLHeli_S/Dshot 150/300/600 16.6(G_H_30/L_H_0)
Board Size: 27×27mm
Weight: 3.3g
PDB: Integrated
Battery Monitoring:Integrated
FC Power: Integrated
Package Included:
1x F4 Flight Controller Board
1x VTX Board
1x 20A 4 In 1 ESC
3x Cable
1x Bag of screws
