Description

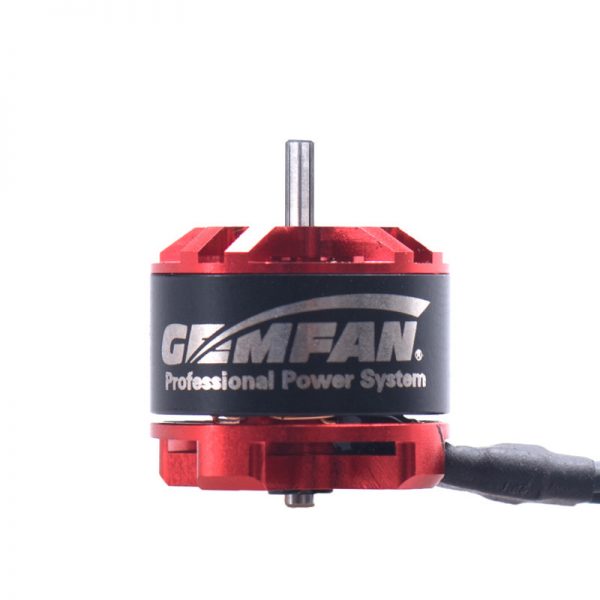

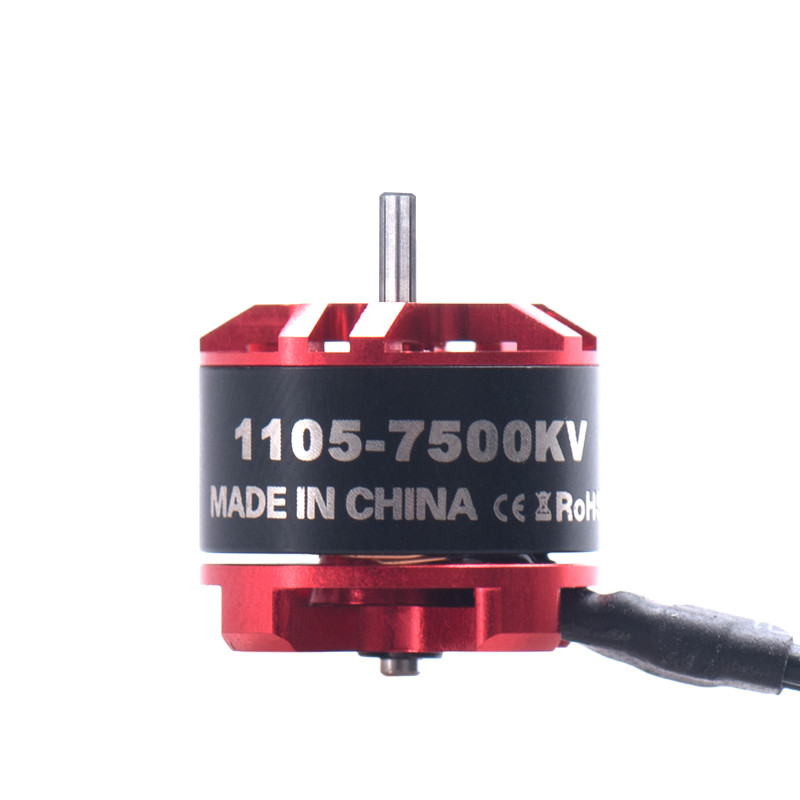

Gemfan 1105-7500KV 2-4S Brushless Motor for Gemfan 1940 2040 2035 Propeller
Specification:
Brand name: Gemfan
Item name: 1105-7500KV brushless motor
Configu-ration: 9N12P
KV: 7500KV
Stator diameter: 11mm
Stator length: 5mm
Shaft diameter: 1.5mm
Motor dimension (Dia.*Len): Φ14.2×14.45mm
No.of cells: 2-4S
Max efficency current: 11.6A
Max continuous power (W) 30s: 93W
Weight: 5.9g (Excluding Cable)
Suitable for Gemfan 2035-4BN,1940-3,2040-3
Note:
1.Please use correct size propeller, wrong propeller will give poor performance and may cause damage to the motor.
2.Do not run the motor more than 60 seconds under static environment, it may cause motor overheating or damage.
3.Making sure that it is clean inside the motor before using.
4.Different ESCs perform better or worse with different motors.If the motor makes abnormal sounds,please reset ESC
timing or use a different ESC.
5.Pay attention to screw length during assembly, too long may damage motor coil.
Package inlcuded:
1* 1105-7500KV brushless motor
