Description
Specification:
Brand Name: GEELANG

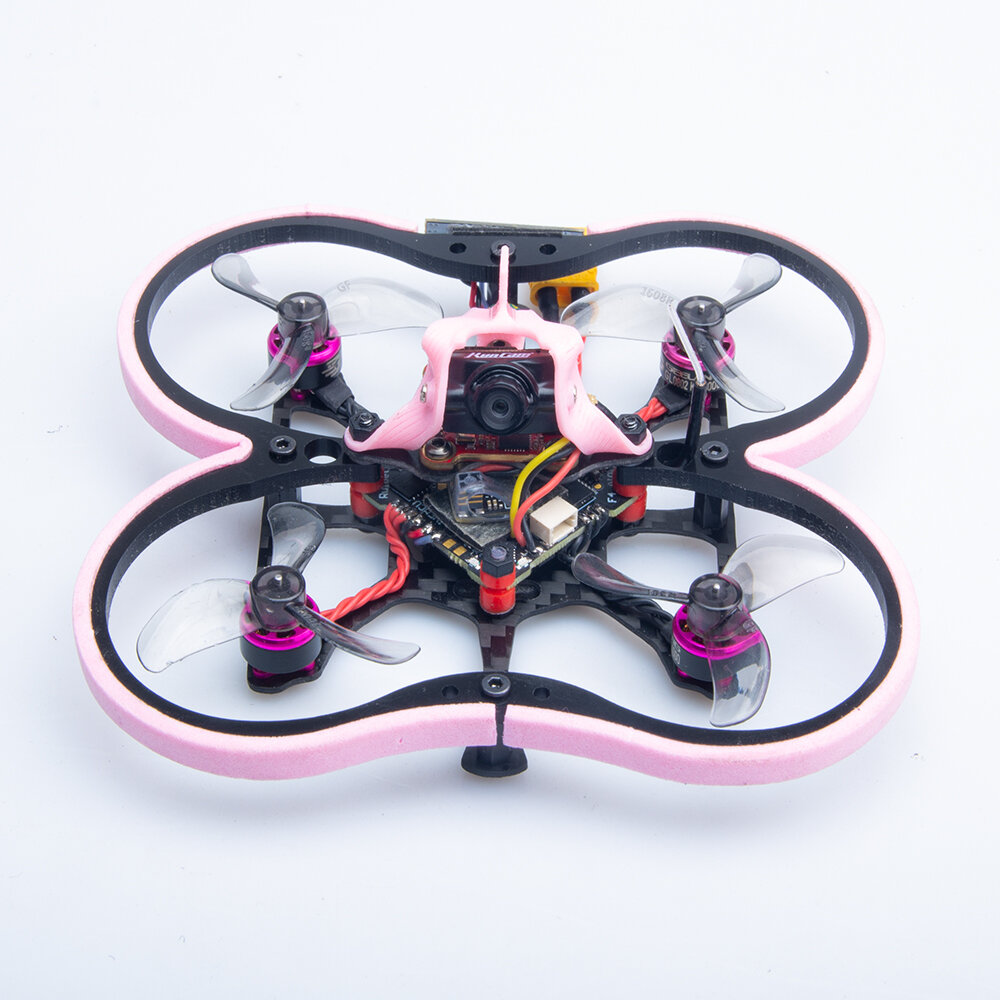

Mode Name: Sparrow 80X (Standard edition)
Wheelbase: 79mm
Size:108x108x45mm
Weight: 36g（5.8GVTX)
Applicable players：FPV introductory practice and FPV competition.
| GL0802 KV14000 Motor |
Configu-ration: 9N12P Stator Diamter: 8mm Stator Length: 2mm Shaft Diameter: Φ1.0mm WindingSpecifications: 180℃ Class Multiple oxygen-free copper Weight: 1.6g No.of Cells(Lipo): 2S |
| F4 AIO12A PRO ESC | CPU: STM32F411 CEU6(100MHz) IMU: BMP-270 (SPI connection) Firmware: F411 OSD:Built-inOSD (STM32 controls the OSD chip via SPI) Data storage:8m black box Programmable LED such as WS2812: Support Built-in current sensor Reserved buzzer interface Mounting Hole: 25.5×25.5mm Weight: 8g – Support Frsky/ Flysky/Futaba/DSMX/TBS /ELRS Receiver |
| Onboard 12A ESC |
Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 1-2S LiPo/LiPo HV (3.2v/7.4v) Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: G_H_30_REV Default protocol: DSHOT300 |
| Gemfan 1608 Propeller |
Gemfan 1608 Cinewhoop props Material: PC Weight: 0.91g Pitch:1.6 inches Center hole diameter: 1.0mm 3 holes |
| 5.8G VTX |
Power switching: four gears (25MW, 100MW, 200MW，400MW) Frequency: 40CH Input voltage: 11.1V-14.8V Current consumption: 480mA (type) Frequency: 5.8GHz 5bands 40 channels belt Smartaudio ready (Frsky EU-LBT and DSMX versions are not compatible) Weight: 6.0g |
| Caddx Ant FPV Camera |
Model: Caddx Ant Image Sensor: 1/3 CMOS Horizontal Resolution: 1200TVL Lens: 1.8mm S/N Ratio: >50dB（AGC OFF） Min. Illumination: 0.001Lux@F1.2 Video Output: CVBS Net Weight: 1.7g(N.W.) Dimensions: 14mm*14mm(bracket to 19mm*19mm) |
Recommended battery: ( NOT Included)
2S 300mAh-500mah lipo/lihv
Cruise flight time can reach 4-8 minutes.
Package Included:
1x Sparrow 80X WHOOP(5.8GVTX)
2x Gemfan1608 Propeller CW
2x Gemfan1608 Propeller CCW
1x Screwdriver Tool
