Description
Description:
Brand: GDW

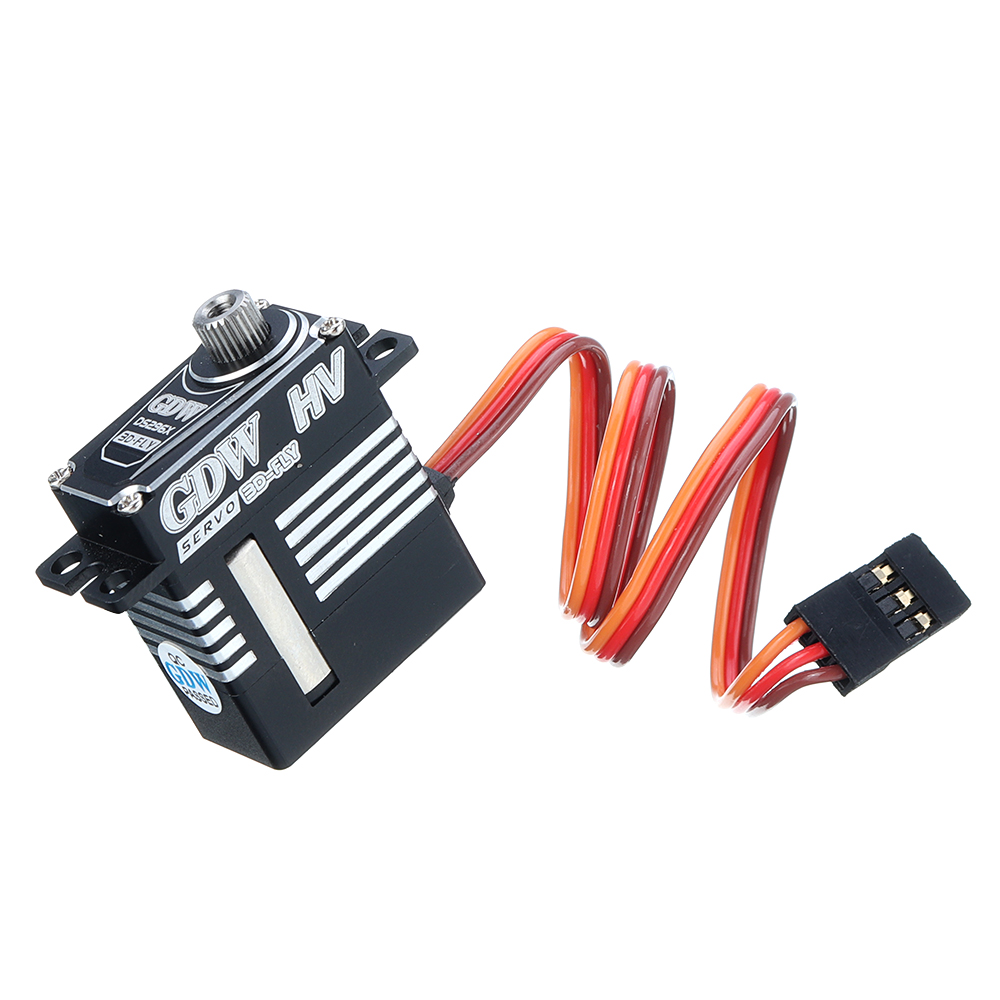

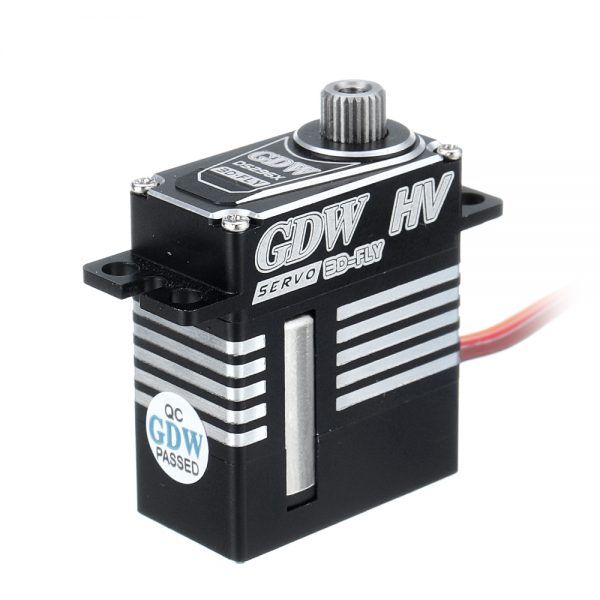

Product: DS296X Digital Servo
Voltage Range: DC6.0-8.4V
Speed and Torque:
6.5Kg.cm/0.084sec/60°@8.4V
7.0Kg.cm/0.065sec/60°@7.4V
7.8Kg.cm/0.072sec/60°@6.0V
Dimensions: 22.90*11.9*26.mm
Dead Band: 2μs
Neutral Position:1500μs/333hz
Motor: Coreless 12*15mm
Teeth: 25T
Wire: 220mm
Weight: About 30g
Application: For 30E RC Airplane, RC Robot
Package:
1* GDW DS296X Digital Servo
