Description
Specification:
Model: FX892T
Frequency: 5.8G band; A, B, E, F, R 5 frequency groups, 37 transmission channels
Day interface: MMCX
RF impedance: 50 Ohm
RF output power: PIT, 25mW, 200mW, 600mW, 1000mW
Input power: 7-28VDC
Current consumption: 200mA@12VDC@25mW / 300mA@12VDC@200mW
380mA@12VDC@600mW / 480mA@12VDC@1000mW
Operating mode: button operation, SmartAudio, intelligent control
Input video impedance: 75 Ohm
Input video amplitude: CVBS 0.8 – 1.2 v
Video format: NTSC/PAL
Size: 36mm * 36mm * 7mm
Weight: 8.3g (without antenna)
Indicator light description:
Channel indicator light (red) :
1 flicker means CH1
1 Constantly bright means CH2,
2 Constantly bright means CH3,
1, 2 Constantly bright means CH4,
3 Constantly bright means CH5
1, 3 Constantly bright means CH6
2, 3 Constantly bright means CH7
1, 2, 3 Constantly bright means CHE
Frequency group indicator light (blue) :
4 normally bright means frequency group A;
5 normally bright means frequency group B
4, 5 normally bright frequency group E
6 normally bright frequency group F
4, 6 normally bright frequency groups R
Power indicator (red blue):
1, 4 normally bright is 25mW
1, 2, 5 normally bright is 200mW
1, 3, 6 normally bright is 600mW
1, 2, 3 normally bright are 1000mw
4, 5, 6 normally bright is PIT
Click the button to switch frequency points:
Long press the button for 2 seconds, release the button when the frequency group indicator flashes,
switch frequency group, click again to switch to group t-5 Long press the button for 3 seconds to enter the switching power mode,
and the power indicator flashes. At this time, release the button, click the button to switch power, and automatically save and exit after 4 seconds
switch frequency group, click again to switch to group t-5 Long press the button for 3 seconds to enter the switching power mode,
and the power indicator flashes. At this time, release the button, click the button to switch power, and automatically save and exit after 4 seconds
Package Included:

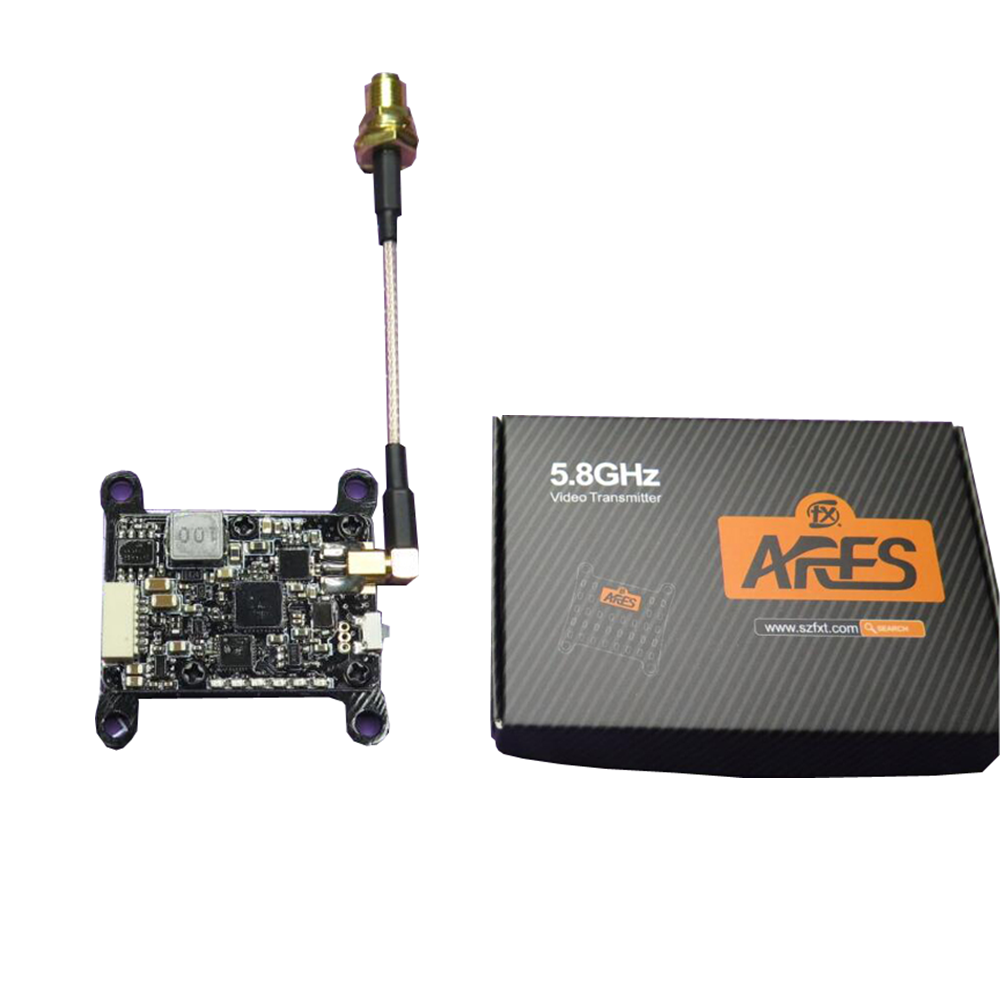

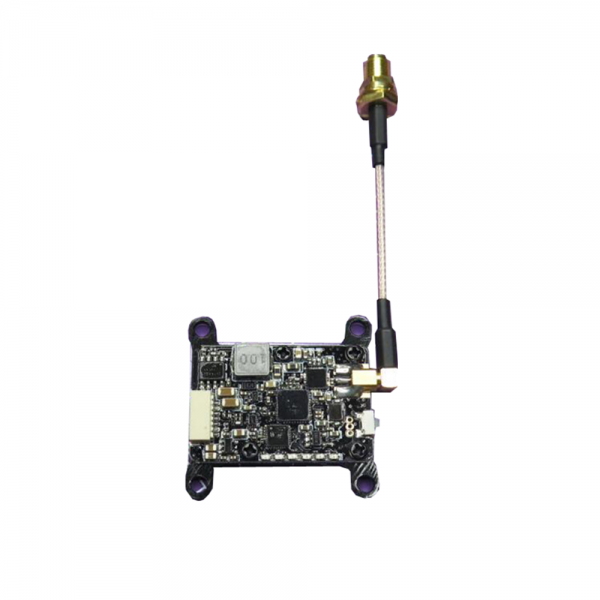

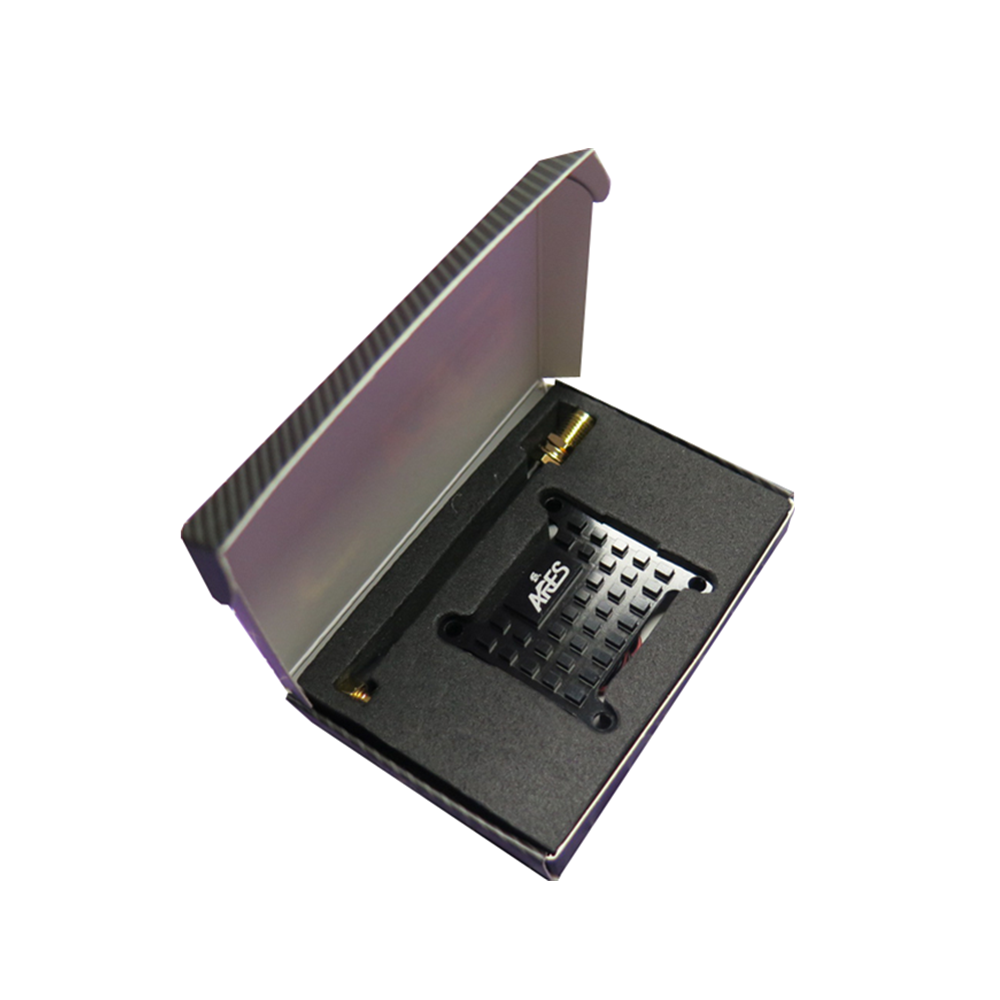

1 x FXT FX892T ARES 5.8G 37CH 25/200/600/1000mW Adjustable FPV Transmitter Support Smart Audio/PIT Mode MMCX
