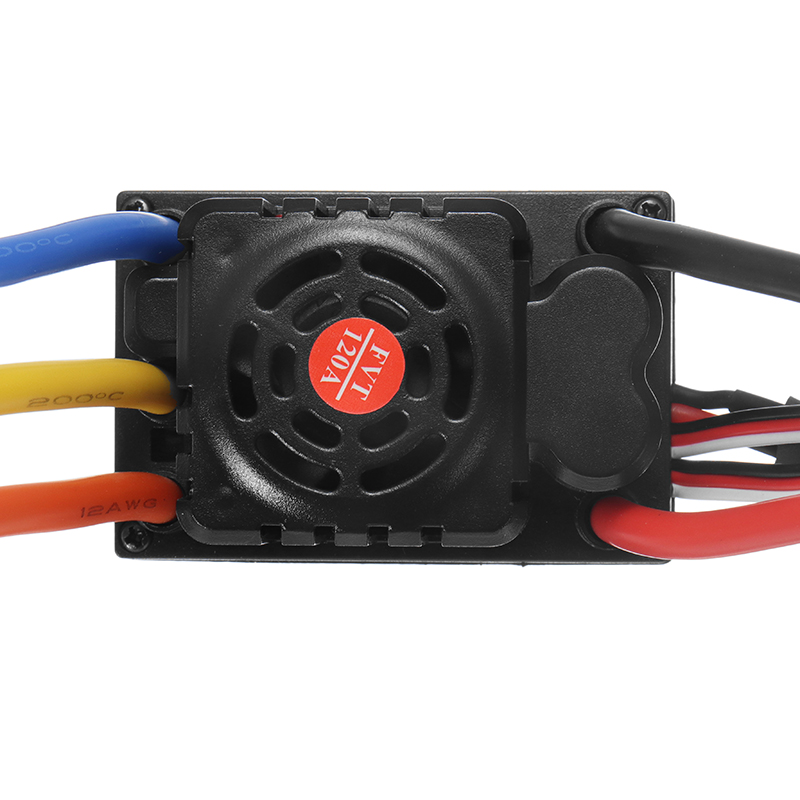

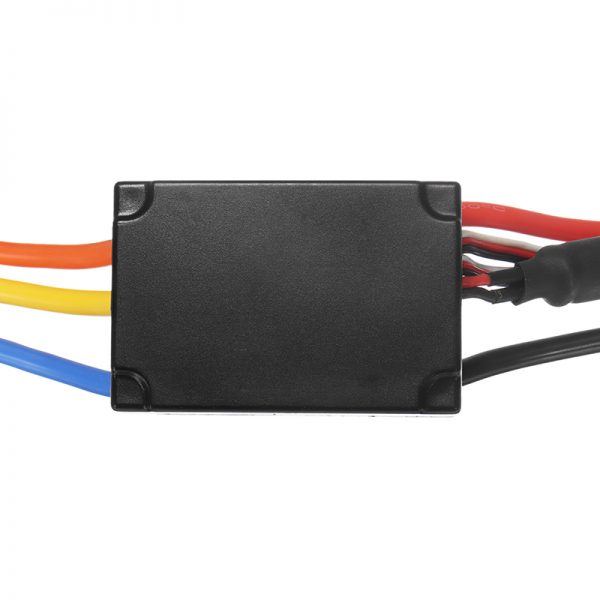

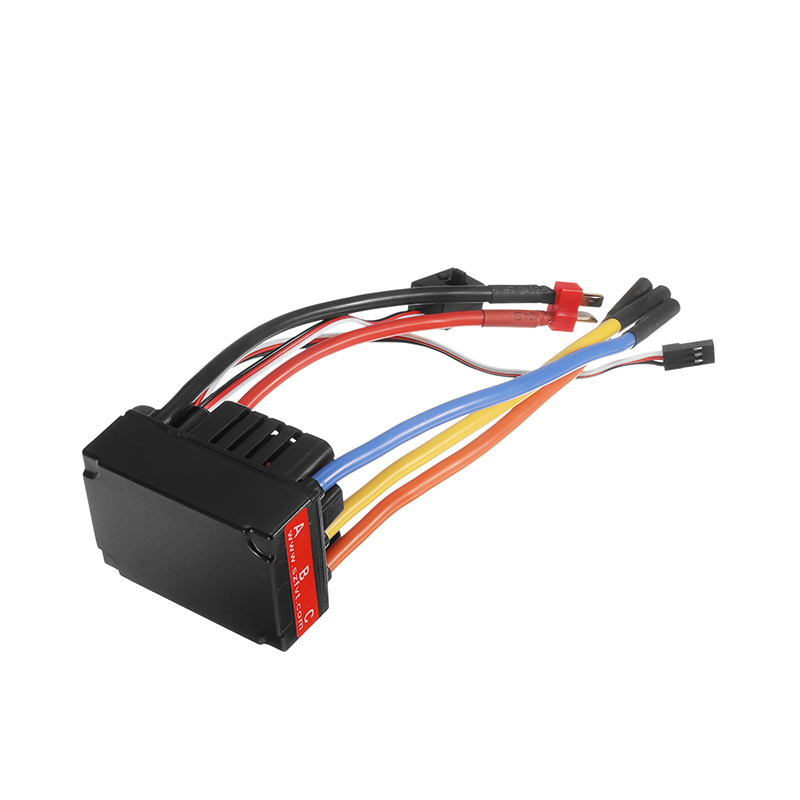

FVT 120A Waterproof Brushless Sensorless ESC For 1/8 1/10 RC Car Skateboard ESC

Brand Name: FTV

Item No.: CBWI120A

Item Name: ESC



Specification:

1 Output:Continuous 120A, burst 640A.

2 Input: 2-6S LiPo.

3 BEC:6V/3A .

4. Suitable Car: 1/8, 1/10

5. Size:56.5mm* 37.5mm * 36mm.
6.Waterproof:Yes
7.Supported motor:>5.5T  sensor and sensorless brushless motors.



Features

1   Compatible with brushless motors.

2   High quality components, big current endurance.

3   Excellent start-up, acceleration and linearity features.

4   Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.

5   Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

6   Internal timing can be changed easily to make the ESC suitable for various of motors.

7   Easily programmed with LED Program Box, Professional LCD Program Box and USB Link Software.





Note:
E-manual is available, please click 1, 2.
For Skateboard ESC program, please click 3, 4.
,

1 X FVT-CBWI120A Brushless Car ESC
