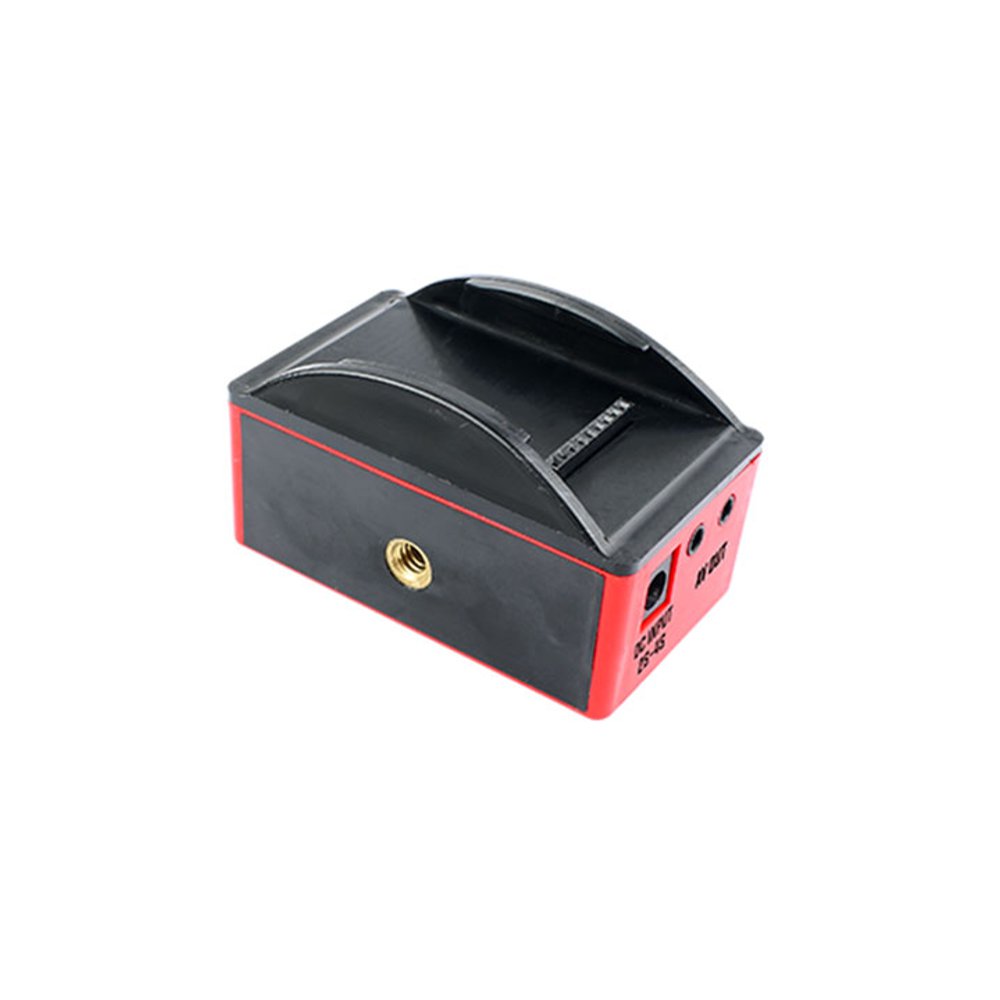

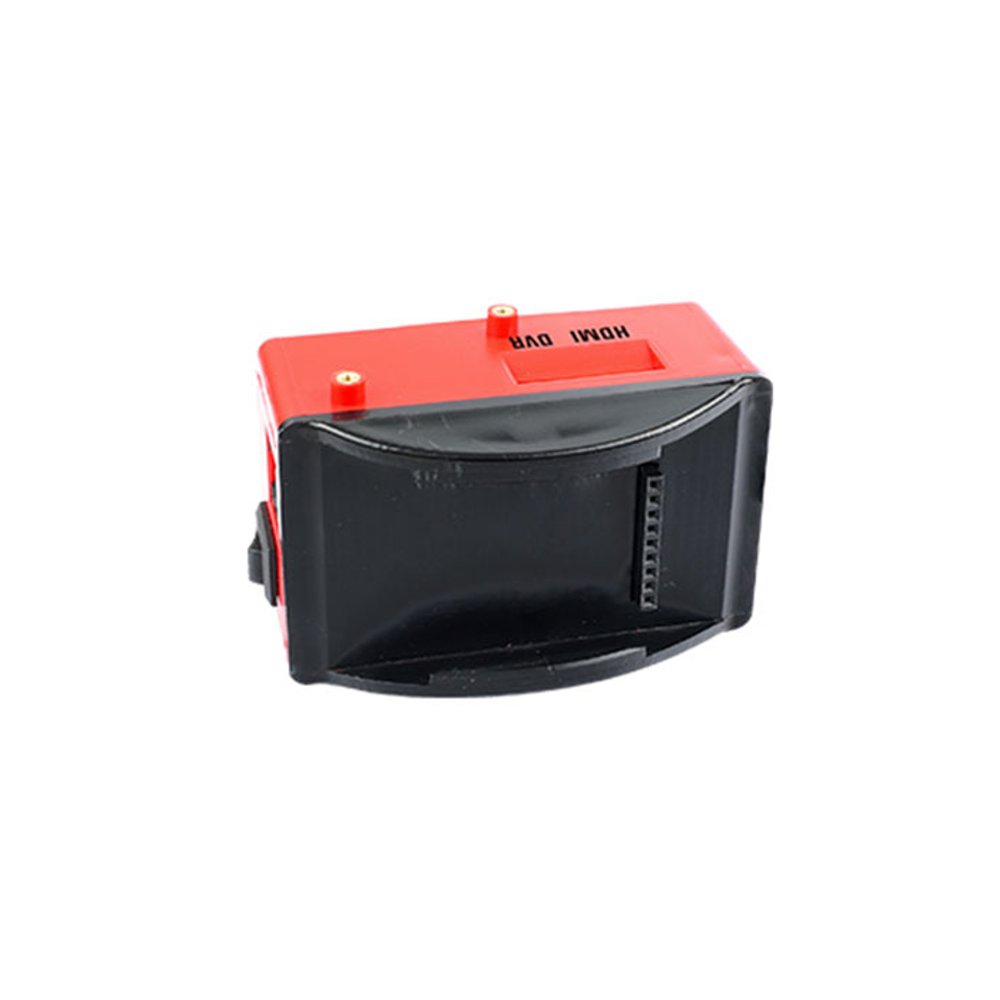

FuriousFPV Dock-King Ground Station Built-in OSD & Warning Buzzer With Dual AV Output Ports
Overview:
Furious FPV Dock-King Ground Station – Stand Alone Video Perfection.
Simplify your FPV and increase your video resolution with the Furious FPV DOCK-KING, allowing ultra directional placement for the very best in signal strength clarity.
With your receiver mounted in traditional fashion, it is all too natural to have your head tilted downward, thus compromising your antenna direction and overall video reception. Further this with head movement that can compromise your video clarity and increase video breakup, the DOCK-KING ground station ends all of this with a powerful & compact layout that optimizes maximum FPV clarity.
The DOCK-KING allows your TRUE-D V3 unit to be mounted and pointed in the perfect direction for optimal signal clarity, capitalizing on the very best video quality as you push your FPV to the max. Further this with integrated functionality like a built in OSD with dual antenna RSSI signal bars, you can now monitor both antenna signals to help you optimize the perfect direction and antenna type for the ultimate FPV setup.
Alongside the integrated OSD, the DOCK-KING features a warning buzzer, dual AV output ports and an external output for HDMI & DVR functionality. Ultra flexible with feature packed performance, the DOCK-KING incorporates the ability to be fully configured via smart phone, offering ultra easy bluetooth connectivity for on the fly updates & changes.
Ditch video drop outs & signal fluctuations that take place with movement of your head with the Furious FPV DOCK-KING. Compatible with any FPV goggles that utilize the TRUE-D V3 system, the DOCK-KING is also compatible with the FatShark Attitude V3, Transformer or HD goggle set.
Simplified, feature packed and designed to boost your FPV to the max, enter the Furious FPV DOCK-KING for the ultimate FPV experience.
Specifications:
Brand Name: FuriousFPV
Item Name: Dock-King Ground Station
Dimension: 72x44x50mm
Weight: 194g(with package)
Features:
– Integrated OSD with Dual Antenna Feedback – Directional Nirvana.
Maximize your FPV experience with ultra clear video via the dual antenna feedback system. This dual feedback system allows you to monitor the signal strength of both antennas in separate fashion, allowing the very best direction to be chosen, along with the best antenna to be utilized.
– Optimal Placement – Video Perfection.
Instead of relying on the movement of your head to dictate signal strength, you can now choose the best placement of your receiver system via the Dock Ground Station. This will optimize your video quality with far less video dropout or compromise, allowing you to focus on your flight without having to guess where to "look" to better your video quality & clarity.
– Dual AV Output Ports – Sensory Delight.
Utilize your DOCK-KING to the max with dual AV ports, allowing you and your spotter to see the very same zero compromise FPV video feed.
– HDMI & AV Output – Ready To Rock.
Pair the DOCK-KING ground station to any high end goggle set of your choice, with direct compatibility with the FatShark Attitude V3, Transformer, HD, or any other goggle system that accepts HDMI input capability. HDMI module is sold separately.
– Battery Voltage Info with Buzzer – Stay In the Know.
Integrated within the OLED screen of the TRUE-D system, you can keep up to speed on critical battery voltage. When the voltage gets too low, the built in warning buzzer is there to remind you that the DOCK-KING is ready for a recharge.
– Personal Lap Time Functionality – Push Your Limits.
Keep tabs on your laps with the built in personal lap time function, allowing you to track your best laps without the need of a separate RF timer, thus simplifying your practice.
– Smartphone Configuration Ready – The Ultimate In Simplicity.
Setup is a breeze with full smart phone configuration. Utilizing bluetooth capability, there is no PC required, allowing on the fly adjustments with zero hassle.
– Wide Input Voltage Range from 2S 7.4V – 4S 16.8V
– Improved RSSI Algorithm
– Improved DVR Image Quality
– Compact & Easy to use
– Personal race timing system
– Built In Tripod Mount
– Built-In Warning Buzzer
– Dual AV Output Ports
– External Outputs for HDMI & DVR (sold separately)
– Integrated OSD with Real Time RSSI Signal Strength
– Ultra Simplified Setup via bluetooth Smartphone Compatibility
– Requires True-D Hardware V3.0 or higher, Firmware 3.7D or higher
Note:
HDMI and DVR modules are not included and sold separately as optional.
DOCK-KING Ground Station Manual, please Click here
Firmware True-D 3.7D to use with DOCK-KING Ground Station: For Window, For Mac
Link for Combo Dock-King Ground Station and True-D Firmware 3.7D, Click here
Package Included:
1x FuriousFPV Dock-King Ground Station
1x True-D V3.5 cover (FPV-0253-S)
1x AV Cable (Jack 3.5mm 4 poles)
1x XT60 to DC cable
1x Battery strap
1x User Manual
