Description

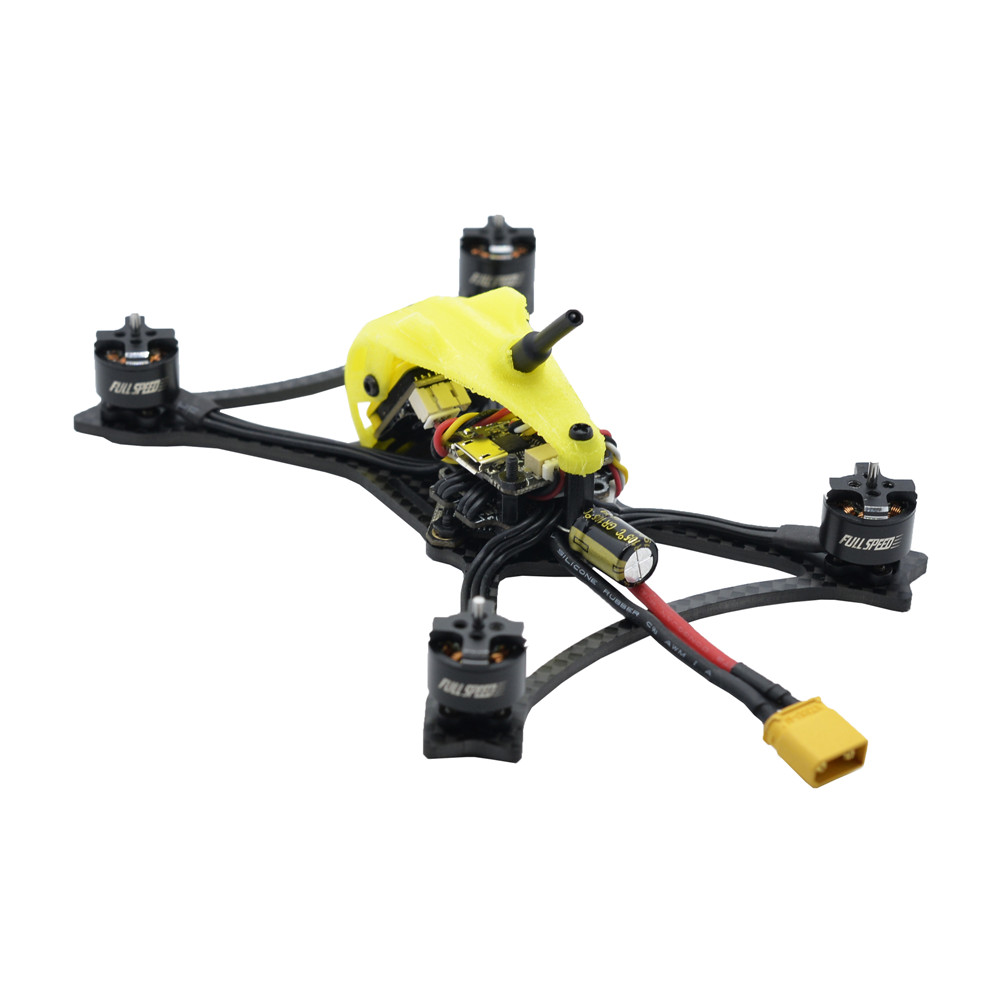

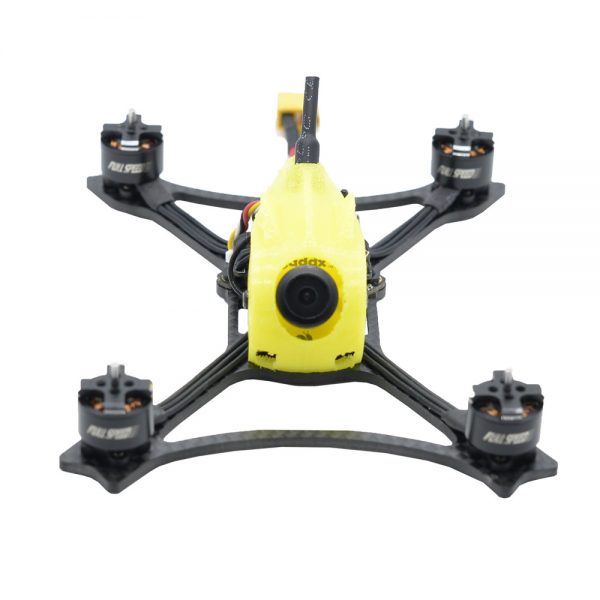

FullSpeed Toothpick Pro 120mm 2.5mm Bottom Plate F4 FPV Racing Drone PNP BNF
15% OFF Coupon: BG15pro
Quantity Limited, Valid to Aug. 31th
Specification: ( Manual)
Brand Name: Fullspeed
Model: Toothpick Pro
Item Name: 120mm Wheelbase 2.5mm Bottom Plate F4 FPV Racing Drone
Thickness of Bottom Plate: 2.5mm
ESC: FSD412 (1-4S ESC) BLHELI_S 4in1 ESC Dshot600
Motor: 1106 4500KV
Propeller: 2535 4-blade propeller
Camera: Caddx Micro F2 camera with angle adjustable (0°- 45°)
VTX: FSD TX600 Pit/25/100/200/400/600 switchable VTX (support IRC Tramp)
FullSpeed FSD412 (F411 FC) Flight controller
Size: 20mm x 20mm x 5mm
Mounting hole: 16mm x 16mm
MCU: STM32 F411
Gyroscope: MPU6000
BEC: 5V/2A
Input Voltage: 2-4S Lipo or 2- 4S HV Lipo
Built-in Betaflight OSD
FullSpeed FSD412 (1-4S ESC) BLHELI_S 4in1 ESC
Size: 20mm x 25mm x 5mm
Mounting hole: 16mm x 16mm
Firmware: BLHELI_S
Input Voltage: 1-4S Lipo or 1- 4S HV Lipo
Continuous current: 12A
BEC Ouput: NO
FullSpeed FSD TX600 25mW-600mW VTX FPV Transmitter
Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
Control mode:BFOSD control(support IRC Tramp) /button
Video system: NTSC/PAL
Antenna: IPEX
BAT: 5V Recommended
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
(TX600's factory set up is on lock mode(5733-5866MHZ unlock). Please follow your local laws and regulations
if you need to unlock the frequency.)
Size: 26*26mm(L*W),Hole:20*20mm
Weight: 2.3g
