Description

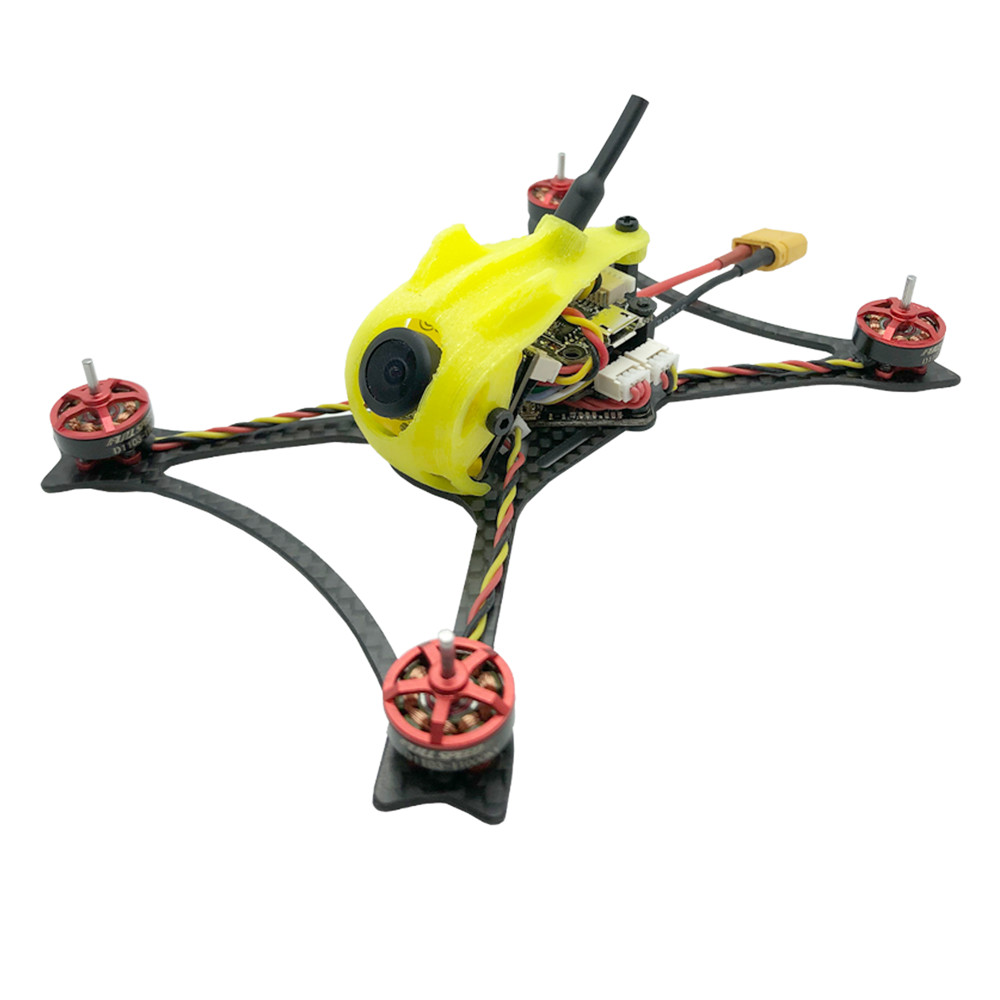

FullSpeed Toothpick F4 OSD 2-3S Whoop FPV Racing Drone PNP BNF w/ Caddx Micro F2 1200TVL Camera
Click here to buy NEW Pro Version.
Specification: ( Manual)
Brand Name: FullSpeed
Model: Toothpick
Weight: 41.5g (without battery)
| F411 Flight Controller | Brand Name: FullSpeed Model: FSD412 Item Name: F411 Flight Controller AIO OSD Size: 20mm x 20mm x 5mm
Mounting hole: 16mm x 16mm
MCU: STM32 F411
BEC: 5V/2A |
| 12A BLheli_S 4in1 ESC |
Firmware: BLHELI_S
Continuous current: 12A
BEC Ouput: NO
Size: 20mm x 25mm x 5mm
Mounting hole: 16mm x 16mm
|
| 1103 11000KV Motor |
Height: 14mm
Weight: about 3.2g
Shaft: φ1.5mm
Motor Mount Holes: M1.6 on Dia 8.5mm
KV (rpm/V): 11000
Voltage: 7.4V, 2S Lipo battery
Plug: Micro JST-1.25 3-pins connector
|
| 65mm Propeller | 65mm 2-blades props 1.5mm hole |
| 48CH 25/100/200/400/600mW VTX | Model: FSD TX600
Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
Control mode:BFOSD control(support IRC Tramp)button
Video system: NTSC/PAL
Antenna: IPEX
BAT: 5V Recommended
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
(factory set up is on lock mode(5733-5866MHZ unlock).
Please follow your local laws and regulations if you need to unlock the frequency.) Size: 26*26mm(L*W),Hole:20*20mm
Weight: 2.3g
|
| Caddx Micro F2 FPV Camera |
Model: Turbo Micro F2
Image Sensor: 1/3" COMS Sensor
Horizontal Resolution 1200 TVL
TV System: NTSC/PAL changeable
Lens: 2.1mm lens
Audio: YES
Auto Gain Control: YES
Camera OSD: YES
Language ENG/CHN
Image Flip Support
Day/Night Auto/Color/B&W
Dimension 19mm*19mm*19mm
Wide Power Input DC 4.5-40V
Weight: 5.5g
|
| Receiver ( Optional) | PNP Version: Without Receiver Compatible Frsky Receiver Version: Compatible Frsky D8 Receiver Compatible Flysky Receiver Version: Compatible Flysky ibus receiver Compatible DSMX Receiver Version: Compatible DSMX/2 Receiver TBS Crossfire Receiver Version: TBS Crossfire Nano Receiver with Normal Antenna |
| Recommend Battery ( NOT Included) |
2-3S Lipo Battery For Example: 3S 300mAh Lipo Connector: XT30 Plug |
Package Inlcuded:
1x Toothpick frame kit
1x FSD412 2-3S 12A Flight tower
4x 1103-8000KV brushless motor with connector
2x 65mm 2-blade propeller(CW)
2x 65mm 2-blade propeller(CCW)
1x Caddx Micro F2
1x FSD TX600 25mW-600mW VTX FPV Transmitter
1x Optional Receiver ( BNF Version Only)
1x Optional Receiver ( BNF Version Only)
