Description

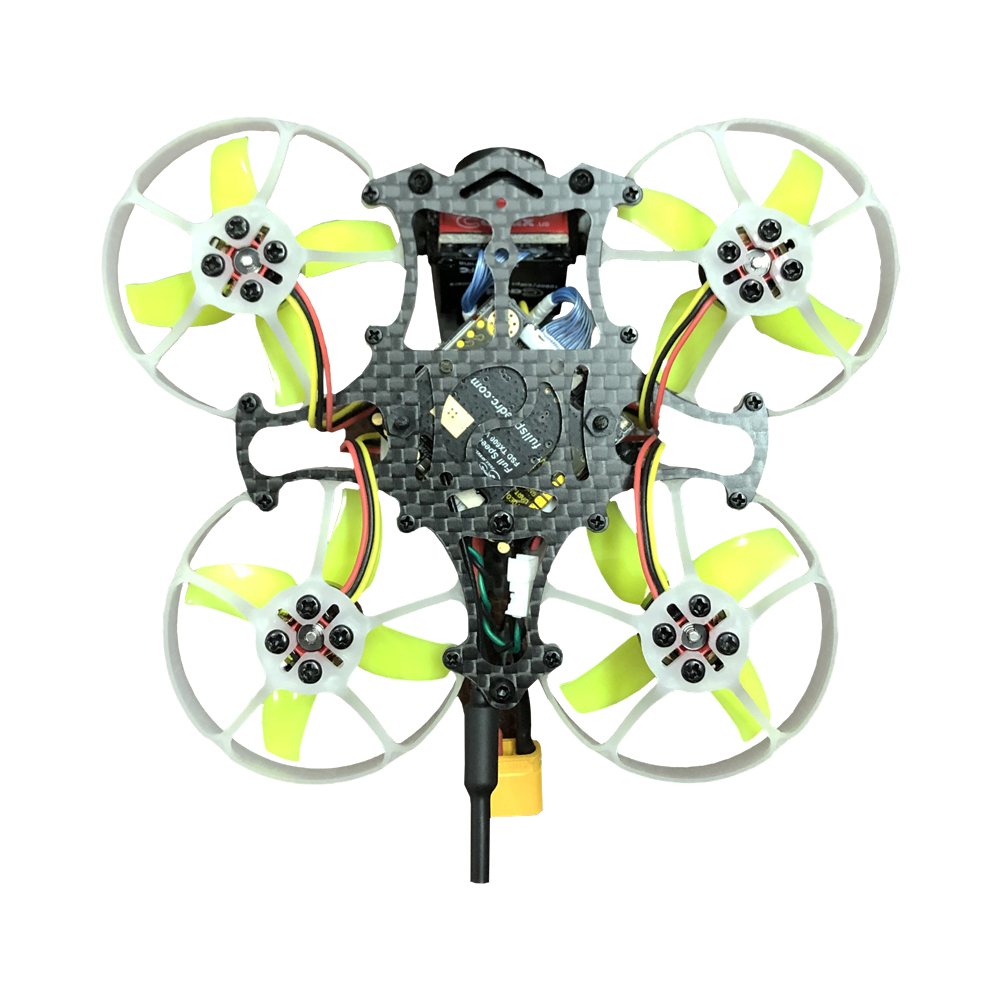

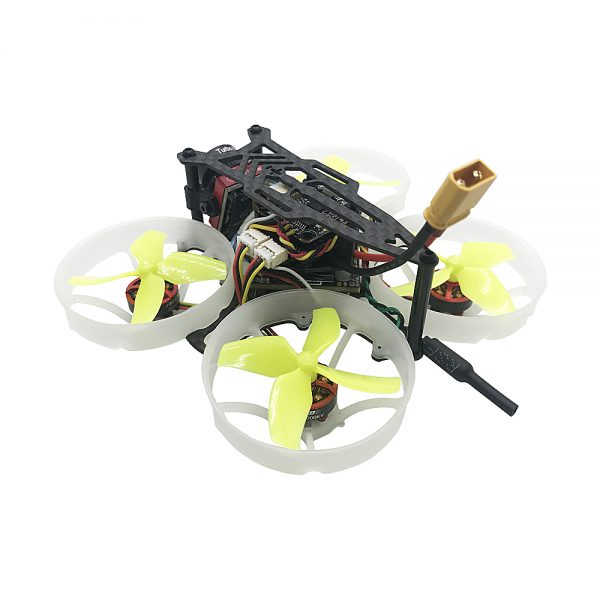

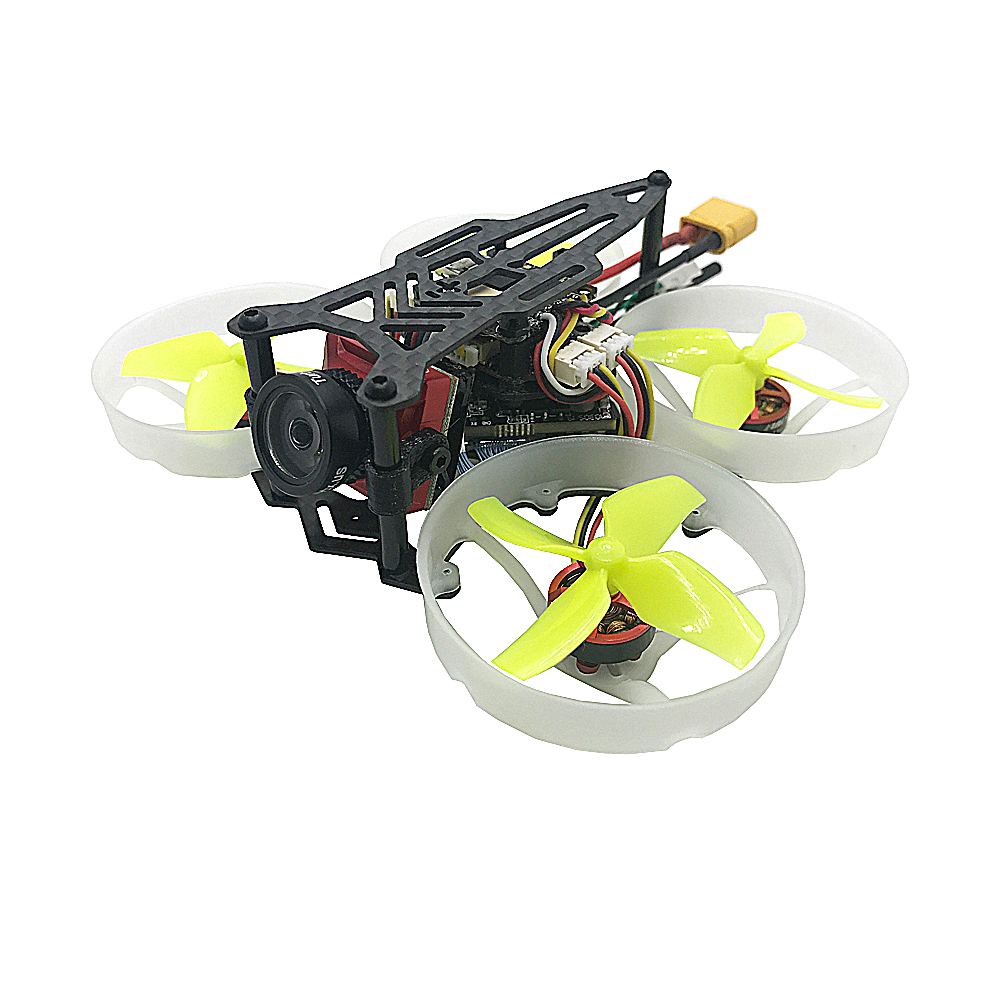

FullSpeed TinyLeader 75mm HD V2 Cinewhoop FPV Racing Drone 2-3S F4 FC 25~600mW VTX Caddx Turtle V2 Cam
Specification:
Brand Name: FullSpeed
Item Name: TinyLeader HDV2 Brushless Whoop
Weelbase: 75mm plastic + carbon frame (1mm)
Flight controller: FSD412 (F411 2-3S FC) 5V/2A BEC built-in OSD
ESC: FSD412(1-3S ESC) BLHELI_S 4in1 ESC Dshot600
Motor: 1103 11000KV with connector
Propeller: 1545 40mm 4-blades props, 1.5mm shaft hole
Camera: Caddx Micro F2 camera with angle adjustable(0°- 45°)
VTX: FSD TX600 Pit/25/100/200/400/600 switchable VTX(support IRC Tramp)
Package size: 20x14x8cm
Weight: 55g (without battery)
FullSpeed FSD412 (F411 FC) Flight controller
Size: 20mm x 20mm x 5mm
Mounting hole: 16mm x 16mm
MCU: STM32 F411
Built-in Betaflight OSD
BEC: 5V/2A
Input Voltage: 2-3S Lipo or 2- 3S HV Lipo
FullSpeed FSD412 (1-3S ESC)BLHELI_S 4in1 ESC
Size: 20mm x 25mm x 5mm
Mounting hole: 16mm x 16mm
Firmware: BLHELI_S
Input Voltage: 1-3S Lipo or 1- 3S HV Lipo
Continuous current: 12A
BEC Ouput: NO
FullSpeed FSD TX600 25mW-600mW VTX FPV Transmitter
Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
Control mode:BFOSD control(support IRC Tramp)/button
Video system: NTSC/PAL
Antenna: IPEX
BAT: 5V Recommended
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
(TX600's factory set up is on lock mode(5733-5866MHZ unlock). Please follow your local laws and regulations
if you need to unlock the frequency.)
Size: 26*26mm(L*W),Hole:20*20mm
Weight: 2.3g
Package Included:
1 x TinyLeader HDV2 frame kit
1 x PNP without receiver / FrSky Receiver / Flysky Receiver / DSMX Receiver (Optional)
1 x FSD412 2-3S 12A Flight tower
4 x 1103-11000KV brushless motor with connector
2 x 1545 40mm 4-blade propeller(CW)
2 x 1545 40mm 4-blade propeller(CCW)
1 x Caddx Turtle V2
1 x FSD TX600 25mW-600mW VTX FPV Transmitter
