Description

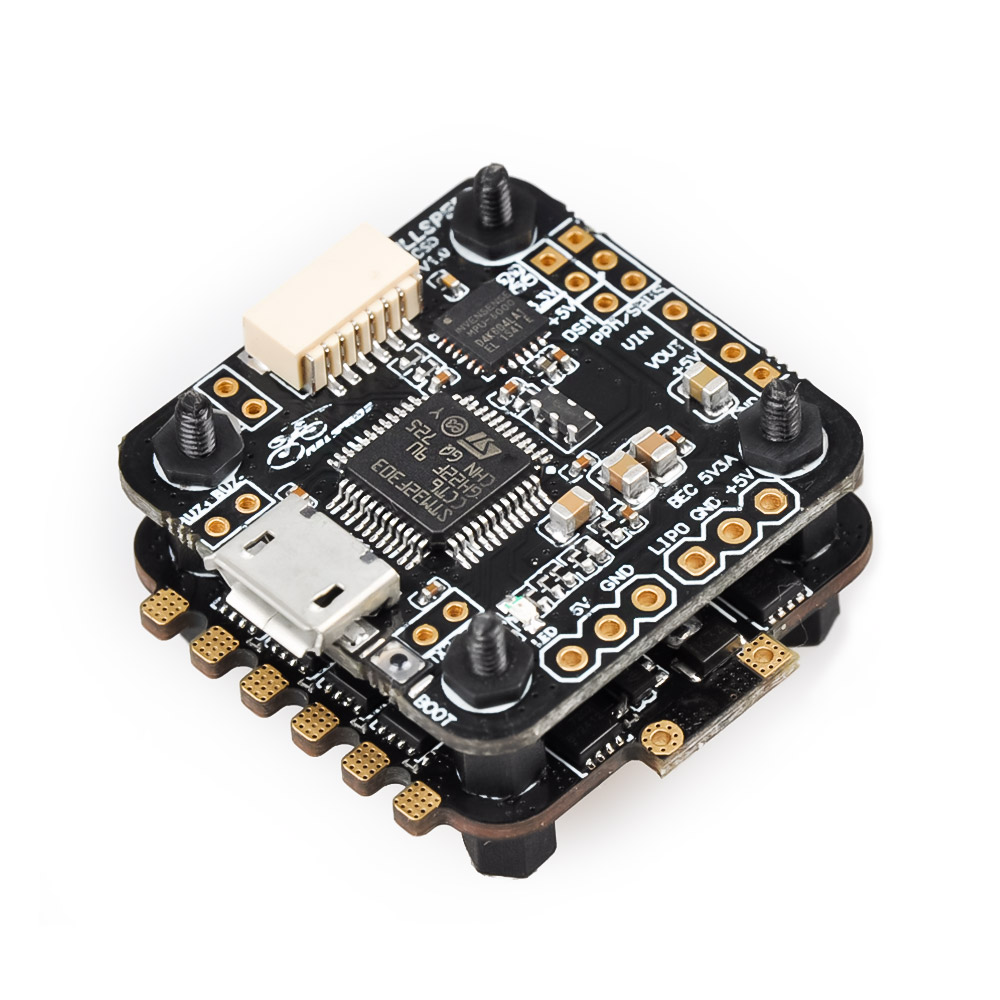

Full Speed 20x20mm FSD328 Flytower F3 Flight Controller AIO OSD BEC & 28A BL_S DShot600 4 in 1 ESC
Specification:
Brand Name: Full Speed
Model: FSD328
Item Name: 20x20mm F3 Flight Controller & 28A ESC Flytower
Tower Weight: 8g

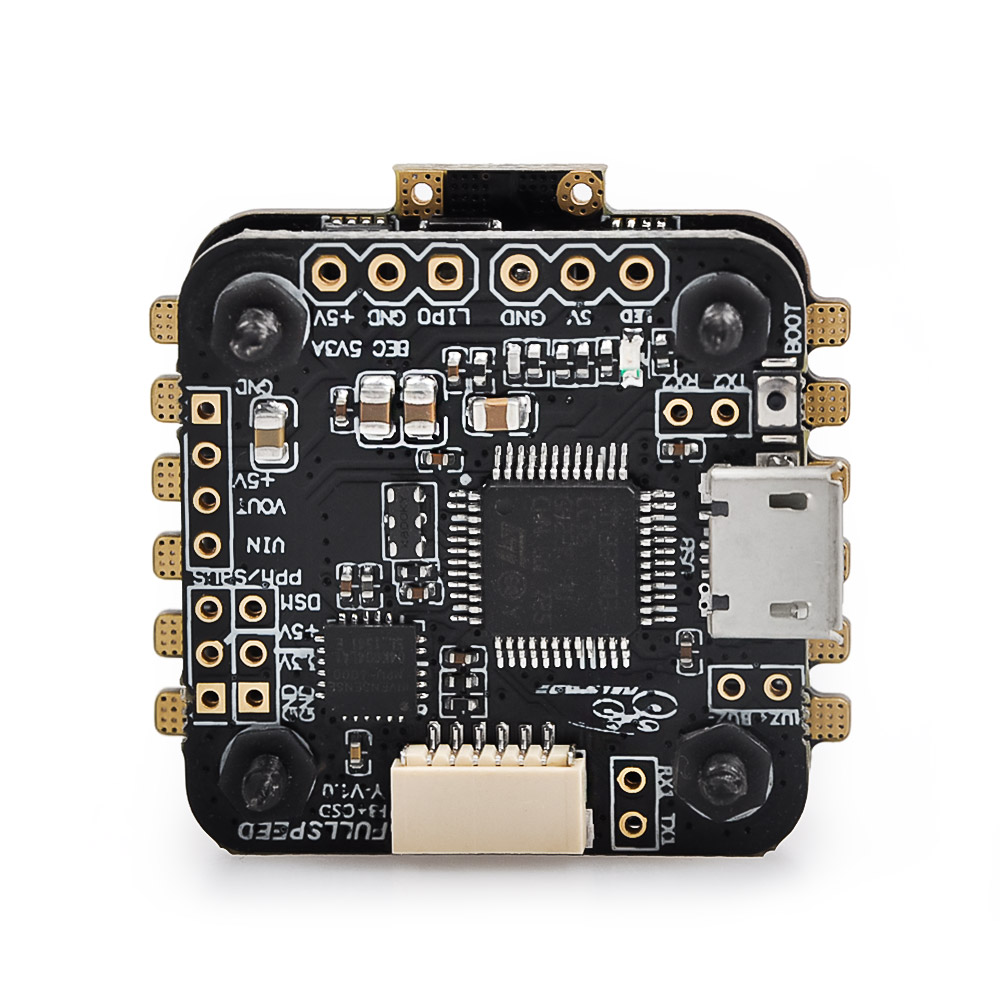

Omnibus F3 Flight Controller (Top Level):
MCU: STM32
MPU: MPU6000
Working Voltage: 2-4S Lipo
OSD: Betaflight OSD
BEC: 5V @ 3A
Firmware: OmnibusF3 Betaflight DShot
Size: 27x27x5mm
Mounting Hole: 20x20mm ( M2)
Weight: 3g
– Support DSM / PPM/ SBUS Receiver

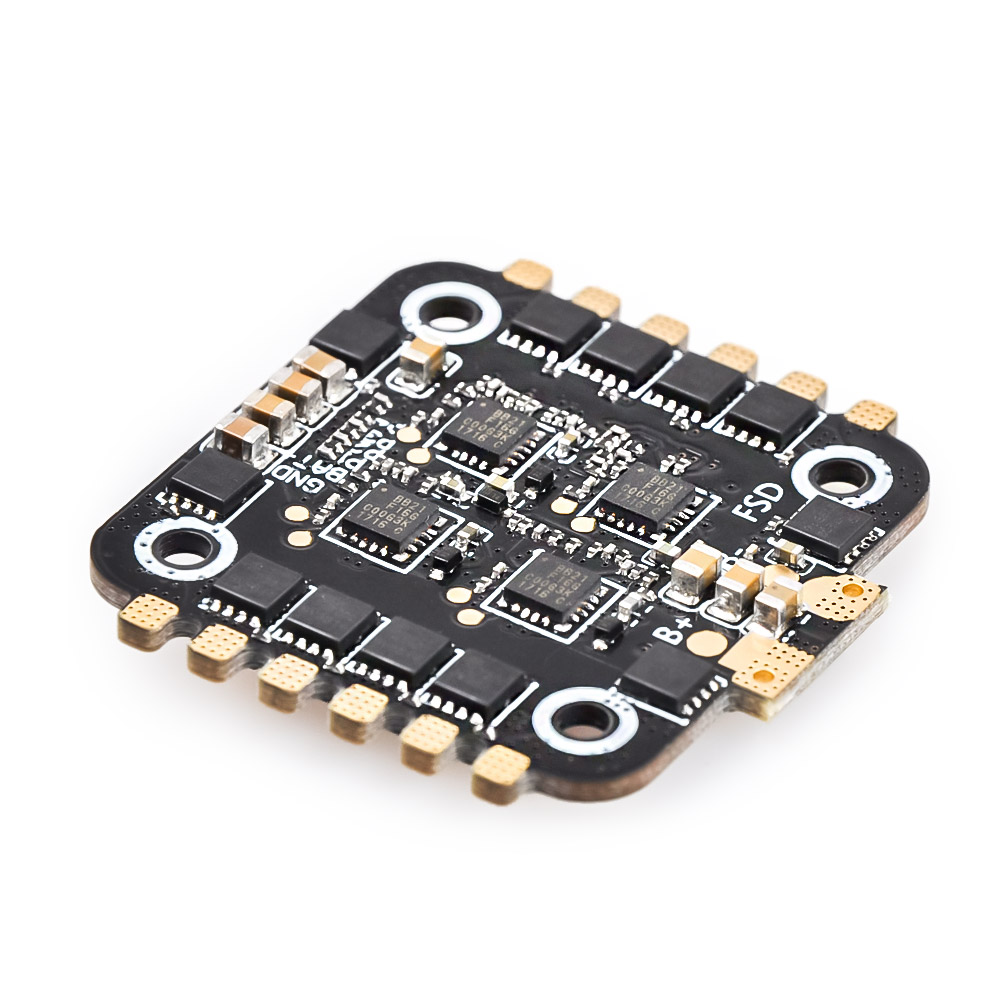

28A 4 in 1 ESC ( Bottom Level)
Con. Current: 28A
Peak Current: 35A ( 10S)
Firmware: BLheli_S
Input Voltage: 2-4S Lipo
Size: 31x31x5mm
Mounting Hole: 20x20mm
Weight: 3.7g
– Support Oneshot42, Oneshot125, Multishot, Dshot150, DShot300 and DShot600
Package Included:
1x F3 Flight Controller
1x 28A 4 in 1 ESC
8x M2*5+5 Nylon Standoff
4x M2 Nylon Nut
1x 6P Cable
