Description

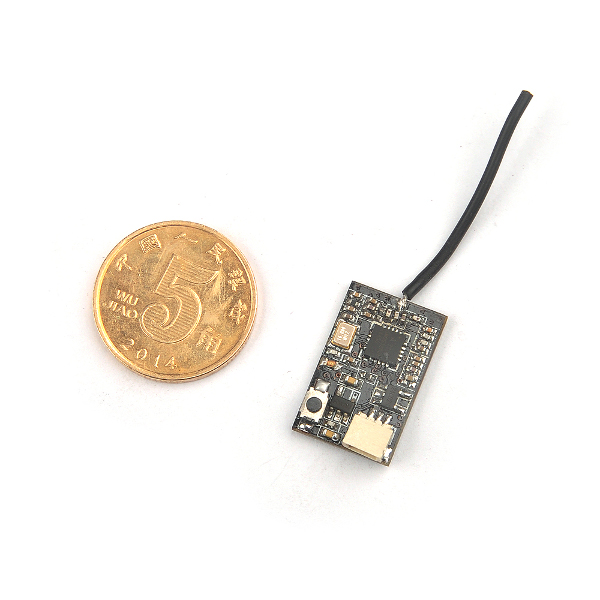

FS82 MICRO 2.4G 8CH Flysky Compatible Receiver With PPM I-Bus Output
Specification:
Item Name: FS82 Micro 2.4G receiver
Channels: PPM 8CH / IBUS 10CH
Frequency range: 2.408‐2.475GHZ
2.4GHz system: AFHDS 2A
Work Mode: IBUS or PPM
IBUS connector: 1.0 SH 3pin plug
PPM connector: Solder pad
Failsafe function: Support(Only IBUS Mode)
Transfer method: FHSS
Antenna length: 30mm
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Size: 20*13*4.5mm

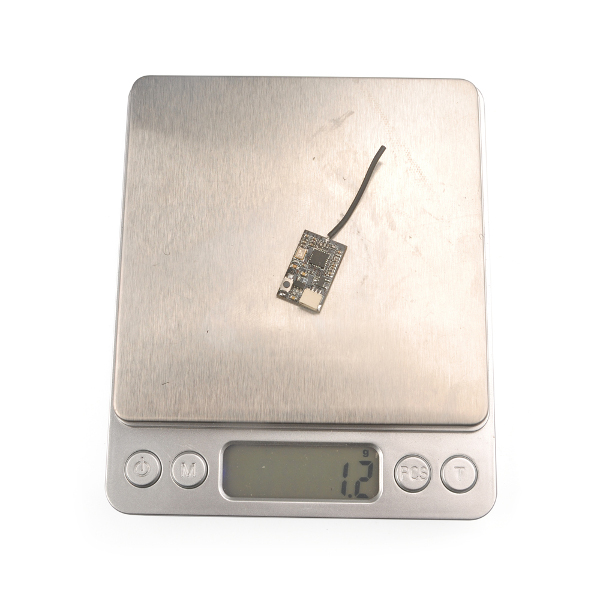

Weight: 1.2g
Compatible Transmitter: Compatible with FS‐i4, FS‐i6, FS‐i6S, FS‐i6X, FS‐i10, FS‐GT2E, FS‐GT2G, FS‐GT2F,Turnigy Evolution
Binding Procedure:
Connect the battery to the receiver while holding the binding button on the board ,the Blue LED will blinking fast, this indicates the Receiver is in binding mode. Then release the binding button.
Turn on your radio and Set receiver mode to AFHDS 2A, then get your radio into binding mode. The blue LED on the Receiver will turning off for a second and then starting to blinking slowly, this indicates binding successfully.
Package Included:
1x receiver
