Description

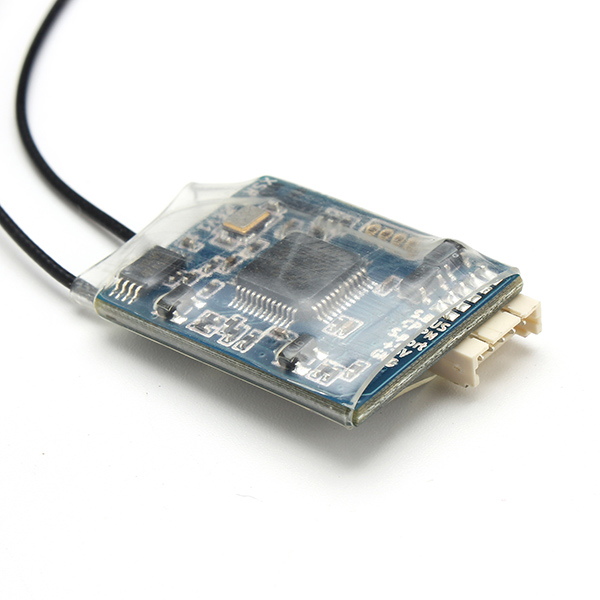

FrSky XSR 2.4GHz 16CH ACCST Receiver S-Bus CPPM Output Support X9D X9E X9DP X12S X Series
Description: User Manual
Brand Name: FrSky
Item Name: XSR Receiver
Channel: XSR-16CH(1-16CH from SBUS channel,1-8ch from CPPM Channel)
Dimension: 26 x 19.2 x 5 mm
Weight: 3.8g
Operating Voltage Range: 4.0~10V
Operating Current: 100mA@5V
Firmware Upgradeable
Compatibility: FrSky X-series Module,X9D,X9DP,X9E,X12S(XSR is incompatible with D-series Module)
Features:
Smart Port enabled,realizing two-way full duplex transmission.
S-BUS output
CPPM output
Lighter weight and physically smaller than X4R
More number of channels:1-16CH from SBUS channel,1-8ch from CPPM Channel
Package Included:
1 x Receiver
,
,
