Description

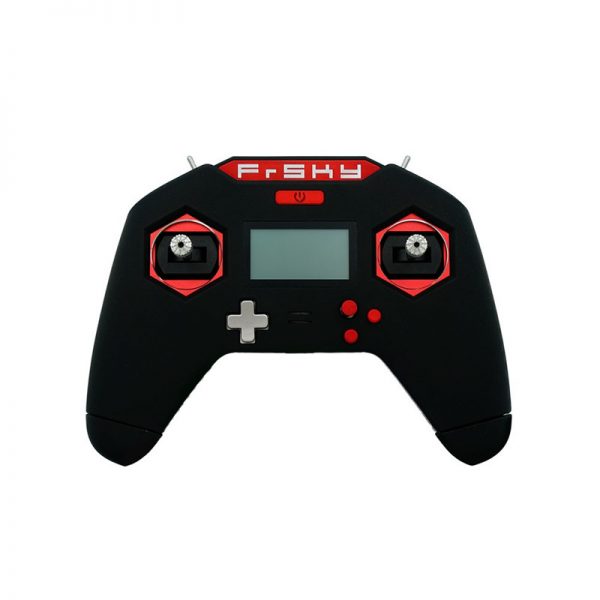

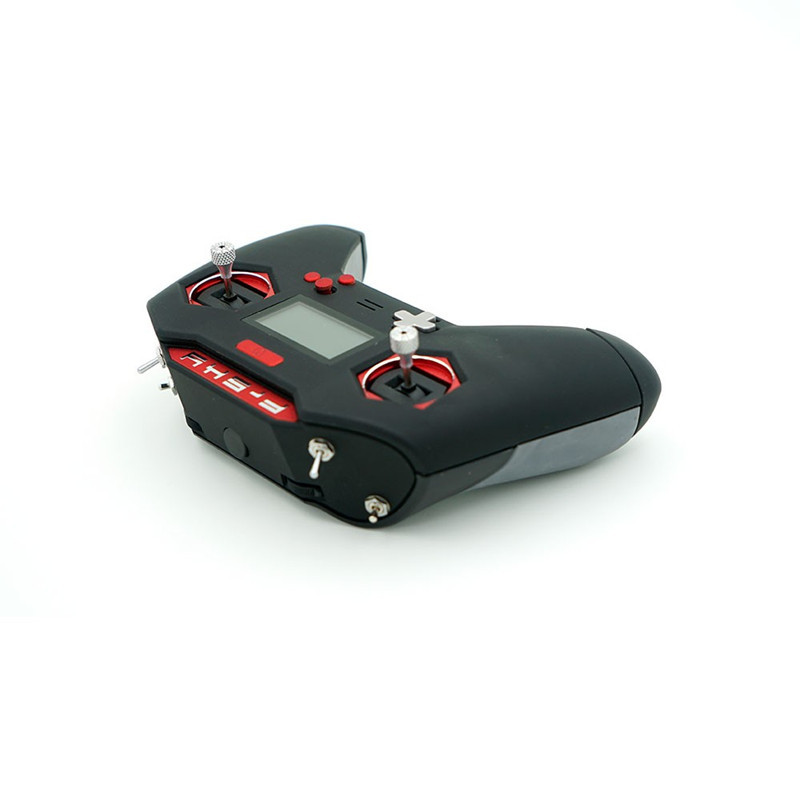

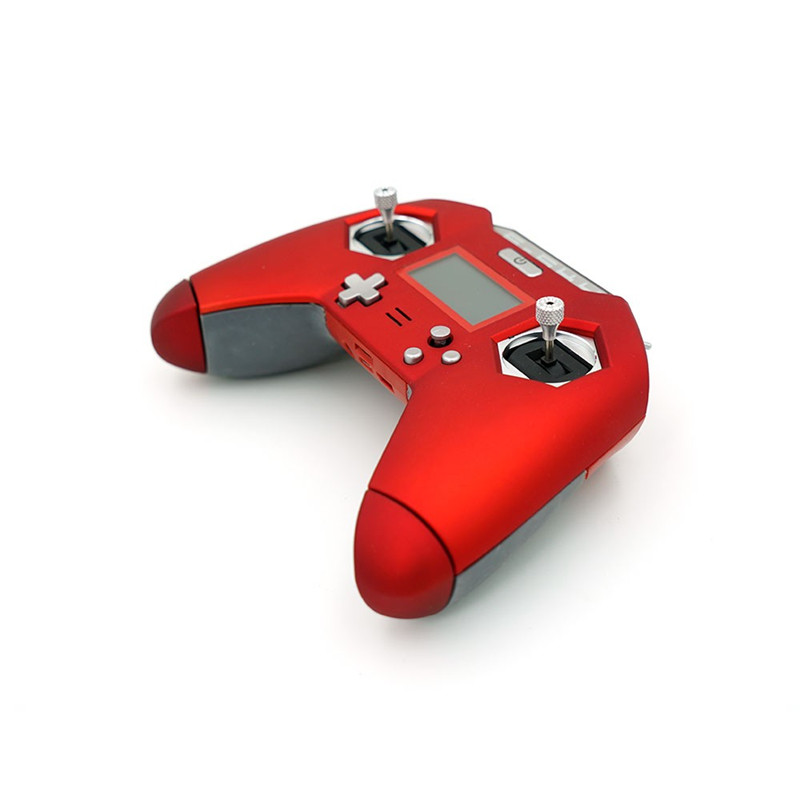

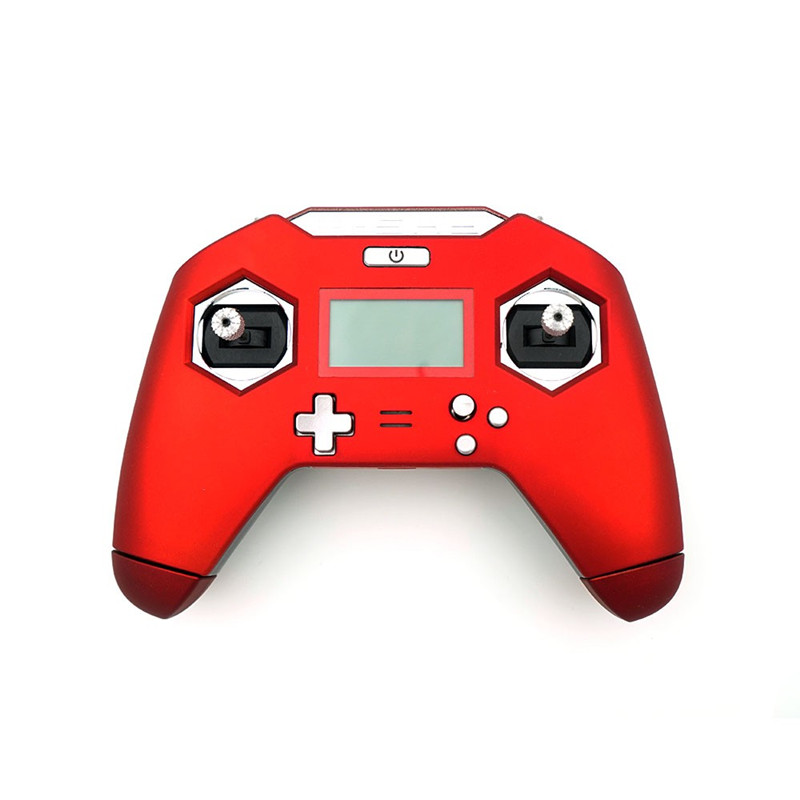

FrSky Taranis X-Lite ACCST 2.4GHz Radio Transmitter with 18650 Battery Black Caps for RC Drone FPV Racing Muliti Rotor
Get ahead of the curve with the next game changing transmitter from FrSky, the Taranis X-Lite. This revolutionary radio blends the functionality and reliability of FrSky Transmitters with a compact Game-Style controller. The X-Lite is ergonomically designed, featuring four switches and two sliders, which means you can still fly your Fixed-wing models as well as multirotors and helicopters. Compact in size means you can take it virtually anywhere. It features a Haptic Vibration Feedback System along with the voice and sound alert warnings. The X-Lite has the smoothest control possible with the pre-installed high precision M12 Lite hall sensor gimbals. The easy to access battery bay allows for quick, worry-free battery swaps. The X-Lite runs on the familiar OpenTX software, and the model memory is expandable with the addition of your own micro SD card. Like all of our new transmitters it has a wireless feature that lets you link up wirelessly to other FrSky radios for training; additionally, it can link up to the FrSky FreeLink App for monitoring telemetry and configuring receivers. Long range is an option with the support of the upcoming R9M Lite 915/868MHz module. Other features include Receiver Match, Real-Time Flight Data Logging and Super Low Latency for competitive flying. Overall this Radio has all the features of its predecessors in a smaller package at an unprecedented value.
Description:
Brand name: FrSky
Item name: X-Lite Radio Transmitter
Color: red, black (optional)
Number of channels: 16 channels
Weight: 308g (without battery)
Operating voltage range: 6.0 ~ 8.4V
Operating current: 190mA@7.4V
Operating temperature: -20 ~ 60℃
Backlight LCD resolution: 128*64
Model memory: 60 models (extendible by Micro/TF card)
Features:
Ergonomic and compact design
M12 Lite gimbal
Digital high accuracy hall sensor gimbal
Mode conversion adjustments accessible without disassembly
CNC machined gimbal pedestal
High-speed internal and external module digital interface
Internal: 450K, External: 420K
Super low latency (Total latency < 20ms, lowest to 12ms)
Compatible with new lite type external modules (R9M Lite, MPM Lite, etc.)
Installed open source operating system– OpenTX
Haptic vibration alerts and voice speech outputs (Headset jack and inbuilt speaker)
Internal antenna and external antenna connector
128*64 outdoor readable backlight LCD
Smart Port, Micro USB-B Port, Headset jack and TF card slot
The easily accessible battery compartment uses replaceable 18500 Li-ion batteries (*Batteries Not Included)
Trims: The four-way navigation is the trim1 ~trim2, and it will act as trim3~trim4 with pressing on 'SHIFT' button
Wireless function (Optional)
Compatible with FrSky Free Link App
Support wireless trainer system
(Need additional parts or order specific model)
Package included:
1 x Radio Transmitter
2 x 18650 Battery Black Caps
1 x Manual sheet
1 x eva case
Note: The X-LITE package doesn't include batteries inside. You can buy the batteries on the local market.
Here is the instruction for the suitable batteries of X-LITE:
18500 Li-ion Batteries
flat top
Diameter: 18mm
Height: 50mm
there should be 2 batteries and each are placed in a seperate compartment.
The batteries can not be charged inside the radio.
,
,
,
,
,
,
