Description

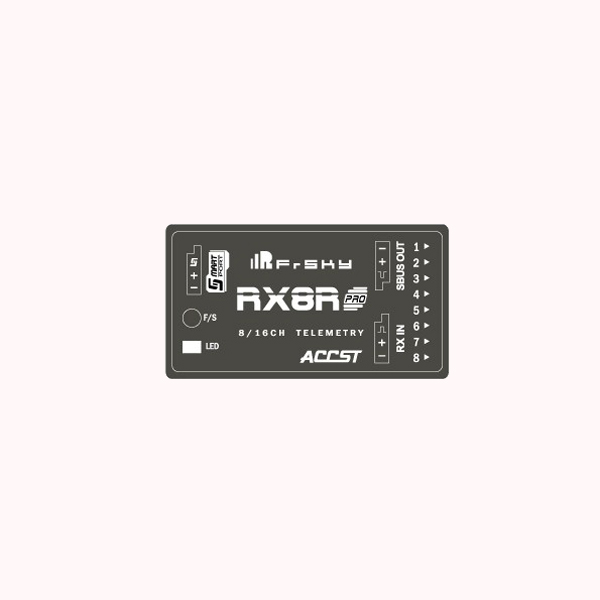

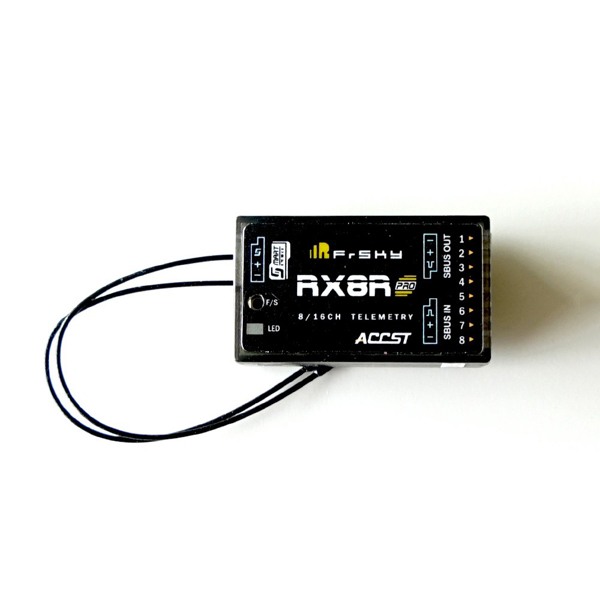

Frsky RX8R Pro 2.4G ACCST 8/16CH Telemetry Receiver With SBUS Port
An upgraded version based on the RX8R receiver, it has all the same features including redundancy. The Pro version has higher precision and lower latency. It's deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high speed mode. A feature that deserves mention is the decreased effect of interference caused by the ignition process.
Description:
Brand Name: Frsky
Item Name: RX8R Pro
Dimension: 25mm*26.6mm*14.2mm (L*W*H)
Weight: 12.1g
Numbers of Channels: 16CH(1~8CH PWM or 9~16CH PWM from conventional channel outputs, 1~16CH from SBUS)
Operating Voltage Range: 3.5V~10V
Operating Current: 100mA@5V
Operating Range: full range
Servo Frame Rate: 9ms (HS—High Speed Mode)/18ms (FS—Normal Speed Mode)
Compatibility: FrSky transmitters/transmitter modules in the D8/D16 mode
Features:
* Support redundancy function
* Smart Port enabled and support telemetry data transmission
* Higher precision deviation of PWM
* Lower latency on the PWM output
* Strong anti-interference performance
Package Included:

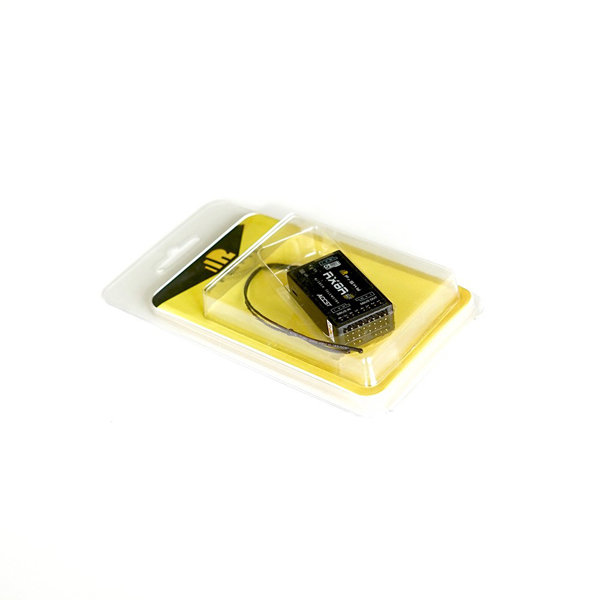

1x Frsky RX8R Pro receiver
,
,
,
,
,
