Description

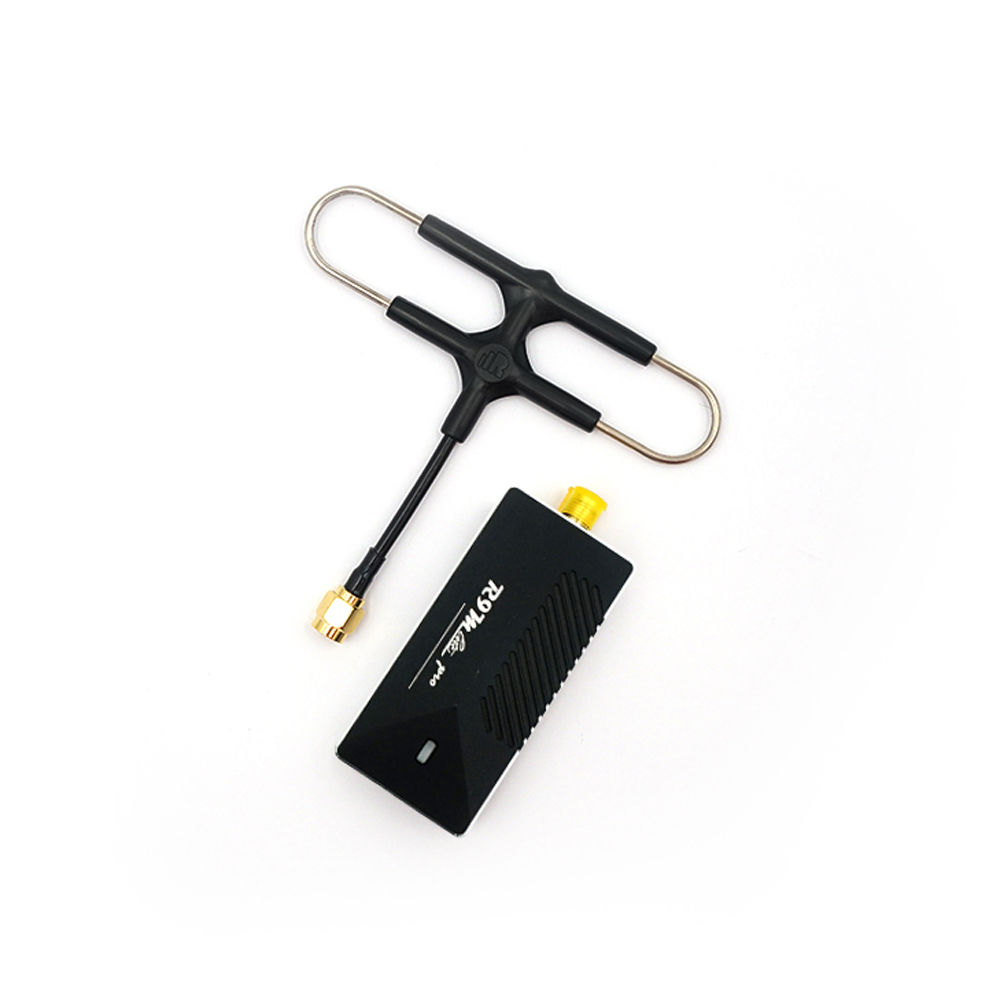

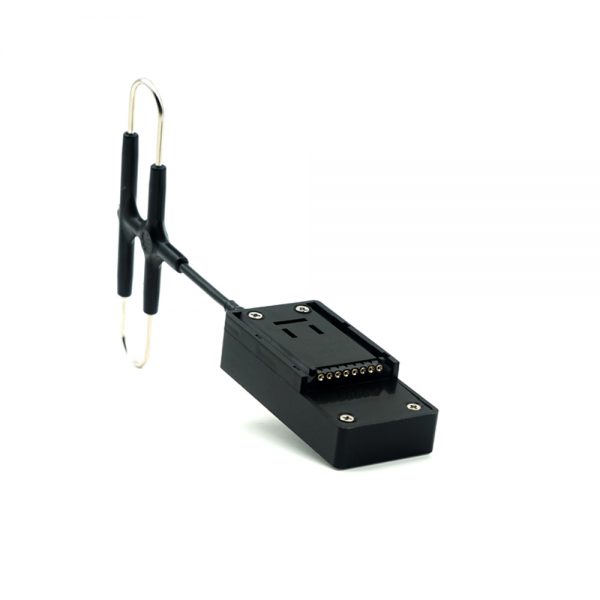

Frsky R9M Lite Pro 16CH 900MHz Transmitter Module Compatible FrSky ACCESS Protocol for Taranis X-Lite PRO and X9 Lite
Overview:
The R9M Lite Pro is the upgraded 900MHz Lite module. It has a high-speed digital interface, supports up to 1W RF power, and is fully encased in a CNC aluminum protective shell which also aids in heat dissipation when using high RF power. Designed with the new ACCESS firmware, it also supports spectrum analyzer functions. The module is perfectly compatible with FrSky new ACCESS radios like Taranis X-Lite PRO and X9 Lite.
Specification:
Dimensions: 62.4mm × 30mm × 18.4mm (L×W×H)
Weight: 34g
Channel: 16CH
RF Operating Frequency: 868MHz / 915MHz
RF Power (Non-LBT): 10mW / 100mW / 500mW / 100mW~1W (Self-adaptive)
RF Power (LBT-8CH): Telemetry mode (25mW)
RF Power (LBT-16CH): Telemetry mode (10mW/100mW/500mW/100mW~1W (Self-adaptive) / Non-Telemetry mode (200mW / 500mW)
Compatibility: R9 (ACCESS / ACCST protocol) and TD series receivers
Features:
Long range, low latency, and high precision
High-speed digital module interface
Supports spectrum analyzer function
Supports up to 1W RF power
Telemetry data transmission supported
Antenna detection with accurate SWR indicator
CNC aluminum protective shell
Perfectly compatible with ACCESS protocol and new FrSky radio models
(e.g. Taranis X-Lite PRO and new upcoming models)
Package included:
1 x R9M Lite Pro Module
