Frsky R9M 2019 900MHz Long Range Transmitter Module and R9 Slim+ Receiver with Mounted Super 8 and T antenna
Specification (Transmitter Module):
FrSky R9 and R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs to so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.
Brand: FrSky

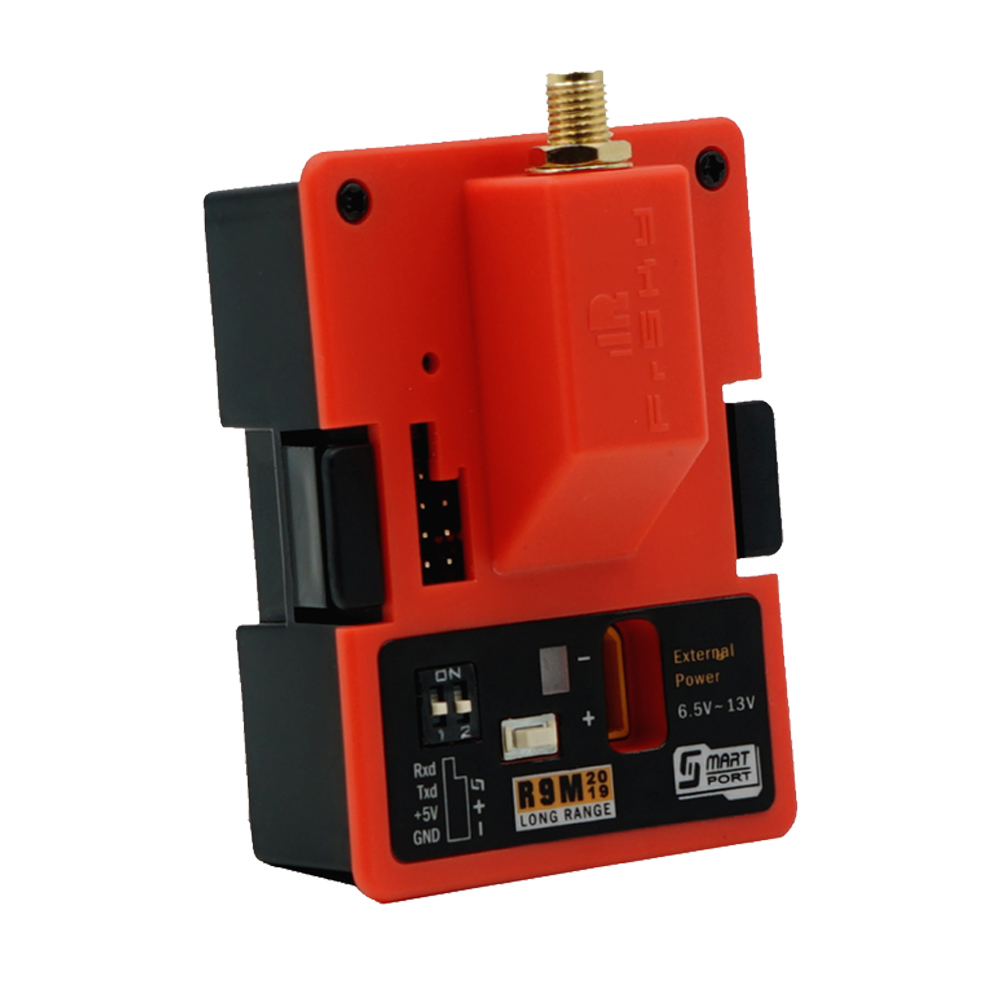

Item Name: R9M 2019 900MHz Transmitter Module
Feature :
-900MHz/868MHz Working Mode
-Long Range, Low Latency and High Precision RC System
-4 Optional RF Power (Non-EU Version)
-Telemetry Mode (25mW)/Non-telemetry Mode (200mW / 500mW) (EU Version)
-RF Power (Flex): 10mW/ 100mW/ 500mW/ 1W (telemetry supported for all levels)
-Smart Port Enabled and Support Telemetry Data Transmission
Specification (Receiver):
The FrSky R9 Slim+ receiver is the updated version of R9 Slim, with optimized performance and 2 detachable antennas. The R9 Slim+ has all the features of the R9 Slim with the flexibility to work with more external devices by incorporating the inverted SBUS and S.Port outputs.
Dimension: 30*13.5*5mm (L × W × H)
Weight: 3.2g
Numbers of channels: Up to 16 channels
With RSSI Output: Analog 0~3.3V
Operating Voltage Range: DC 3.5V~10V
Operating Current: 100mA@5V
Operating Range: Up to 10km or above
Compatibility: R9 series TX
Feature :
-900MHZ (Non-EU Version)/ 868MHZ(EU Version)
-Small and conveniently setup
-Low latency and high precision
-Support redundancy function
-Smart Port enabled and support telemetry data transmission
-Battery voltage detection
-With RSSI output
Package Included:

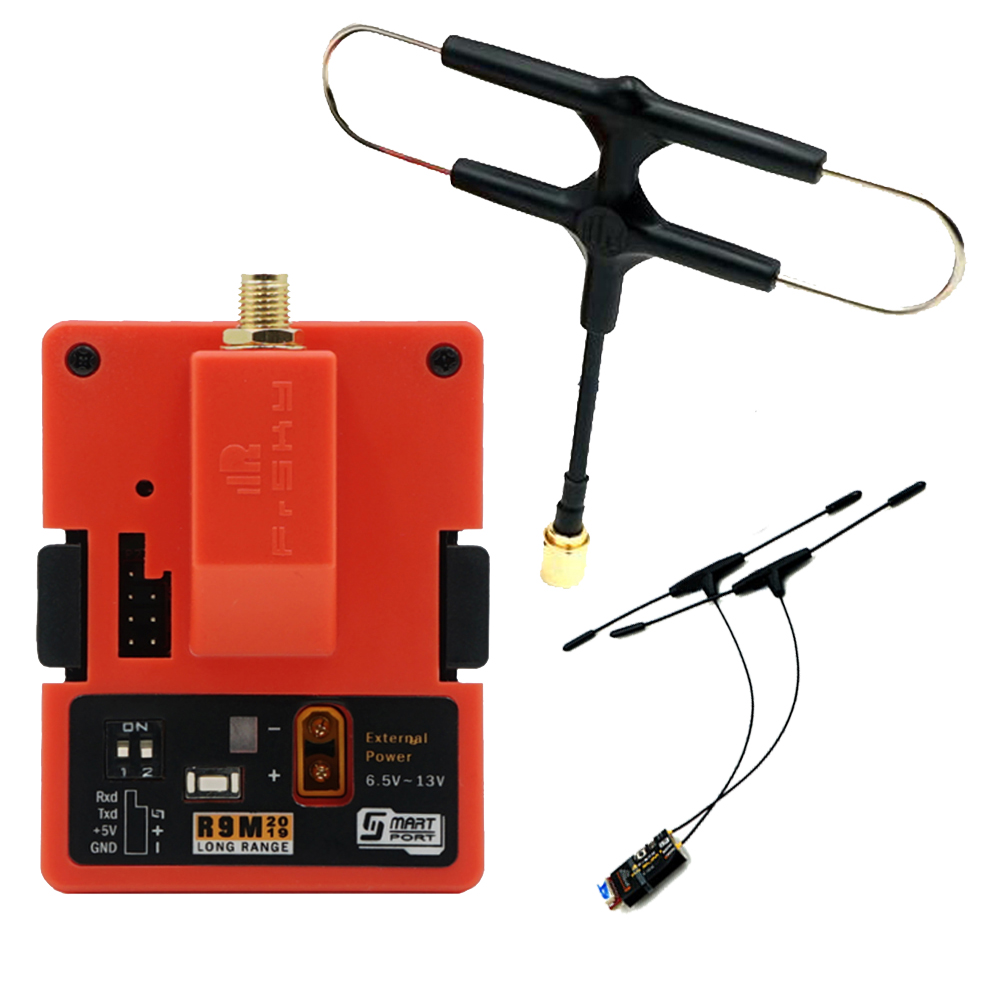

1x R9M 2019 Module with mounted Super 8 antenna

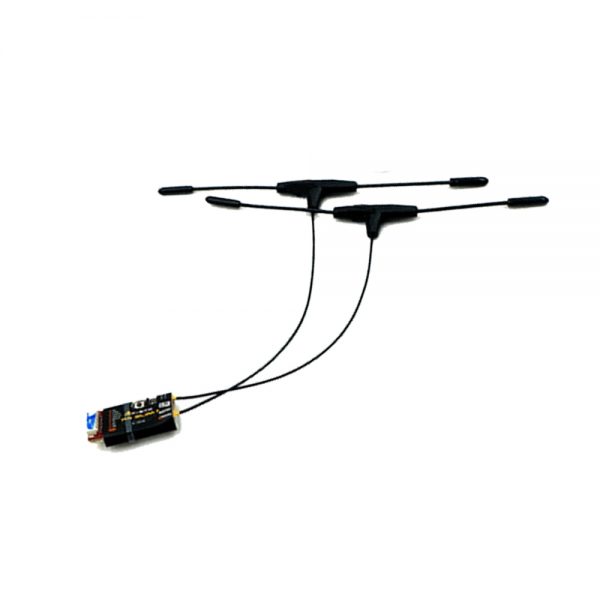

1x R9 Slim+ Receiver with mounted Ipex1 T antenna
