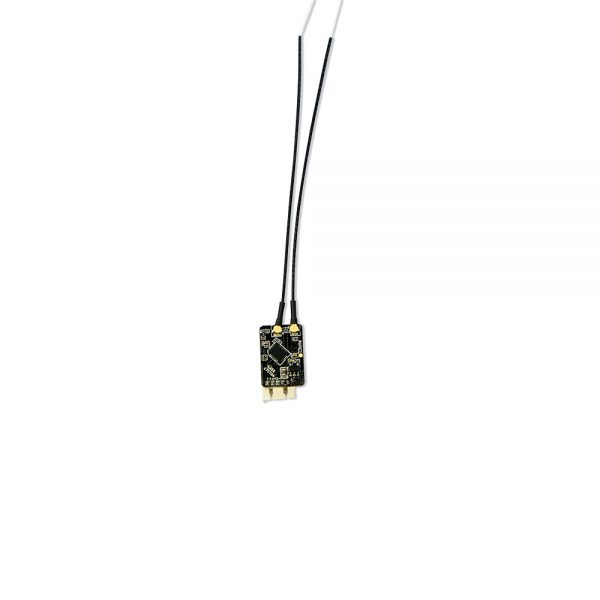

FrSky R-XSR Ultra Mini Redundancy Receiver
You can click Here to buy the original connection cable altogether.
OVERVIEW:
The R-XSR is a standalone receiver with all the functions of XSR, in addition, it’s almost 1/3 size and 1/3
weight of XSR receiver. Moreover, there redundancy function is integrated into this tiny receiver
ensures the security, and the IPEX connector makes it more convenient for you to replace antennas.
SPECIFICATION (USER MANUAL):
Dimension: 16*11*5.4mm (L*W*H)
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 4~10V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode
FEATURES:
Ultra mini size and light weight
Support telemetry and Smart Port enabled
Full range
Switchable SBUS/ CPPM signal output
Supports redundancy function
IPEX connector, replaceable antennas
Package included:
1* FrSky R-XSR receiver
