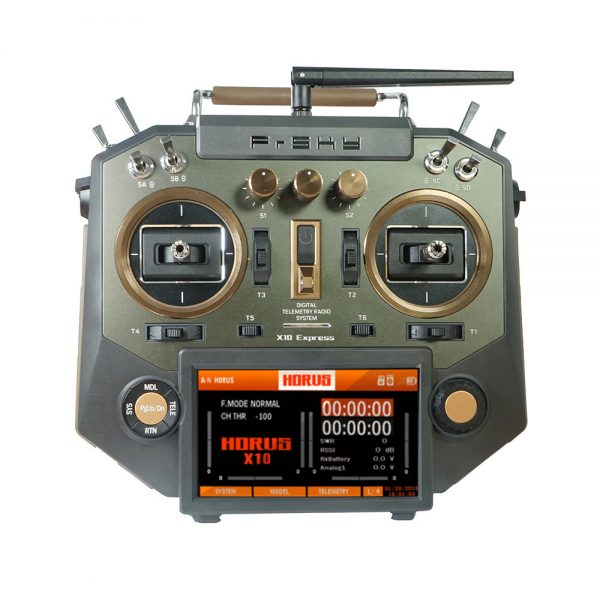

FrSky HORUS X10 Express 24CH ACCESS ACCST D16 Mode2 Transmitter PARA Wireless Training System for RC Drone
Overview:
Horus X10/S Express use the ACCESS communication protocol, it boasts 24 channels with a faster baud rate and lower latency equipped with a high-speed module digital interface. Along with the new spectrum analysis function and added FrOS/OpenTX firmware, it is now possible to check the airwaves for RF noise.
Both X10 and X10S Express support balancing charge for 2S Li-ion battery via a collateral USB cable. The accessible battery compartment design is another change worth mentioning, with two 18650 Li-ion batteries you can expect to be able to fly whole day. The Express carries forward all of their predecessor’ features like the industrial LCD color screen, and the highly-accuracy M10/MC12P hall sensor gimbals which offer the most precise control. Additionally, it features a remarkable PARA wireless trainer function which also makes them compatible with the FrSky Free Link App and AirLink S. All that makes the Express version an ideal transmitter for, gliders, helis, multirotor and every type of fixed-wing imaginable.
SPECIFICATIONS:(Manual)
Brand: FrSky
Item name: Horus X10 Express Transmitter
Dimension: 213*225*112mm (L*W*H)
Weight: 900g (without battery)
Operating system: FrOS / OpenTX
Internal RF module: ISRM-S-X10
Number of Channels: 24 channels
Operating Voltage: 6.5 ~ 8.4V (2S Li-battery)
Operating Temperature: -10℃- 60 ℃ (14℉ -140℉ )
Operating Current: 240mA@7.4V (typ)
Charging Current: ≤1A ±200mA
USB Adaptor Voltage: 5.0+0.2V
USB Adaptor Current: >2.0A
Backlit LCD resolution: 480*272
Compatibility: ACCST D16 and ACCESS receivers
FEATURES:
High-speed module digital interface with installed ACCESS protocol
Supports spectrum analyzer function
Supports wired training function
New PARA wireless training system
– High-speed training system with a lower latency
– Compatible with FrSky Free Link App and AirLink S via mobile devices
2 internal antennas and detachable external antenna
Antenna detection and SWR warning
Industrial LCD: 480*272 readable outdoor color screen
Supports 2S Li-battery balancing charge with Mini USB interface
Easily accessible battery compartment (*Batteries not included)
M10 hall sensor gimbals and extendable stick ends
Package included:
1 x Horus X10 Express Transmitter
