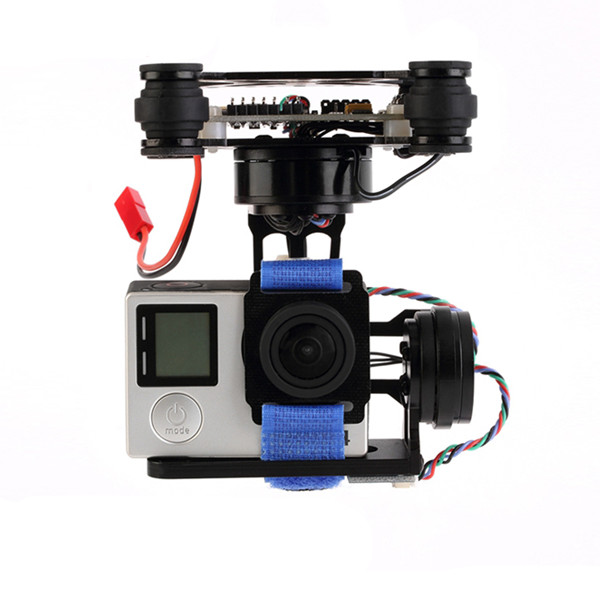

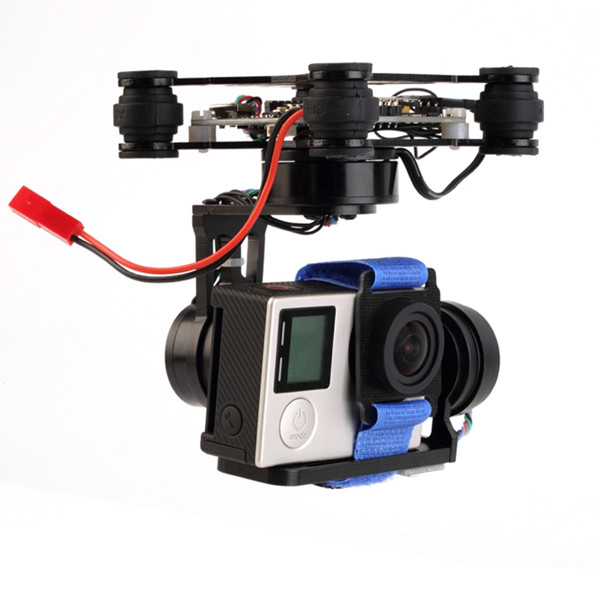

FPV 3 Axis Brushless Gimbal With Controller For DJI Phantom GoPro 3 4
Description:
Item Name: FPV 3 Axis Brushless Gimbal With Controller
Motor type: 2 x 2206 / 100T brushless motor, 1 x 2804 / 100T brushless motor
Driver board: STORM32BGC
Firmware Version: o323bgc-release-v070
Hardware version: V130
Operating Voltage: 3-4S (11.1-16.8V)
Working Current: 350mA
Joystick control angle: PITCH: -25 degrees +25 degrees / ROLL: -25 degrees +25 degrees / YAW: -90 degrees +90 degrees.
Switch Control Mode: Lock / Follow
Size: 80 x 80 x 100mm (L x W x H)
Material: CNC Metal
Weight: 180g
How to install:
1. Remove damping ball, open the top mounting plate
2. The mounting plate with a screw lock in the lower part of the aircraft
3. Install vibration ball
4. Install cameras, compact cameras with tape state
Package Included:
1 x FPV 3 Axis Brushless CNC Metal Gimbal With Controller
1 x Camera fix Strap
1 x JST plug / XH-2.54 Plug
1 x 5pin cable connector
1 x Screw set
