Description
Specification:

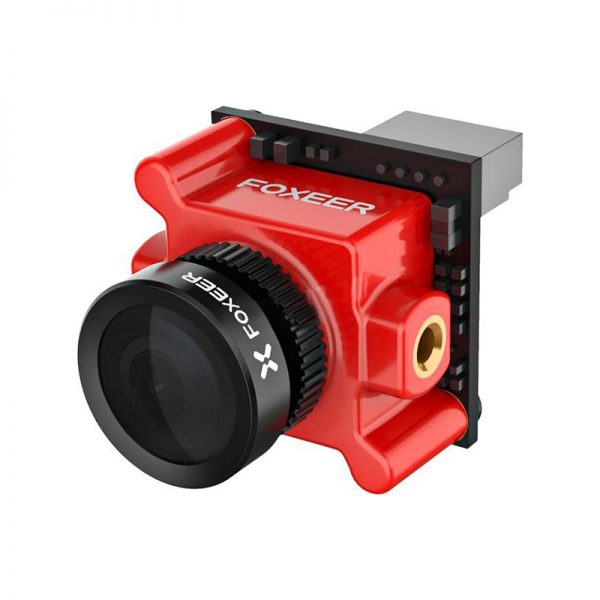

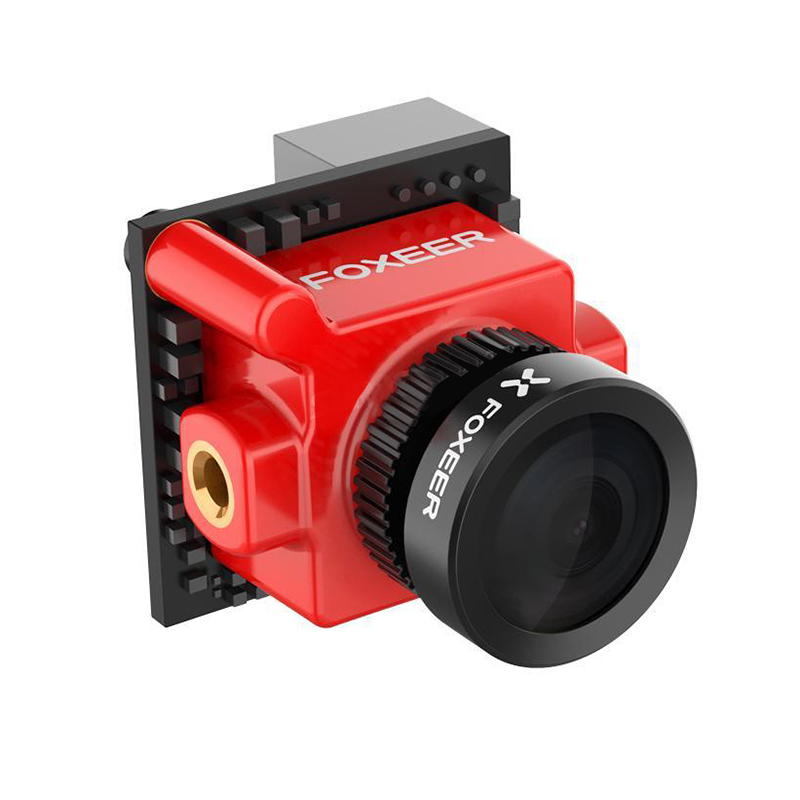

Model: Foxeer Monster Micro Pro
Image Sensor: 1/2.9” CMOS
Resolution: 1200TVL
TV system: PAL/NTSCswitchable
CVBS: 16:9
Total Pixels: 1280(H)×960(V)
Audio: No
Min. illumination: Color: 0. 05Lux; BW: 0.001Lux(F1.2,50IRE,AGC ON)
OSD programming board: Support
Image Adjustment: Support
OSD: No
BLC/HLC: Support
WDR: Support
S/N: > 50dB
White Balance: Auto
Day / Night Shift: Auto/ External control/ Color/ B&W
Private shading: Support
Lanuage: Chinese/English
Video Out: 1.0Vp-p, 75Ω
Input Power: 5V-40V
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~60℃
Power consumption: 70mA
Dimension: 18.6mm*19mm
Weight: 6.1g (bracket excluded)
Package included:
1X Foxeer Monster V2
1 x Manual
1X OSD board
1X Servo Cable
1X bracket
· Screws
,
,
,
,
,
