Description

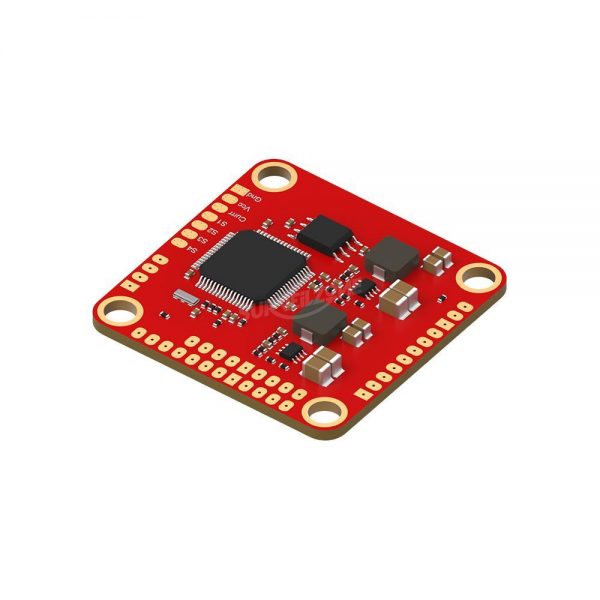

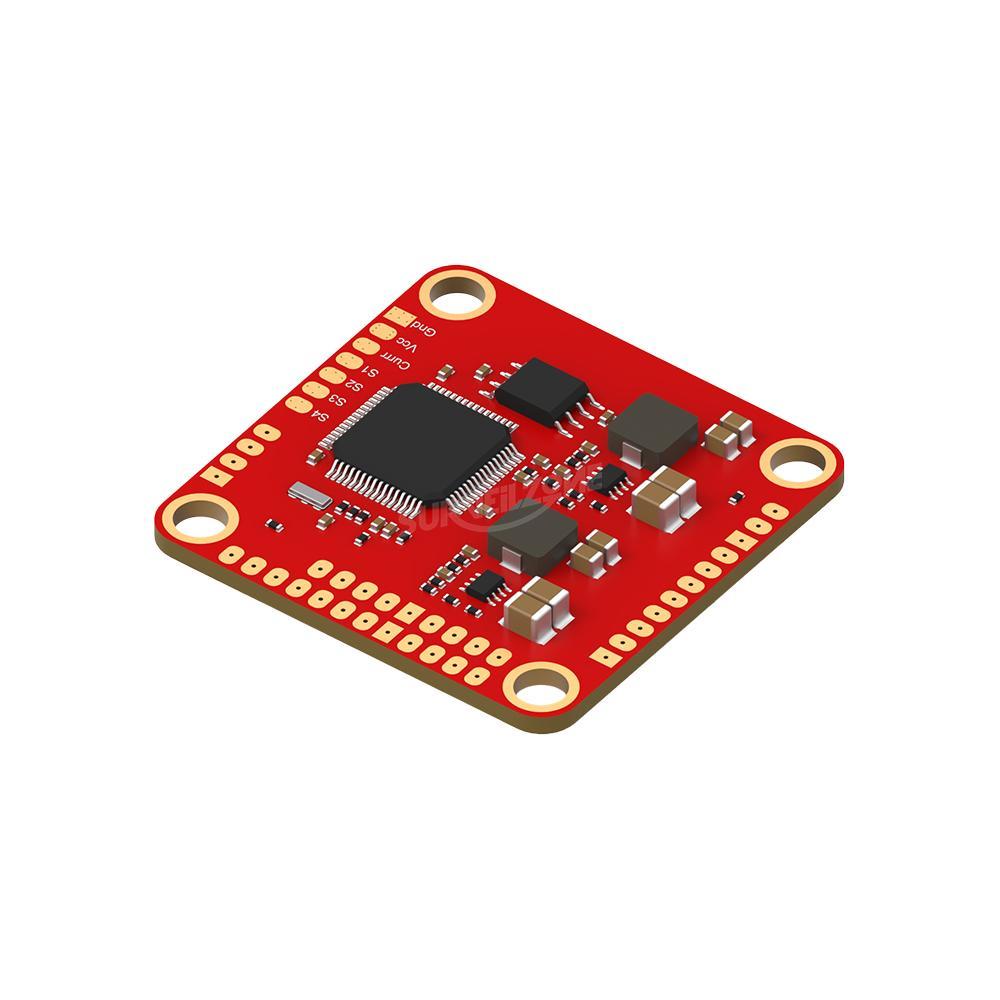

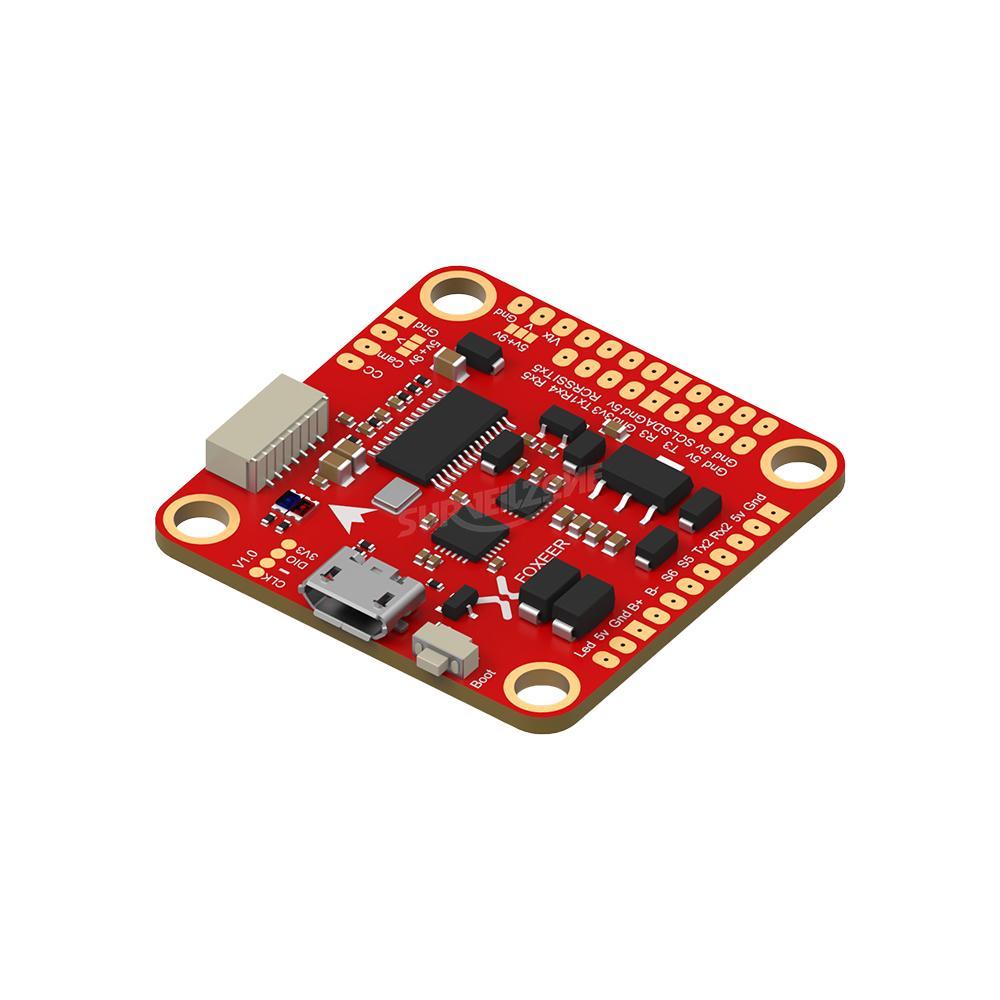

Foxeer F722 Dual Flight Controller STM32F722RGT6 MPU6000 and ICM20602 OSD for RC FPV Racing Drone
Specification:
Brand name: Foxeer
Item name: F722 Dual Flight Controller
Processor: STM32F722RGT6
Dual Gyro: MPU6000 and ICM20602 (32K)
Memory: 16MB
Voltage regulator: 5V/2A 9V/1.5A
OSD Superposition: support
Input: 3-6S (10-30V)
Firmware: FOXEERF722DUAL
Uart: 5 ports
Size: 36*36mm φ4mm
Hole to Hole: 30.5*30.5 φ4mm
Features:
-Dual Gyroscopes MPU6000 and ICM20602 built in to give both smooth and high-speed flying experience
-Latest STM32F722RGT6 Processor with wide 3-6S input
-Support both soldering pad and plug to ESC
-Support both 4 in 1 and Single ECS connection
Package Included:
1 x F722 Dual Flight Controller
