Description
Description:
Brand Name: Foxeer
Item Name: Arrow Mini Pro
Lens: 1.8mm
System: PAL, NTSC (optional)

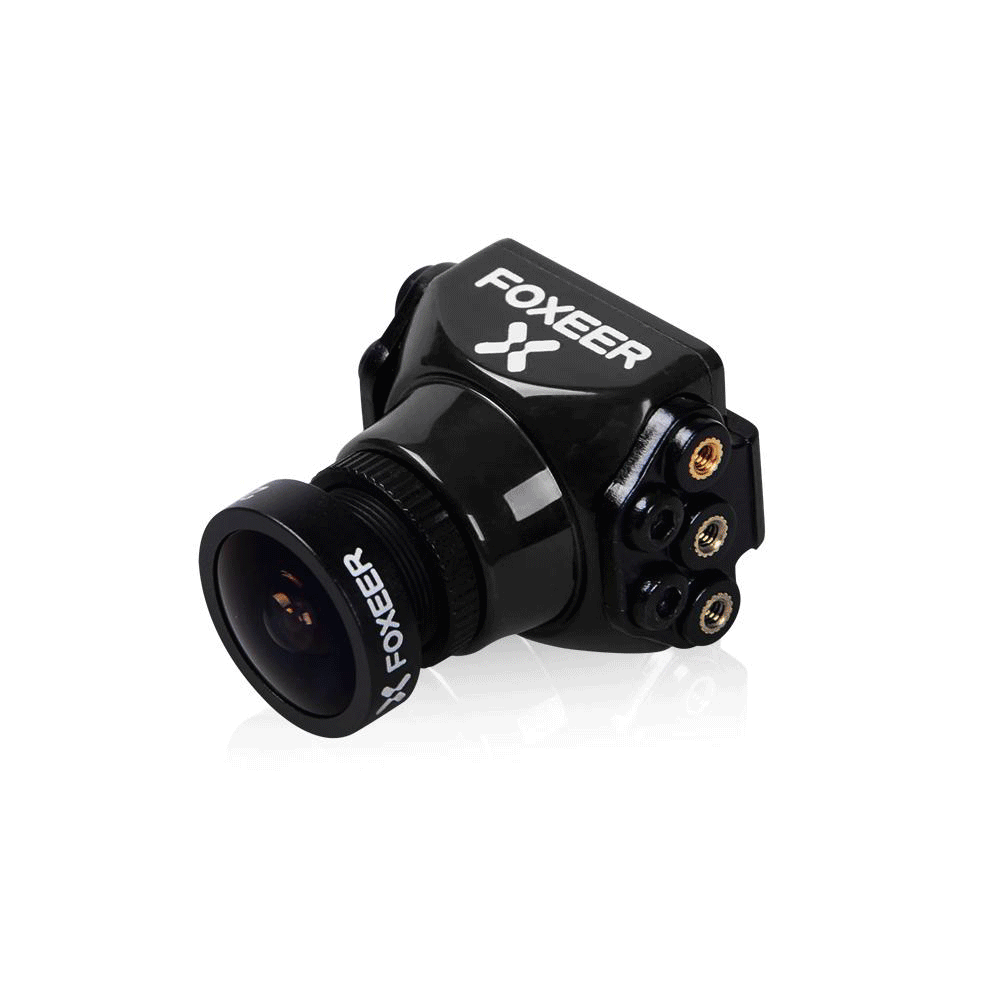

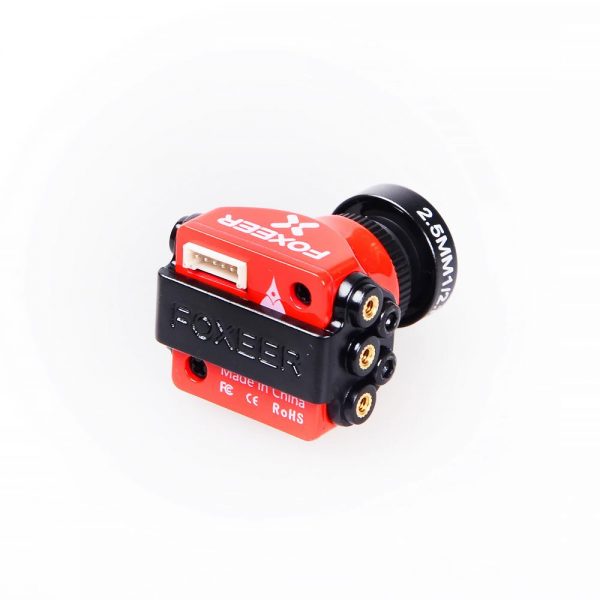

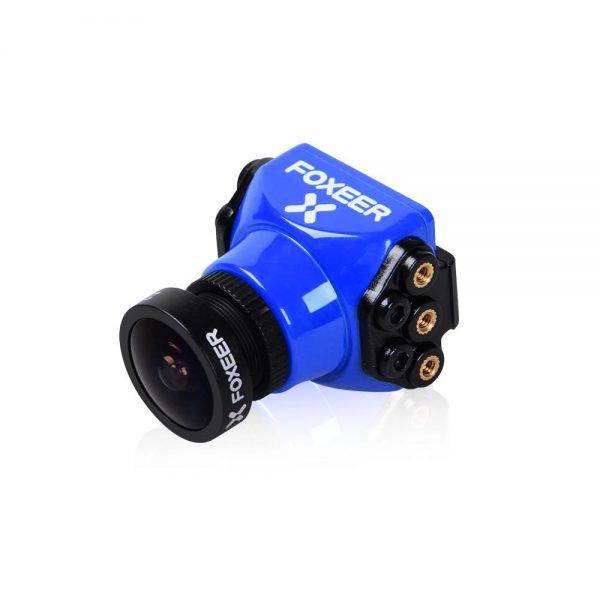

Color: Black. Red, Blue (optional)
Mode: IR Block
Specifications:
| Solution | 1/3'' Sony SUPER HAD II CCD+Nextchip 2040 DSP |
| Pixel | PAL: 976(H)x494(V); NTSC: 768(H)x494(V) |
| TV System | PAL/NTSC (based on country) |
| Resolution | 600TVL(color), 650TVL(B&W) |
| Synchronization | internal |
| Min. Illumination | 0.01Lux |
| WDR | Support |
| OSD Programming Board | Support |
| White Dot Repair | Support |
| DNR | 2D DNR |
| Camera Title | Support |
| Image Adjustment | Support |
| OSD | Edit Name, Power, Flying Time |
| Input Power | 5 – 40V |
| Storage Temperature | -20℃ ~ 60℃ |
| Working Temperature | -20℃ ~ 50℃ |
| Power Consumption | 75mA/12V, 166mA/5V |
| Low Voltage Alarm | Support |
| Preset Mode | DEF, Vivid, Cloudy, Sunny, LED TR, User1 |
| Size | 21.8×21.8mm |
| Weight | 8.7g(excluding bracket) |
Features:
– Upgraded on Image, lighter color, more natural image, better saturation.
– Easy switch preset mode: DEF, Vivid, Cloudy, Sunny, LED TR, User1
– With a functional bracket let Mini size enlarge to Arrow size.
– Great WDR function,brilliant image quality.
– Support 5~40V input voltage.
Pacakge Included:
1x Foxeer Arrow Mini Pro 1.8mm FPV Camera
1x OSD Board
1x Servo Cable
2x Bracket
1x Screws set
1x Manual
