Description

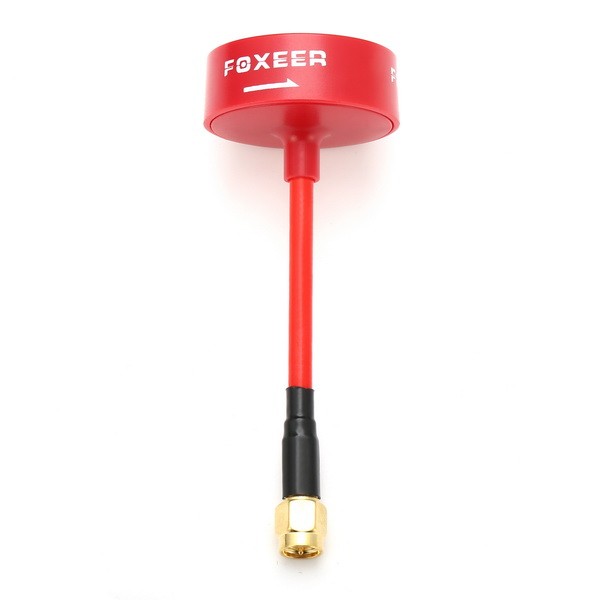

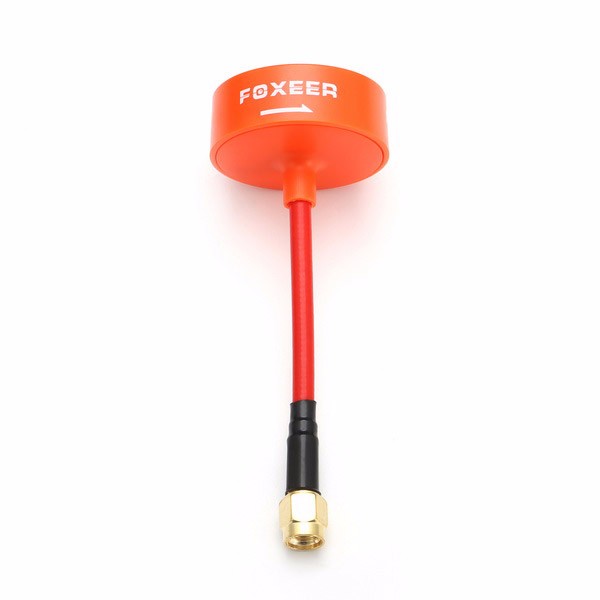

Foxeer 5.8G 3dBi TX/RX RHCP Omni FPV Antenna RP-SMA/SMA
Specification:
Brand: Foxeer
Item name: 5.8G 3dBi Antenna
Brand: Foxeer
Item name: 5.8G 3dBi Antenna
Gain: 3DBi
SWR: <1.5
Weight: 12g
Material: Cu
Pattern: omni
Max power: 50W
Resistance: 50Ω
Polarization: RHCP
Connector: RP-SMA / SMA
Color: Green,Orange,Black,Red
Color: Green,Orange,Black,Red
SWR: <1.5, Tuned for 5600~5950Mhz
Frequency range: 5600-5950 MHz
3dB horizontal lobe width: 360°
3dB verticle lobe width: 120°
Lightning protection: DC Grounded
Size: 105×35mm (feeder line 75mm)
Feature:
Foxeer 5.8G omni antenna, can be used both at VTx antenna and VRx antenna
Foxeer 5.8G omni antenna, can be used both at VTx antenna and VRx antenna
Package Included:
1 x Antenna
