Description

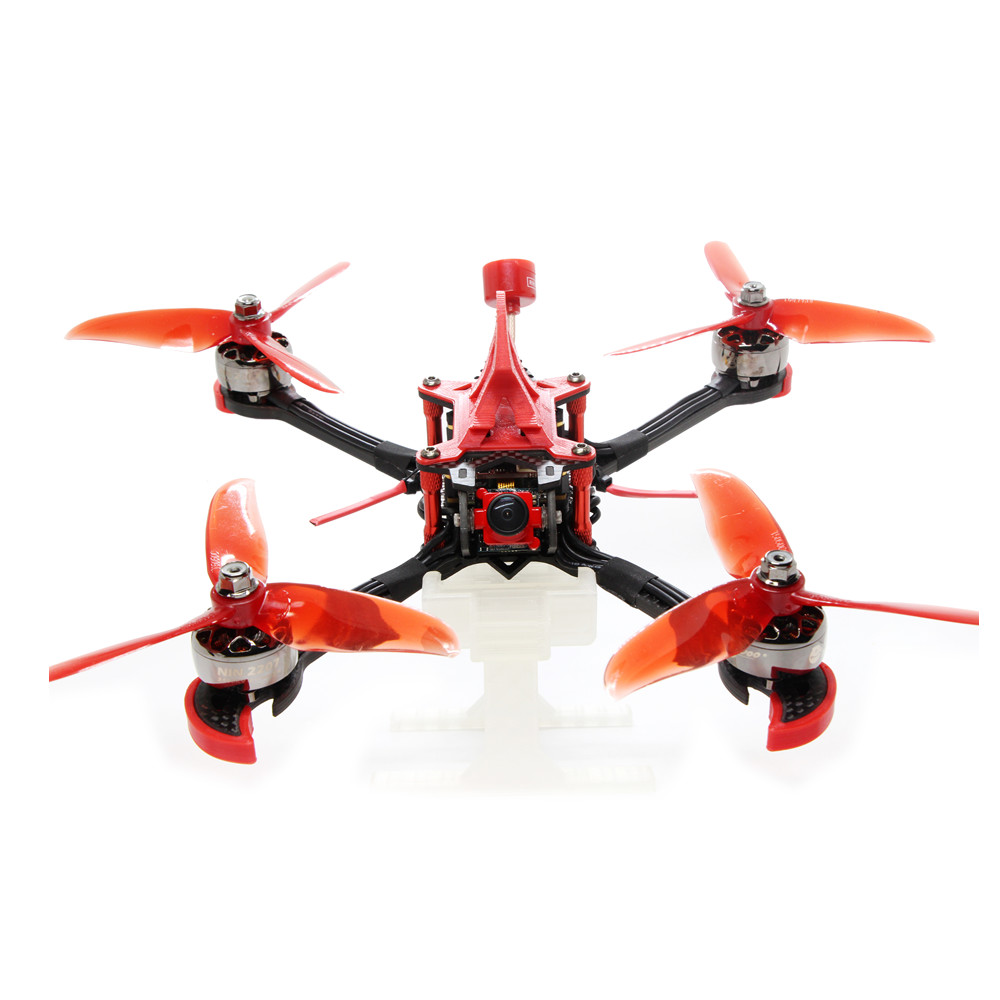

FLYWOO Vampire 230mm F4 2207 1750KV 6S / 2450KV 4S FPV Racing Drone PNP BNF
Specification:
Brand Name: FLYWOO
Model: Vampire
Item Name: 230mm F4 2207 1750KV 6S / 2450KV 4S FPV Racing Drone
KV: 1750KV @ 6S / 2450KV @ 4S
Version: PNP ( Without Receiver) / BNF ( with Frsky XM+ Receiver)
Drone Wheelbase: 230mm
Material: 3K Carbon Fiber
Arm Plate Thickness: 5mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Battery: NOT Included
Weight: 289g ( without battery or props)
| F405 Flight Controller | Brand Name: Flywoo Model: F405 MCU: STM32F405RGT6
GYRO: MPU6000
BARO: BMP280
FLASH: 16M
BEC: 5V 1.5A/9V 1.5A
Input Voltage: 3-8s
Firmware: Betaflight_3.5.7_FLYWOOF405
SIZE: 36*40mm
Hole: 30.5*30.5-3mm
Weight: 8.3g
|
| 50A Pro BL_32 4in1 ESC |
Item Name: 50A Blheli_32 2-6S 4 In1 Brushless ESC
Version: Titanium Version
Peak Current: 60A
Input Voltage: 2-6S
Firmware: BLheli_32
BEC: NO
Weight: 18g (including heatsink)
Mounting Hole: 30.5×30.5mm ( M3)
Support Telemetry /Current Meter – Support Oneshot, Multishot, DShot150/300/600 and DShot1200 |
| NIN 2207 1750KV/ 2450KV Motor |
Brand Name: FLYWOO
Model: NIN N2207 Input Voltage: 2-6S Stator Diameter: 22 mm
Stator Height: 7 mm
KV: 1750 @ 6S /2450 @ 4S ( Optional)
Bearings: NSK
Wire Length: 150 mm
Shaft Size: M5
Mounting Screw Pattern: 16×16 mm
Weignt: 33.5g
|
| DALProp T5050C 3-Blade Propeller | Brand Name: DALProp Model: T5050C Mouting hole: 5mm Quantity: 4 CW + 4 CCW Color: Red |
| 5.8G 25/200/600mW VTX | 5.8Ghz 0/25/200/600mW IRC-Control |
| Foxeer Arrow Mini Pro FPV Camera | Brand Name: Foxeer Model: Arrow Mini Pro Lens: 1.8mm Resulution: 650TVL WDR: Support OSD Programming board: Support |
| Receiver | PNP Version: Without Receiver BNF Version: With Frsky XM+ Receiver |
Package Included:
1x FLYWOO Vampire 230mm FPV Drone
1x Battery Strap
1x bag of 3D Printed Parts
