Description
FLYWOO Power Hub-LED REV1 PDB Built In 5V 9V 2A BEC WS2812 LED 3-8S For RC Drone FPV Racing Multi Rotor

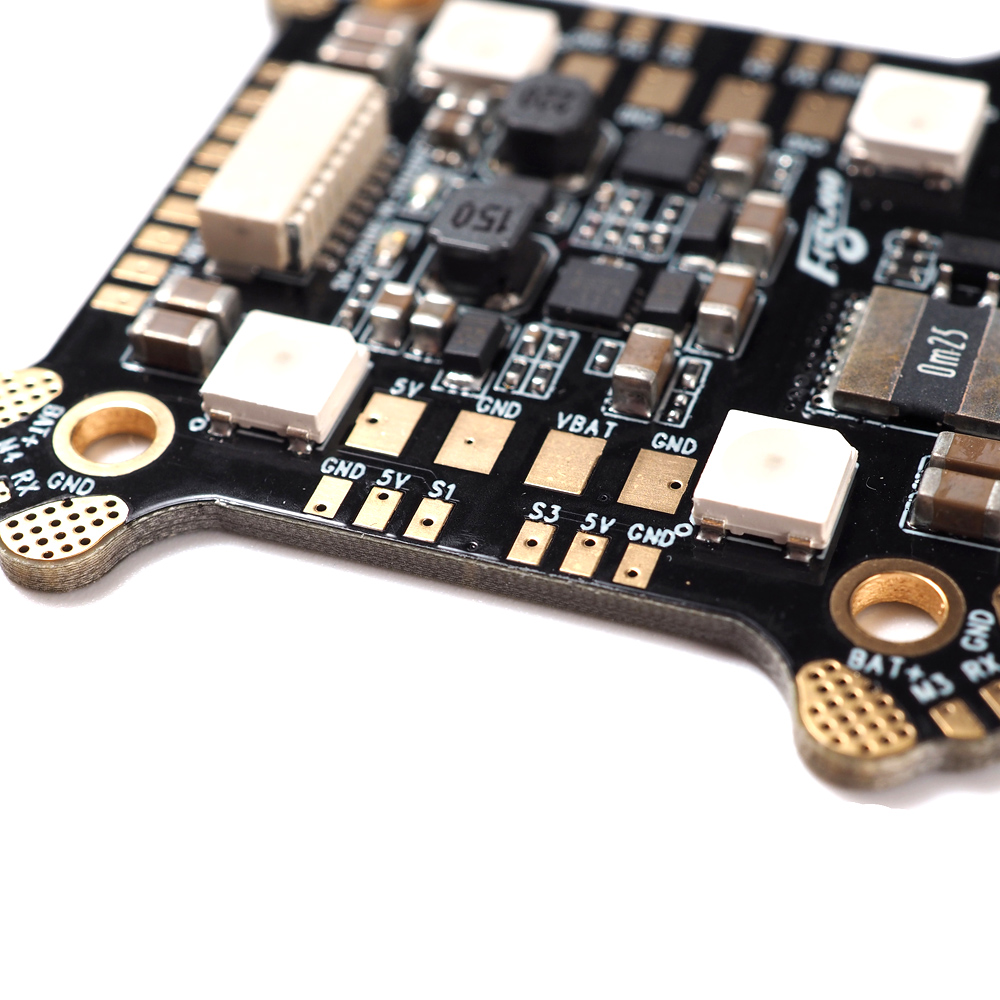

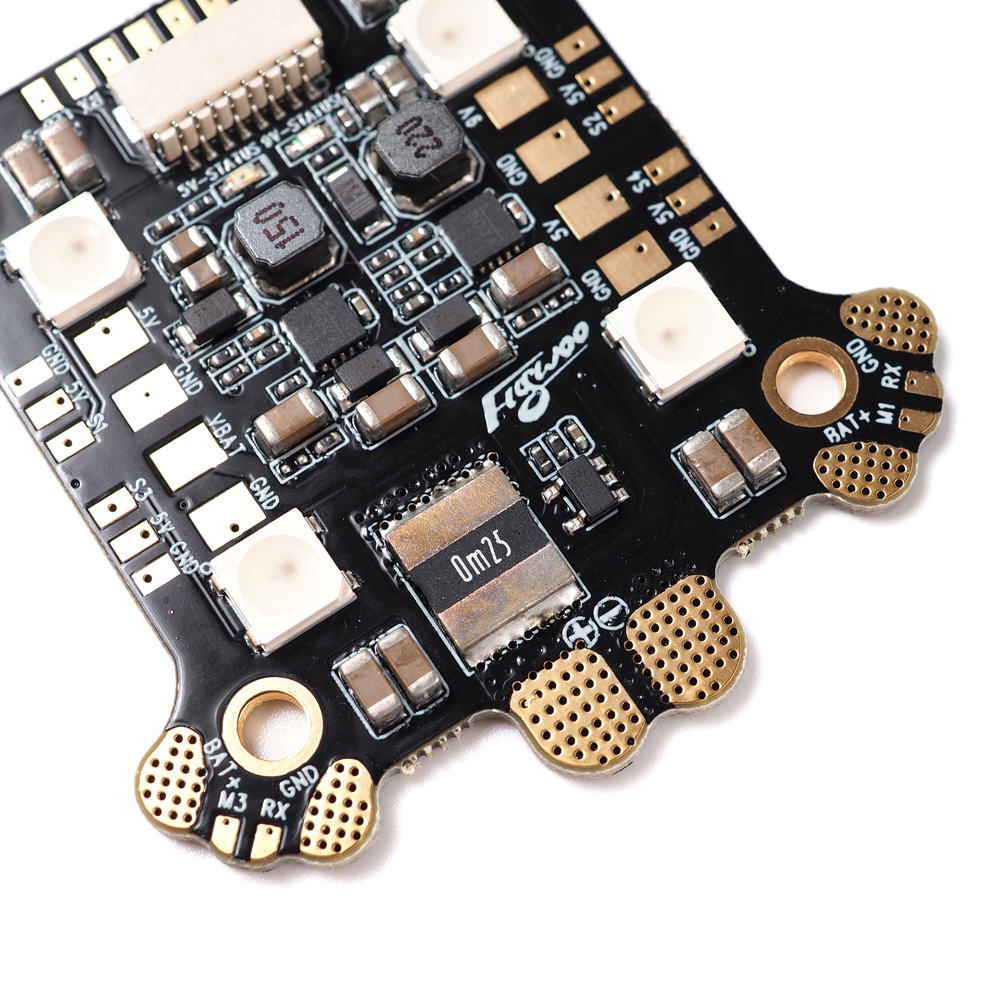

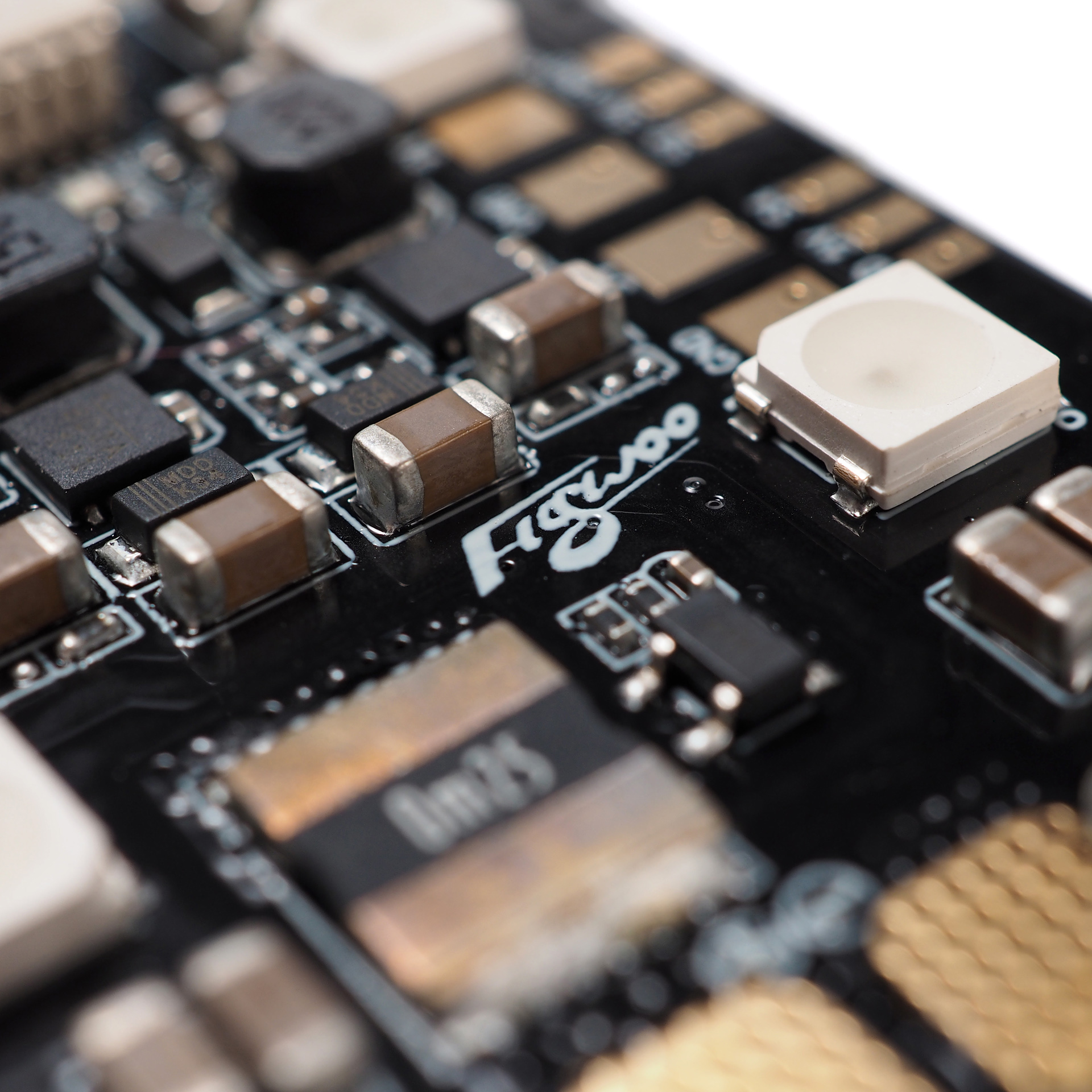

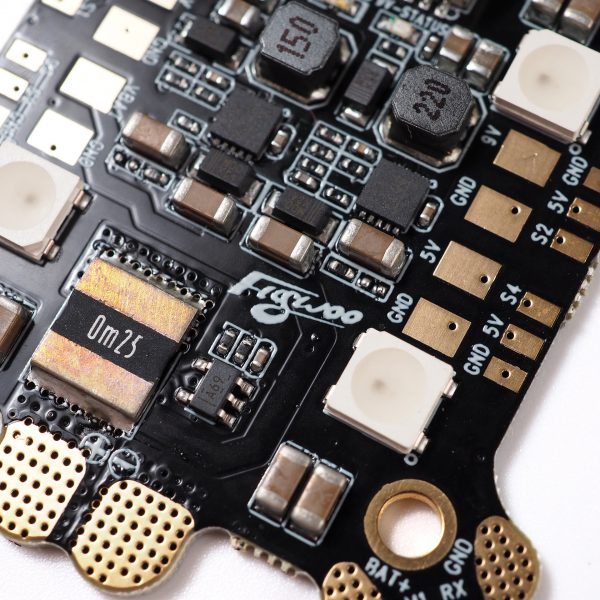

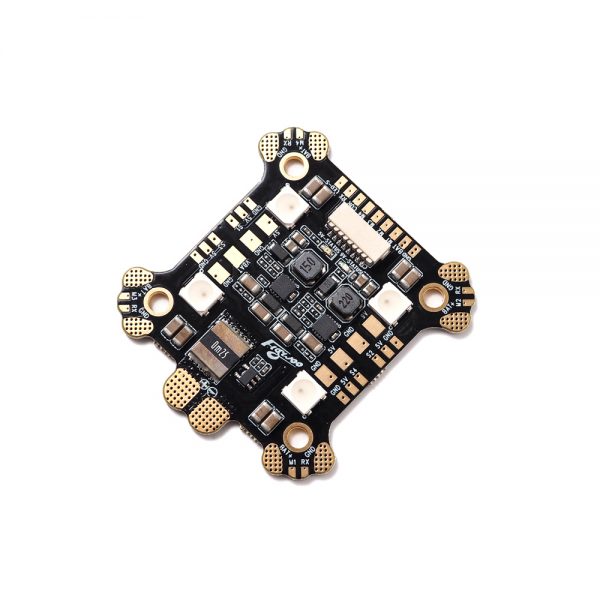

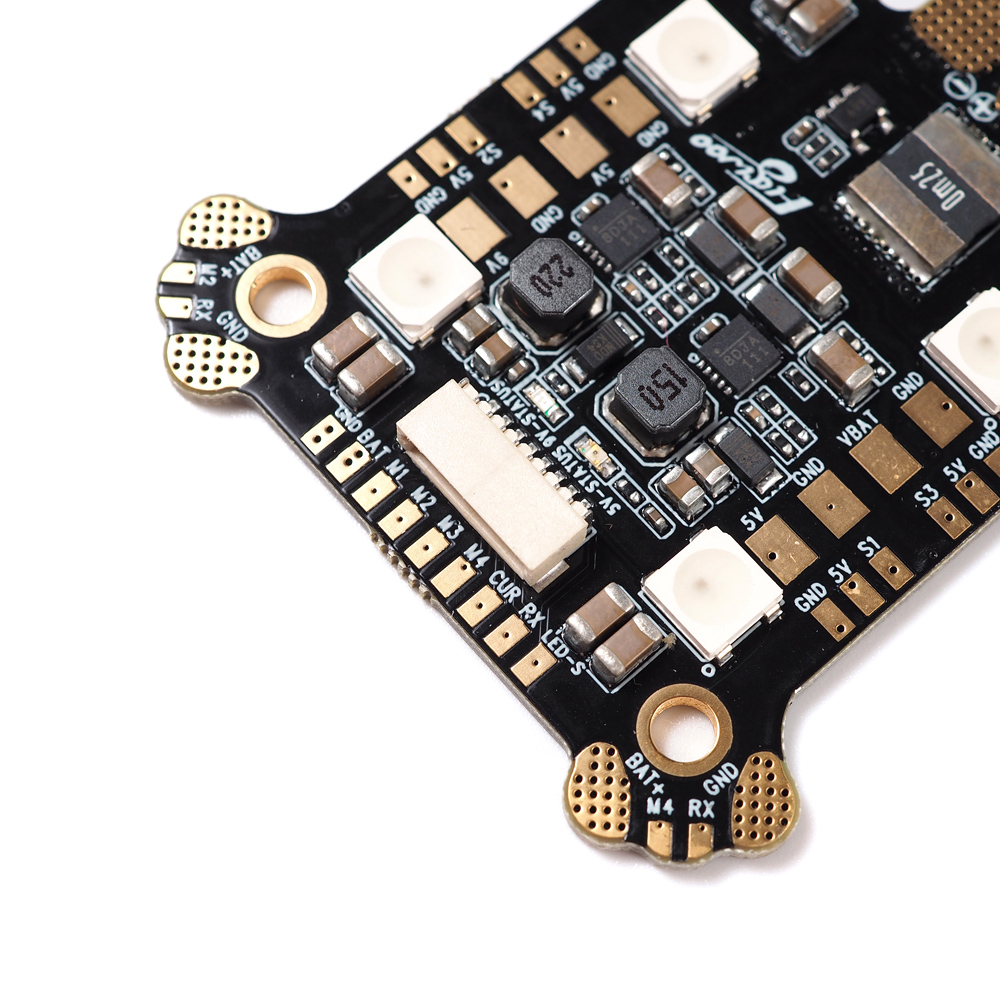

FLYWOO Power Hub-LED Rev1 Board with built-in 4 sets of WS2812 lamp beads has unique design, user-friendly layout and stable high-performance dual DCDC module while supporting high voltage and high current. These make the board shine colorfully.
The 4 sets of pads which connect external lamp beads are convenient for DIY to connect multiple sets of LED lights.
5V and 9V 2A high-performance DCDC power supply module, cleaner and more stable BEC and built-in current sensor can communicate directly with flight controller.
PCB board which consists of 6-layer 4OZ copper ensures stability of high current.
It offers pad communication mode and socket communication mode to communicate with the flight controller.
Description:
Brand name: FLYWOO
Item name: Power Hub-LED Rev1 PDB
Size: 44.7*47.8mm
Hole: 30.5*30.5mm, φ3mm
Weight: 10g
BEC: 5V 2A/9V 2A
Input voltage: 3-8S
Max Current: MAX 200A+
PCB: 6 layer-4oz
Features:
5V/9V 2A BEC output
Max voltage 50V input
Build in current sensor
Build in 4*WS2812 LED & Pads
Package included:
1 x FLYWOO Power Hub-LED Rev1
1 x 8PIN SH1.0 connector
1 x Rubycon 35V 470uf capacitor
